680 High Clearance Sprayer - Operation Instructions
Section B
Rinse Agitation System
Rinsing the agitation plumbing is achieved via the following
steps:
1. Close
all valves.
2. Open
the clean water rinse valve.
3. Power ON the liquid pump of the trailer sprayer.
4. Open the agitation valve.
5. Run for 15-30 seconds to thoroughly rinse the
insides of the agitation plumbing.
6. Close
the clean water rinse valve.
7. Power OFF the liquid pump of the trailer sprayer.
8. Close
the agitation valve.
Rinse Solution Tank
Rinsing the solution tank with clean water is accomplished
via the following steps:
1. Close
all valves.
2. Open the clean water rinse valve.
3. Open
the rinse ball valve.
4. Power ON the liquid pump of the sprayer.
5. Run for 15-30 seconds to thoroughly rinse the in
sides of the solution tank.
6. Power OFF the liquid pump of the trailer sprayer.
7. Close
the clean water rinse valve.
8. Close
the rinse ball valve.
Only you, the operator can determine the length of time
required to completely rinse all chemical residue from
the sprayer tanks and plumbing systems.
IMPORTANT
IMPORTANT
Turn off a hydraulically driven centrifugal pump using the “float” posi-
tion of the tractor’s hydraulic valve. This allows the motor to stop
slowly helping to protect the motor and motor seals.
9
Section B
IMPORTANT
Turn off a hydraulically driven centrifugal pump using the “float” posi-
tion of the tractor’s hydraulic valve. This allows the motor to stop
slowly helping to protect the motor and motor seals.

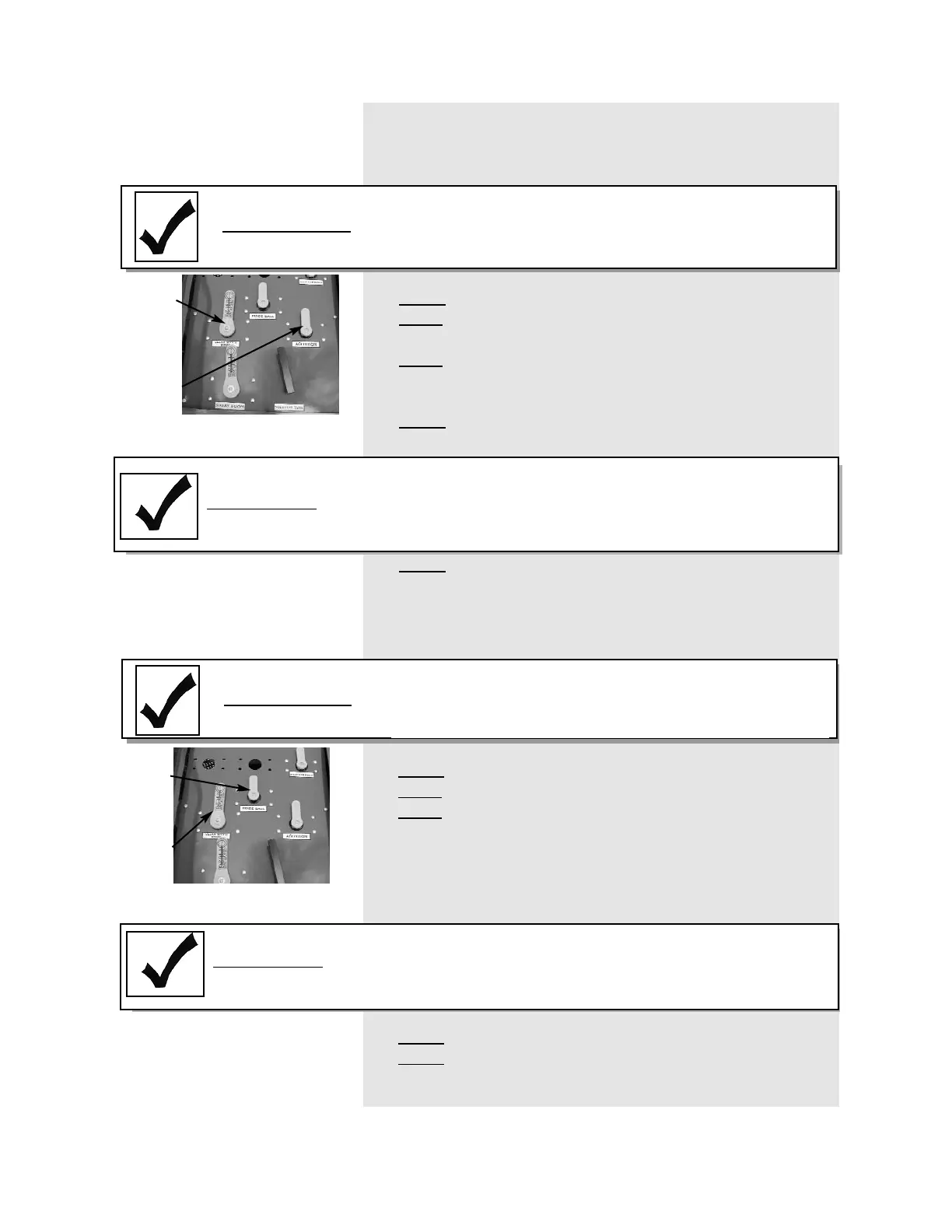

Valve Enclosure
All valves in closed position
Clean Water
Rinse Valve
Agitation
Valve
Valve Enclosure
All valves in closed position
Clean Water
Rinse Valve
Rinse Ball
Valve
Only you, the operator can determine the length of time
required to completely rinse all chemical residue from
the sprayer tanks and plumbing systems.
IMPORTANT
