11-01

Boom Adjustment

Center Section Springs

Redball

assembles the center section springs so the

compression length is the same from the center tab on

both sides. Generally no further adjustment is needed.

If you feel the boom movement is following the move-

ment of the frame too closely, loosen the springs the

same amount on each side. Continue to do this until the

movement of the boom is independent of the frame.

There is no set specification of this spring length and

boom movement.

Boom and Parallel Arm Lubrication

The boom will follow the movement of the frame more if

the boom is not allowed to move independently. Refer to

Section E of this manual for lubrication points on the

boom and parallel arms. Make sure these points are

lubricated to allow free movement of the boom.

680 High Clearance Sprayer - Connection & Startup

Section C

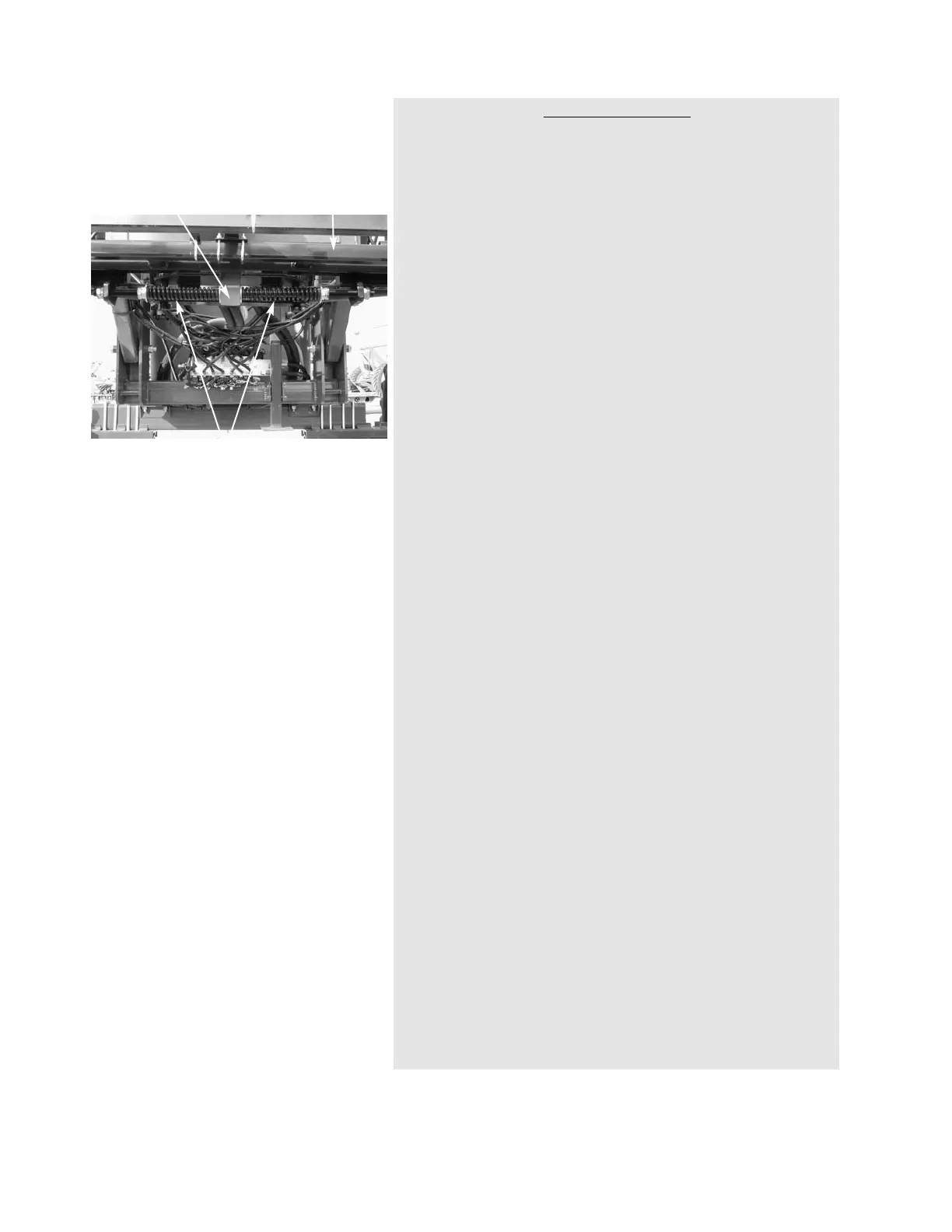

Boom Center Section Springs

Rear View

Center Tab

Boom Center Section

Section C
