Solution Spray Control System
See the controller manufacturer’s manual for operation
instructions.
Light and Marking System
The light system on the sprayer works with the tractor’s
light sytem. Amber lights flash in unison with the tractor
amber flashing lights. If a turn is not being signaled both
amber lights flash. When the operator signals a right
turn with the tractors turn signal switch, the left amber
light stops flashing and remains on and the right amber
flashes at the same flashing rate as the tractors right
amber turn light. If a left turn is signaled the opposite
takes place.
Red taillights also follow the tractor lights in their func-
tion. If road lights are on and the taillights of the tractor
are lit, the red taillights will be lit on the implement. In a
turn, the red, high intensity portion of the taillight will
come on. As with the amber, in a right turn the left red,
high intensity portion of the taillight will remain on and
the right taillight flashes at the same rate as the tractors
red turn signal light. If a left turn signal is turned on the
opposite takes place. In a turn situation, this lighting sys-
tem produces the effect of a vehicle braking and turning
in the direction of the flashing light. The turn signal mod-
ule, "The Black Box", produces the turn signal/stop effect
with the red lights. See Section F for the location of this
module.
The light and marking system also incorporates reflective
decals front and rear of proper size and location for night
travel and fluorescent decals of proper size and location
for daylight travel.
Foam Marker (Optional)
Refer to Foam Marker Parts and Operator’s Manual,
L-20095 for operational instructions.
15
Section B
680 High Clearance Sprayer - Operation Instructions
Section B

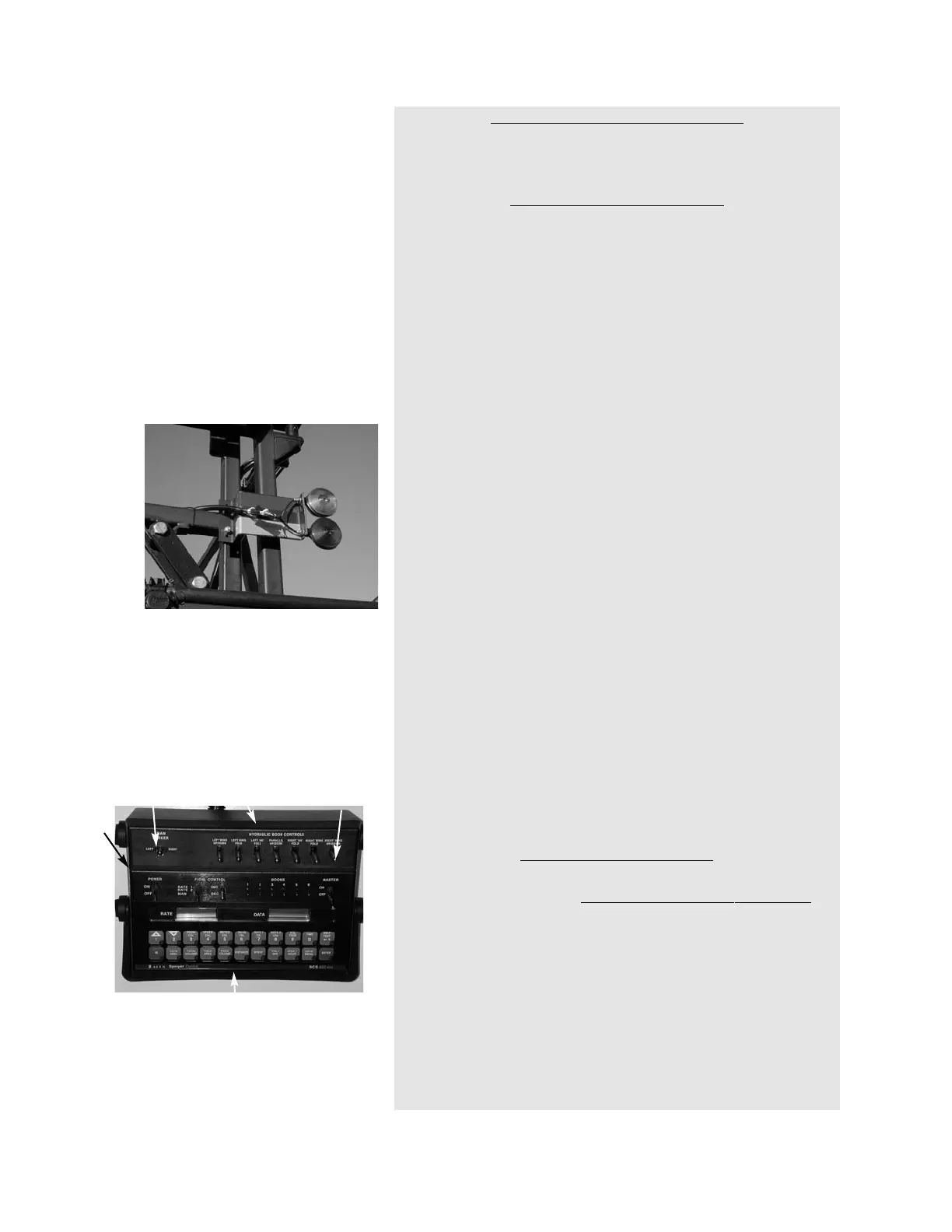

Raven Solution Spray Controller
(optional)
Directional
Stack
Controller
Bracket
Hydraulic
Boom
Control
Switches
Foam Marker
Switch
Lights and Rear Facing Reflective
and Florescent Decals
To Next Page
