11-01
680 High Clearance Sprayer - Operation Instructions
Section B

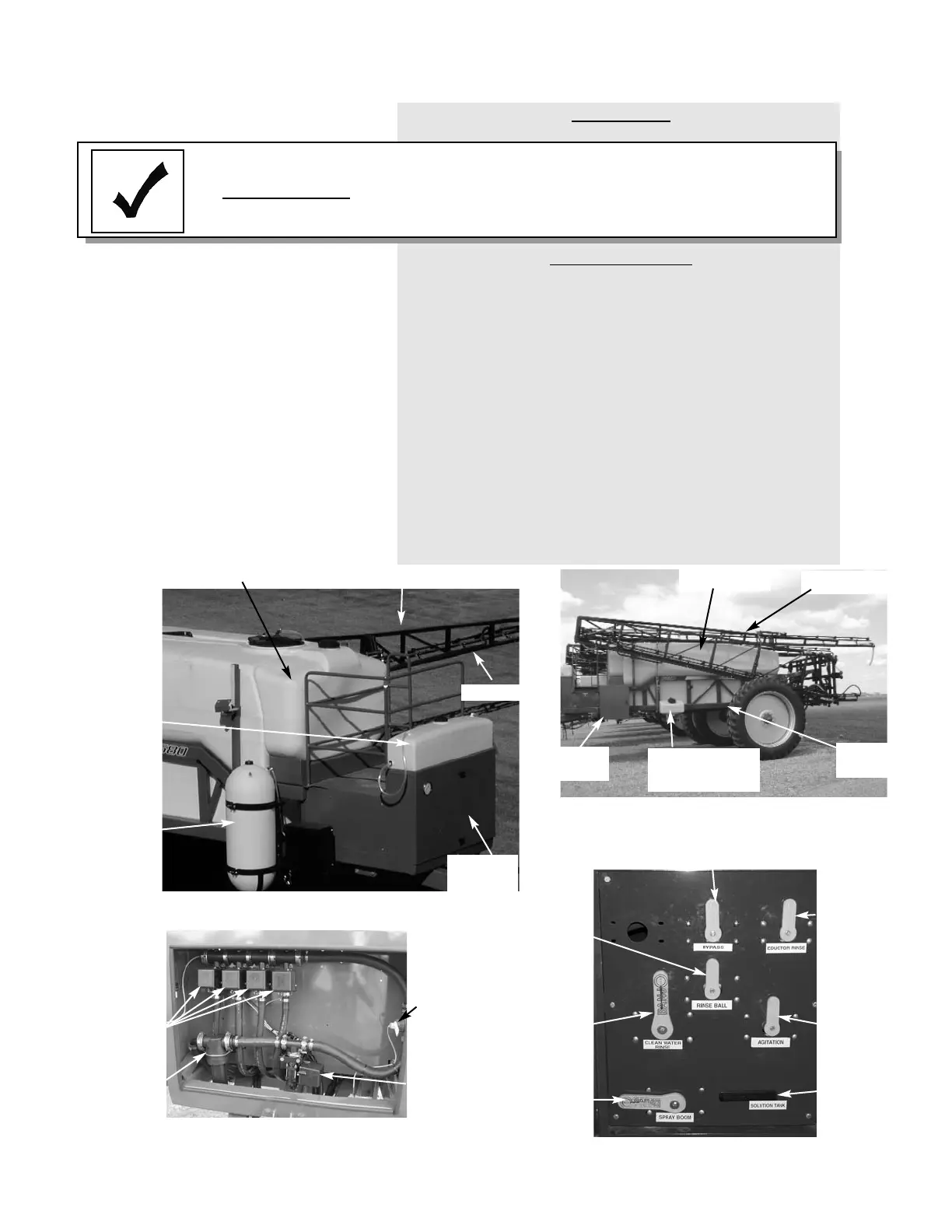

Inspect Unit
System Overview
The Redball
®
sprayer is comprised of the following
subsystems:
• Hitch
• Liquid Tanks & Cradle Frame
• Sprayboom, Nozzles, and Hoods
• Liquid Pumping & Plumbing
• Hydraulics
• Boom Folding
• Liquid Pump
• Solution Spray Control System
• Light and Marking System
• Foam Marker (Optional)
Check machine thoroughly for screws, bolts, fittings,
etc., which may have come lose during transport or
operation.
IMPORTANT
Clean Water Rinse Tank
Sprayboom
Nozzles
Plumbing
Enclosure
Clean Water
Safety Tank
1
Section B
Booms Unfolded
Right Side View
Foam
Marker
System
(Optoinal)
Boom Folded
Left Side View
Valve
Enclosure
Eductor System
(Optional)
Solution Tank
Sprayboom
Cradle
Frame
Sprayboom
Valve
Solution tank
Valve
Bypass Valve
(TeeJet
®
System Only)
Valve Enclosure
Plumbing Enclosure
Agitation Valve
Eductor
Rinse Valve
Clean Water
Rinse Valve
Rinse
Ball Valve
Flow
Meter
Bypass
Electric
Ball Valve
(TeeJet
®
System
Only)
Sprayboom
Section
Valves
Strainer
To Next Page
