Redball 680 - Boom Sections

11-01
680 High Clearance Sprayer - Parts & Schematics
Section F
12
Section F

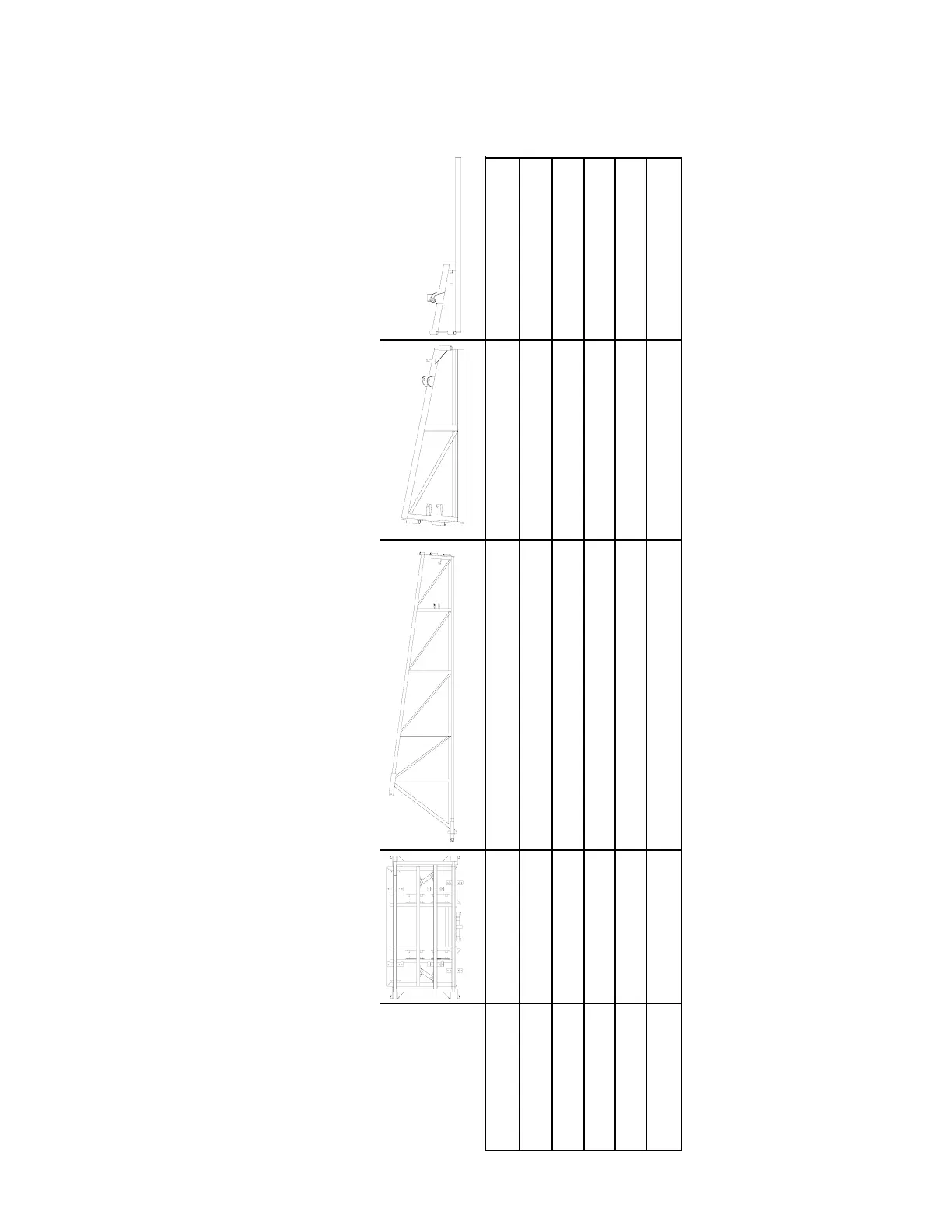

Description: Boom Sections
Ref-007621C
007454 60’ CENTERSECTION 10’ 006141 PRIMARY R.S. 15’ 007439 Secondary R.S. 5’ 004350 BKWY R.S. 5’
OVER CENTER FOLD 006365 006142 PRIMARY L.S. 15’ 007440 Secondary L.S. 5’ 004380 BKWY. L.S. 5’
007455 66’ CENTERSECTION 10’ 006141 PRIMARY R.S. 15’ 007439 Secondary R.S. 5’ 007418 BKWY. R.S. 8’
OVER CENTER FOLD 006365 006142 PRIMARY L.S. 15’ 007440 Secondary L.S. 5’ 007419 BKWY. L.S. 8’
006086 40’-80’ CENTERSECTION 10’ 006141 PRIMARY R.S. 15’ 006334 Secondary R.S. 12’ 6” 006321 BKWY. R.S. 7’ 6”
OVER CENTER FOLD 006365 006142 PRIMARY L.S. 15’ 006323 Secondary L.S. 15’ 006320 BKWY. L.S. 7’ 6”
006087 44’-88’ CENTERSECTION 10’ 006141 PRIMARY R.S. 15’ 007253 Secondary R.S. 15’ 007420 BKWY. R.S. 9’
OVER CENTER FOLD 006365 006142 PRIMARY L.S. 15’ 007254 Secondary L.S. 15’ 007421 BKWY. L.S. 9’
007456 50’-90’ CENTERSECTION 10’ 006189 PRIMARY R.S. 20’ 007424 Secondary R.S. 10’ 006181 BKWY. R.S. 10’
OVER CENTER FOLD 006365 006183 PRIMARY L.S. 20’ 007425 Secondary L.S. 10’ 006173 BKWY. L.S. 10’
006089 50’-100’ CENTERSECTION 10’ 006189 PRIMARY R.S. 20’ 006212 Secondary R.S. 15’ 006181 BKWY. R.S. 10’
OVER CENTER FOLD 006365 006183 PRIMARY L.S. 20’ 006190 Secondary L.S. 15’ 006173 BKWY. L.S. 10’
Boom Assembly #
Right hand side shown looking at the back of the sprayer.
