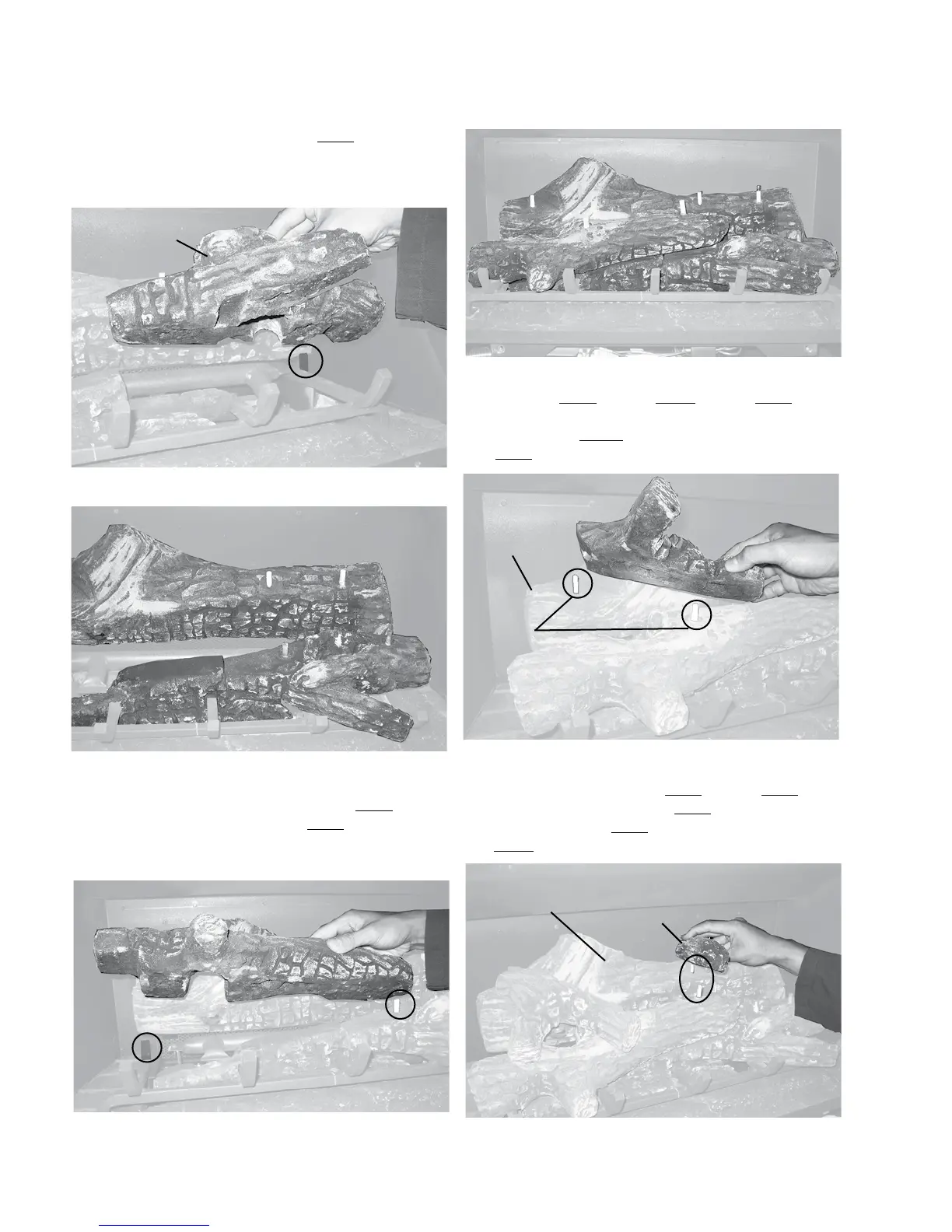

7) Align the bottom grooves of log 03-21 onto the
right side of the grate and gently slide the log back
until it touches the locating tab (refer to Diagram 4
& 5).
Diagram 4
Locating
Tab
03-23
03-17
03-21
Diagram 5
8) Align and position the pin hole of log 03-20 down
into the left locating pin of log 03-21. Slide into
the groove and gently place into position until it
touches the locating tab. (see Diagram 6 & 7)
Locating
Tab
03-20
Locating
Pin
Diagram 6
Diagram 7
03-23
03-20
03-17
03-21
9) Place log 03-22 over log 03-23 and log 03-20.
Ensure the pin hole of log 03-22 lines up with the
left pin of log 03-23 as well as the left pin of log
03-20 (refer to Diagram 8).
03-22
Locating
Pins
03-23
03-20
Diagram 8
10) Place log 03-18 over log 03-23 and log 03-20.
Ensure the pin hole of log 03-18 lines up with the
middle pin of log 03-23 and the right pin of log
03-20 (refer to Diagram 9 & 10).
03-20
03-18
03-23
Locating
Pins
Diagram 9
