E33-10 FPI Direct Vent Gas Insert | 21
|
21
installation
DIRECT VENT FIREPLACE
E33
918-416a 11.05.14
03-17
03-20
03-23
03-22
03-18

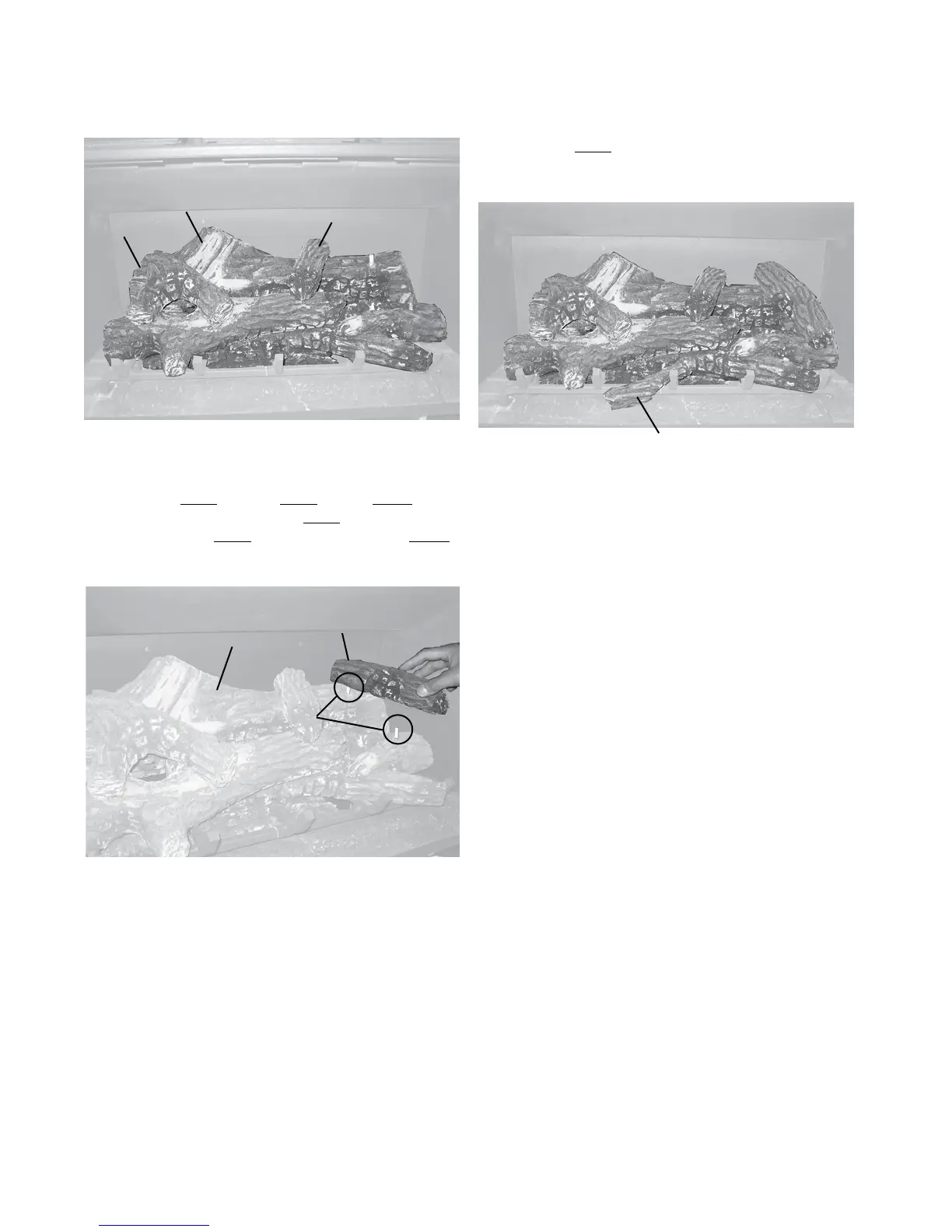

Diagram 10
11) Place log 03-24 over log 03-23 and log 03-21
ensuring the pin hole of log 03-24 lines up with the
right pin of log 03-23 and the right pin of log 03-21
(refer to Diagram 11).
03-24
03-23
03-21
Locating
Pins
Diagram 11
12) Place log 03-19 over the left center of the grate.
Ensure the log set looks like Diagram 12.
Diagram 12
03-19
Page 3 of 3
13) Separate platinum embers and place at the front
of the burner. Avoid stacking platinum embers.
