10. Reinstall new burner orifi ce LP and tighten.
11. Replace the yellow "NG" label with the red "LP" label.
12. Disconnect the NG stepper motor wires from the receiver in loca-

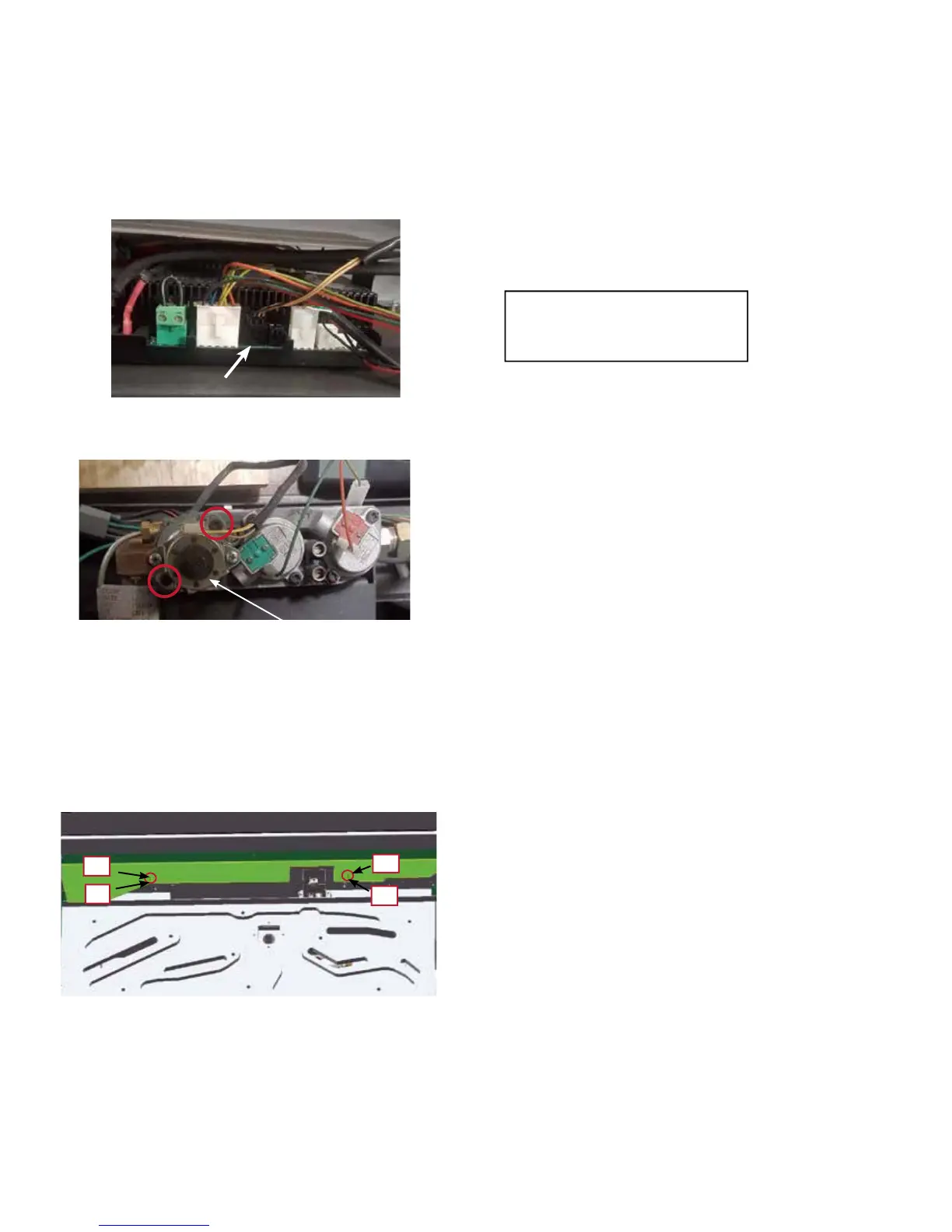

tion shown below.
Stepper
Motor
17. Reverse steps 6-1.
18. Tu rn on gas supply and plug in power cord.
14. Connect the LP stepper motor to the receiver (same port the NG
stepper motor was removed.
15. Adjust burner’s air shutter to fully open for LP.
16. Remove the rear log pins from the log tray (log pins are held in
by 1 screw for each pin) Relocate the log pins from the forward
position (NG) to the rearward position (opening closer to the back
wall of the unit) (LP) as shown below. Secure the pins in the new
location using the same pins and screws removed.
LP
NG
LP
NG
13. Remove NG stepper motor by removing 2 screws in locations
shown below. Replace with LP stepper motor, secure in place
with 2 screws.
19. Check for gas leaks.
20. Check inlet and outlet pressures.
21. Check operation of fl ame control.
