ENGINE AND CYLINDER BLOCK ASSEMBLY
Multifunction support: Removal - Refitting
F9Q
10A
a Remove the front end panel bolts (2) .
a Tilt the front end panel.
a Remove:
-the intercooler air outlet pipe (see 12B, Turbo-
charging, Intercooler air outlet pipe: Removal -
Refitting, page 12B-56) ,
-the alternator (see 16A, Starting - Charging, Al-
ternator: Removal - Refitting, page 16A-1) ,
-the compressor (see Compressor: Removal - Re-
fitting) (62A, Air conditioning).
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Remove:
- the multifunction support bolts (3) ,
- the multifunction support.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
a Refit the multifunction support.
a Torque tighten the multifunction support bolts (44
N.m).
II - FINAL OPERATION
a Refit:
- the compressor (see Compressor: Removal - Re-
fitting) (62A, Air conditioning),
-the alternator (see 16A, Starting - Charging, Al-
ternator: Removal - Refitting, page 16A-1) ,
- the new intercooler air outlet pipe (see 12B, Turbo-
charging, Intercooler air outlet pipe: Removal -
Refitting, page 12B-56) ,
- the front end panel.
a Refit:
-the bonnet catch (see Bonnet latch: Removal -
Refitting) (52A, Non-side opening element mecha-
nisms),

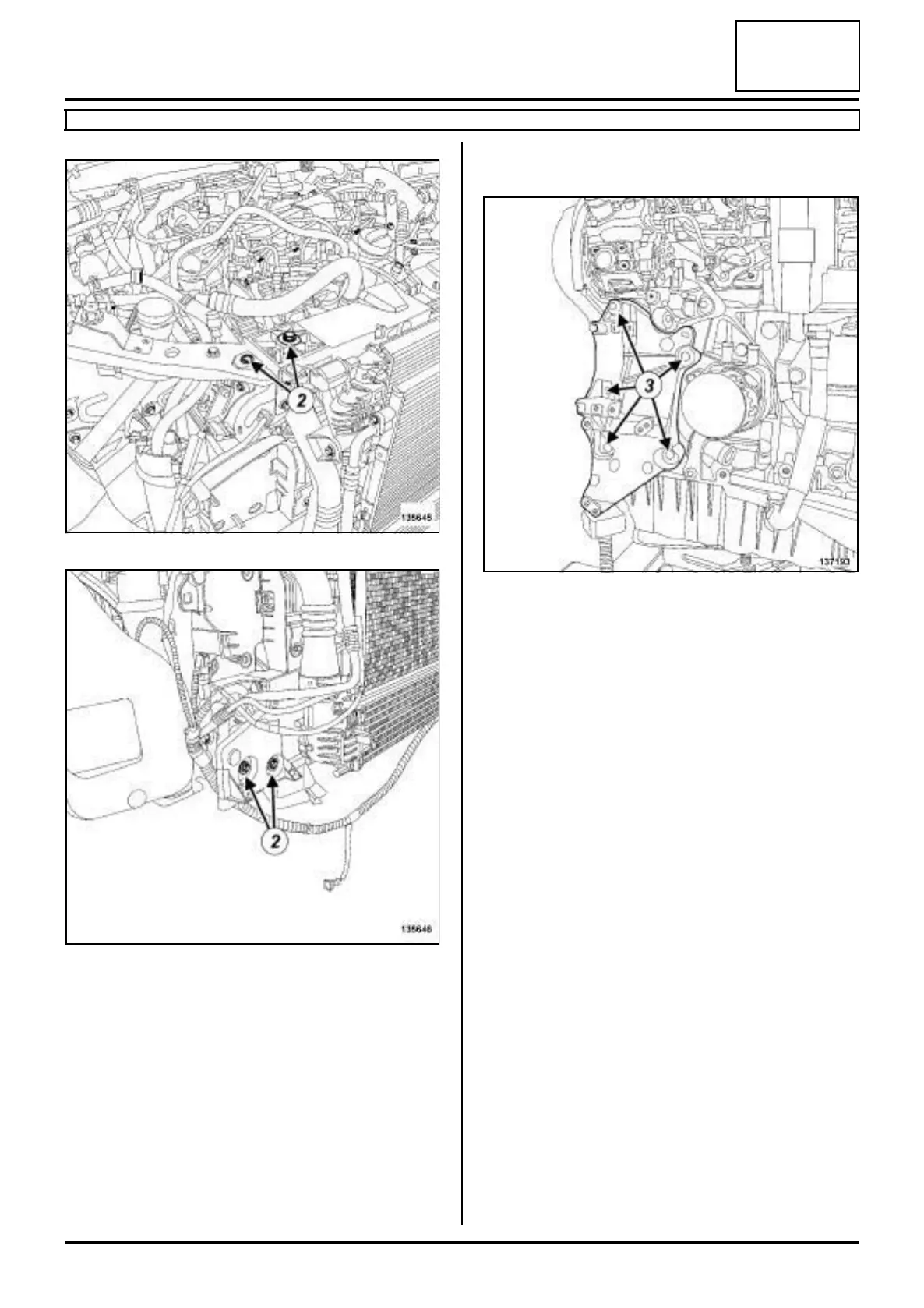

135645
135646
137193
