Renault F9Q - Exhaust Fuel Injector Cooler: Removal - Refitting

19B-58
EXHAUST
Exhaust fuel injector cooler: Removal - Refitting
F9Q, and 870
19B
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) .
a Remove:
-the engine cover,
-the engine undertray bolts,
-the engine undertray,
-the windscreen wiper arms (see Windscreen wi-
per arm: Removal - Refitting) (85A, Wiping -
Washing),
-the scuttle panel grille (see Scuttle panel grille:
Removal - Refitting) (56A, Exterior equipment),
-the scoop under the scuttle panel grille (see Scoop
under scuttle panel grille: Removal - Refitting)
(56A, Exterior equipment),
-the battery (see Battery: Removal - Refitting)
(80A, Battery),
-the battery tray (see Battery tray: Removal - Re-
fitting) (80A, Battery),
-the intercooler air inlet pipe (see 12B, Turbochar-
ging, Intercooler air inlet pipe: Removal - Refit-
ting, page 12B-41) ,
-the exhaust fuel injector (see 19B, Exhaust, Ex-
haust fuel injector: Removal - Refitting, page
19B-54) .
II - OPERATION FOR REMOVAL OF PART
CONCERNED

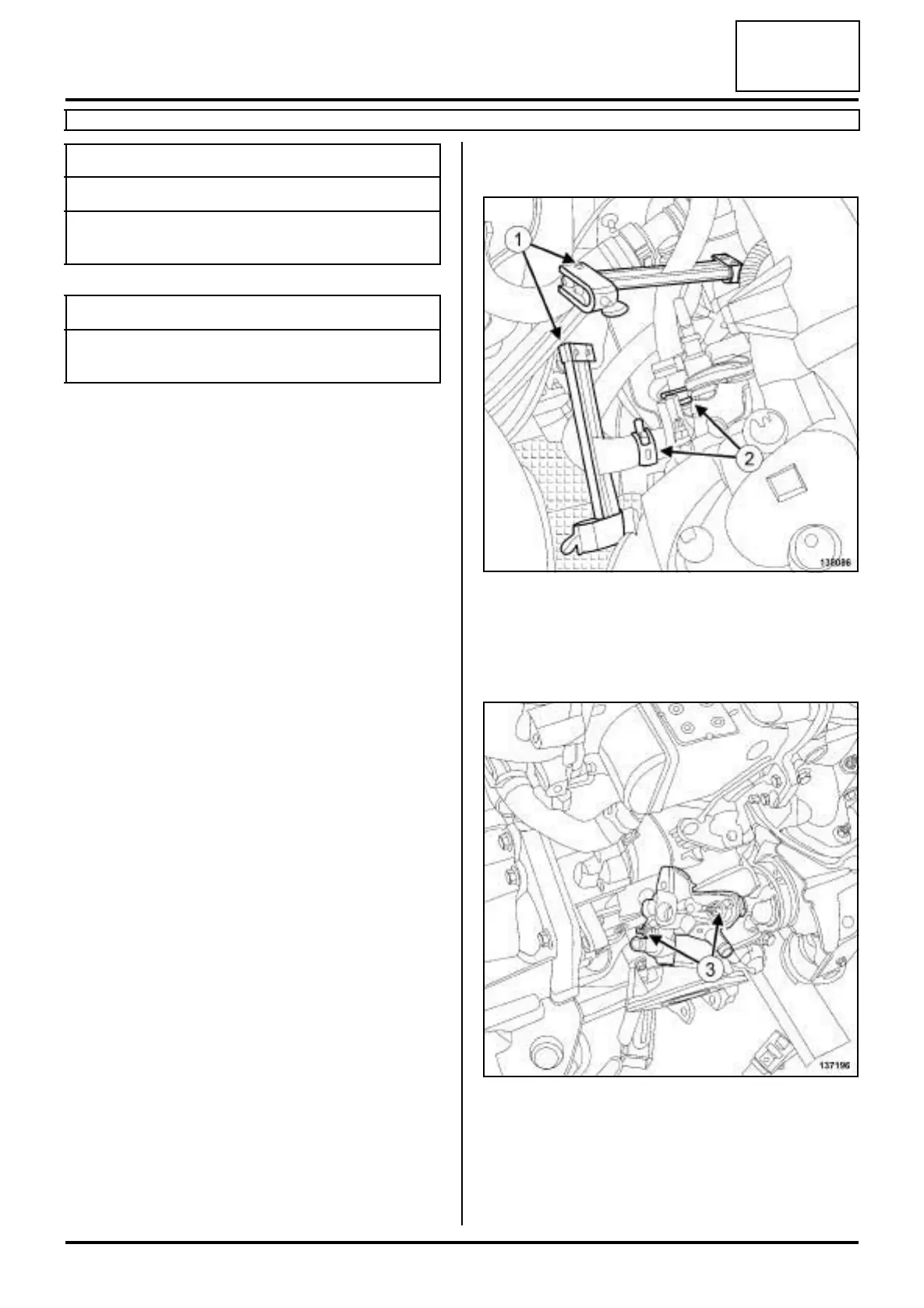

a Fit the tools (Ms. 583) (1) on the hoses of the ex-
haust fuel injector cooler.
a Separate the clips (2) on the hoses of the exhaust
fuel injector cooler using the tool (Mot. 1448).
a Remove:
- the nuts (3) of the exhaust fuel injector cooler,
- the exhaust fuel injector cooler,
- Disconnect the hoses of the exhaust fuel injector
cooler.
Essential special tooling
Ms. 583 Hose clamp pliers.
Mot. 1448 Long nose pliers for hose
clips.
Tightening torquesm
the nuts of the exhaust
fuel injector cooler
35 N.m
