10A-5
ENGINE AND CYLINDER BLOCK ASSEMBLY
Crankshaft seal at timing end Removal - Refitting
K9K
10A

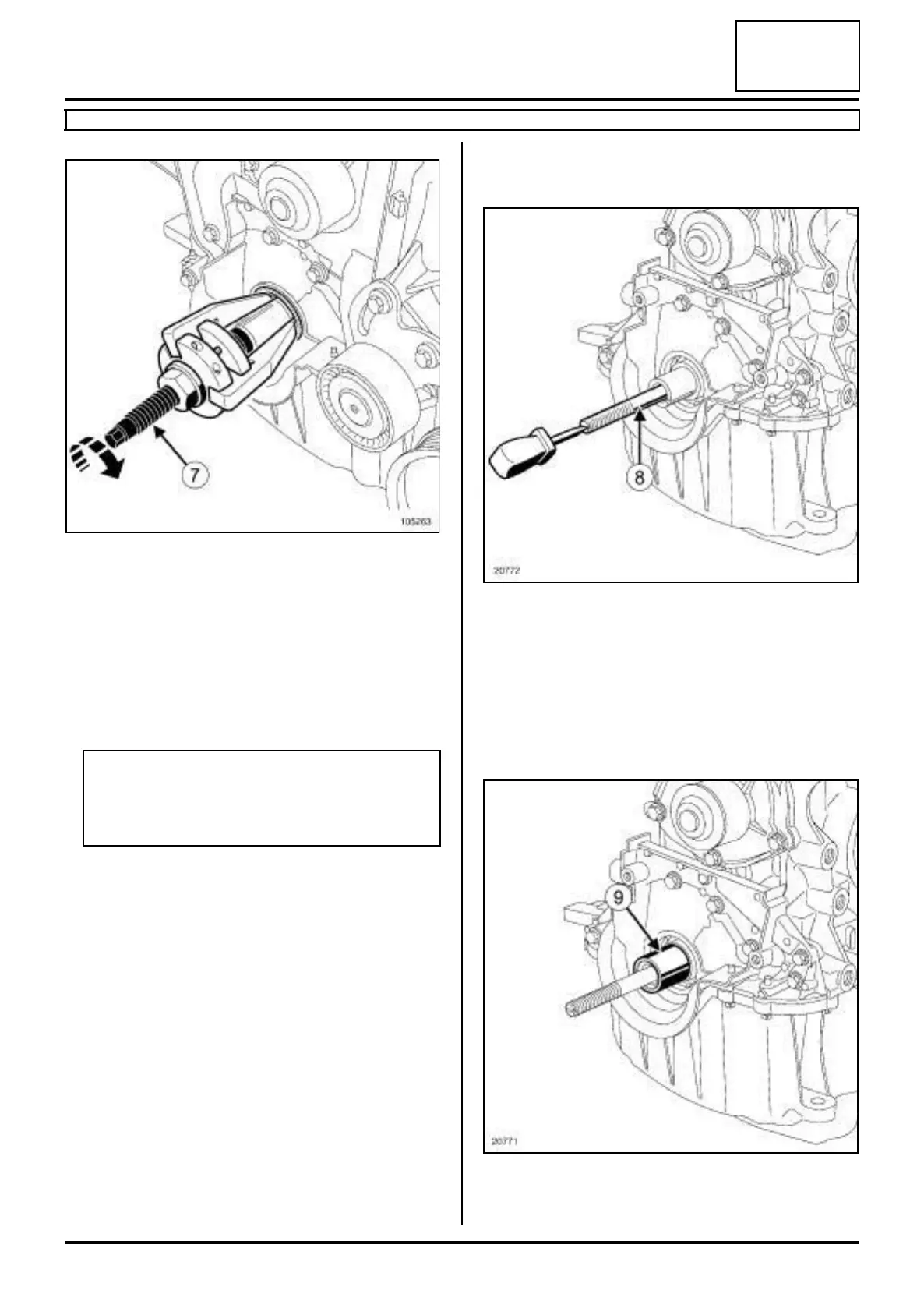

a Screw down the threaded rod (7) of the (Mot. 1577).
a Remove the crankshaft seal using the tool (Mot.
1577).
REFITTING
I - REFITTING PREPARATION OPERATION
a
a Use SURFACE CLEANER (see Vehicle: Parts
and ingredients for the repairwork) (04B, Consu-
mables - Products) to clean and degrease:
-the crankshaft seal mating face on the crankshaft,
-the crankshaft seal housing in the crankshaft closu-
re panel.
a parts always to be replaced: Crankshaft seal on
timing end (10,03,03,04).
II - REFITTING OPERATION FOR PART
CONCERNED
a Tighten the threaded rod (8) :
-of the tool (Mot. 1586) in the crankshaft with an
M12 thread,
-of the tool (Mot. 1714) in the crankshaft with an
M14 thread.
a Insert the spacer (9) of the (Mot. 1586) in the
crankshaft.
105263
WARNING
To ensure proper sealing, the gasket surfaces
must be clean, dry and not greasy (avoid any fin-
ger marks).
20772
20771
