11A-62
TOP AND FRONT OF ENGINE
Timing belt: Removal - Refitting
F4R
11A
3 - Timing belt tension
a

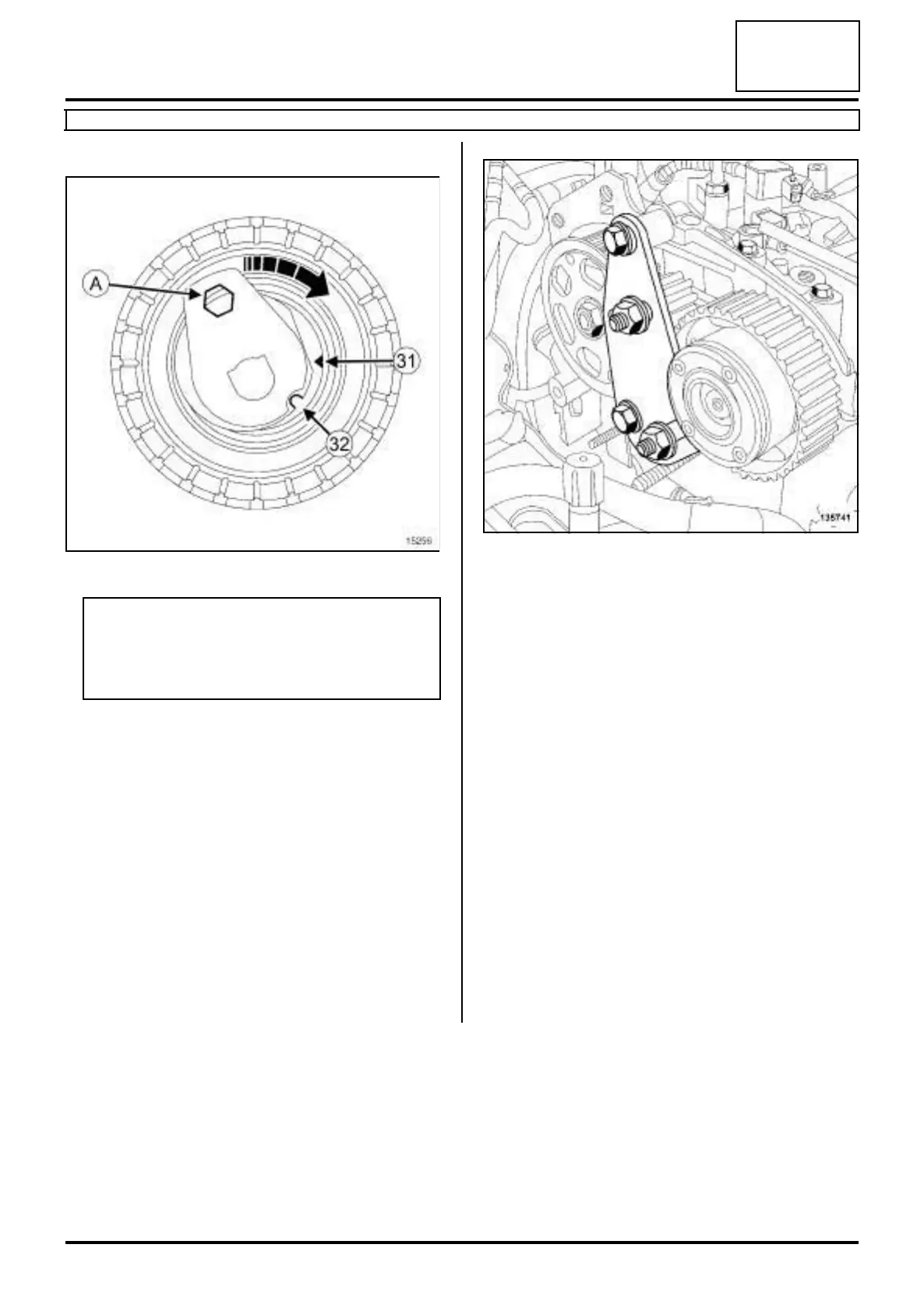

a Align the marks (31) and (32) using a 6 mm Allen
key at (A) .
a Torque tighten the tensioning roller nut (initial tor-
que) (32 N.m).
a Position the (Mot. 1801).
a Bring the toothed sprockets of the (Mot. 1801) into
contact with the camshaft pulleys.
a Tighten to torque:
- the toothed sprocket nuts (80 N.m),
- the old inlet camshaft dephaser bolt (30 N.m).
- the old exhaust camshaft pulley nut (30 N.m).
a Remove:
- the (Mot. 1801),
- the TDC setting pin (Mot. 1054),
- the camshaft setting tool (Mot. 1496).
4 - Checking the timing and the timing belt tension
a - Checking the timing
a Refit:
- the crankshaft accessories pulley,
- the crankshaft accessories pulley bolt.
15256
Note:
When tightening the tensioning roller, use a 6
mm Allen key to stop the roller moving during the
operation.
135741
