TOP AND FRONT OF ENGINE
Rocker cover: Removal - Refitting
K9K
11A

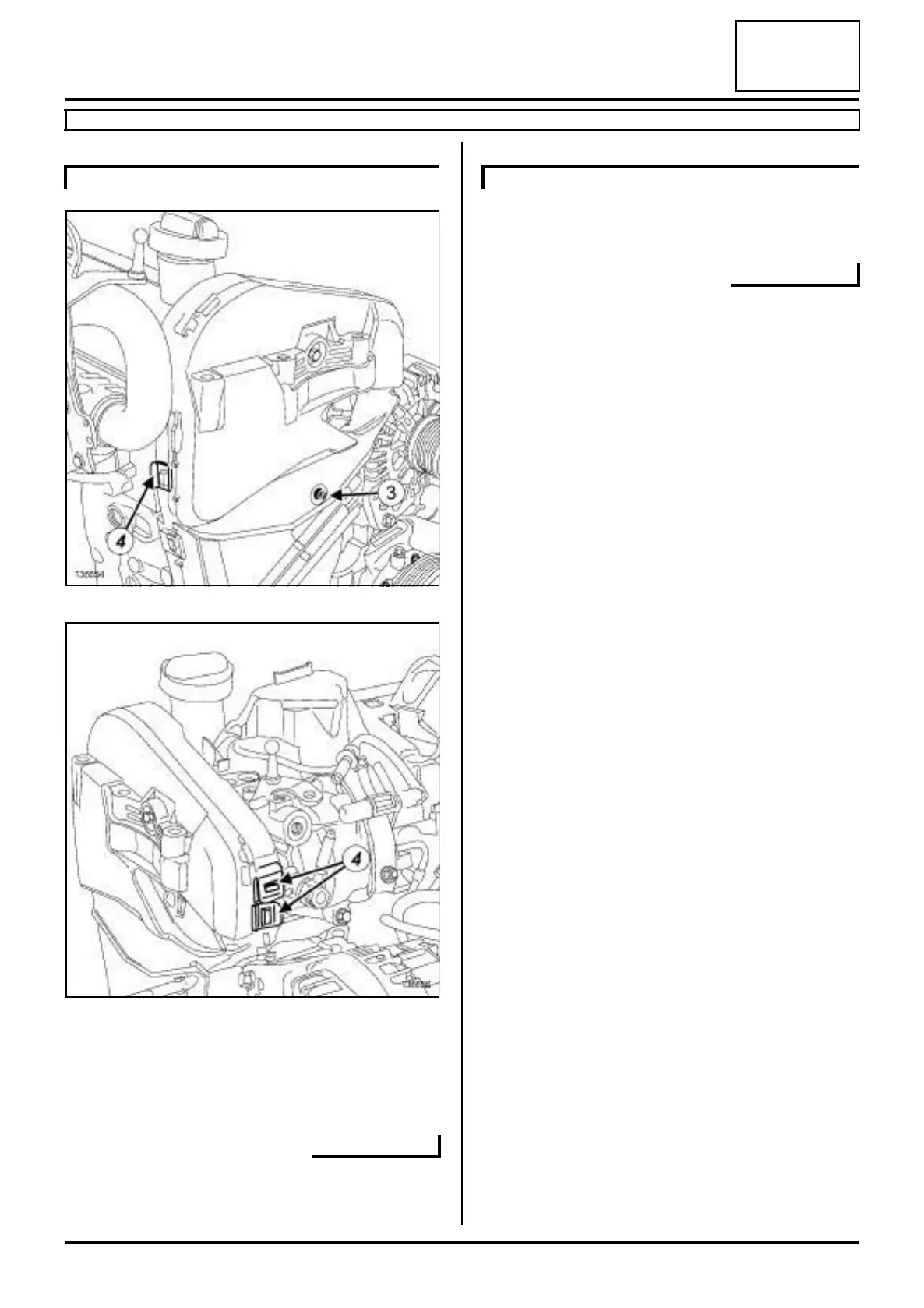

a Remove:
-the bolt (3) from the upper timing cover,
-the upper timing cover by pressing the clips (4) .
a Remove the turbocharger outlet air pipe (see 12B,
Turbocharging, Intercooler air inlet pipe: Remo-
val - Refitting, page 12B-41) .
a the damper valve (see 12A, Fuel mixture, Air inlet
flap: Removal - Refitting, page 12A-11) .
K9K, and 830
136654
136656
K9K, and 832
