11A-90
TOP AND FRONT OF ENGINE
Rocker cover: Removal - Refitting
K9K
11A

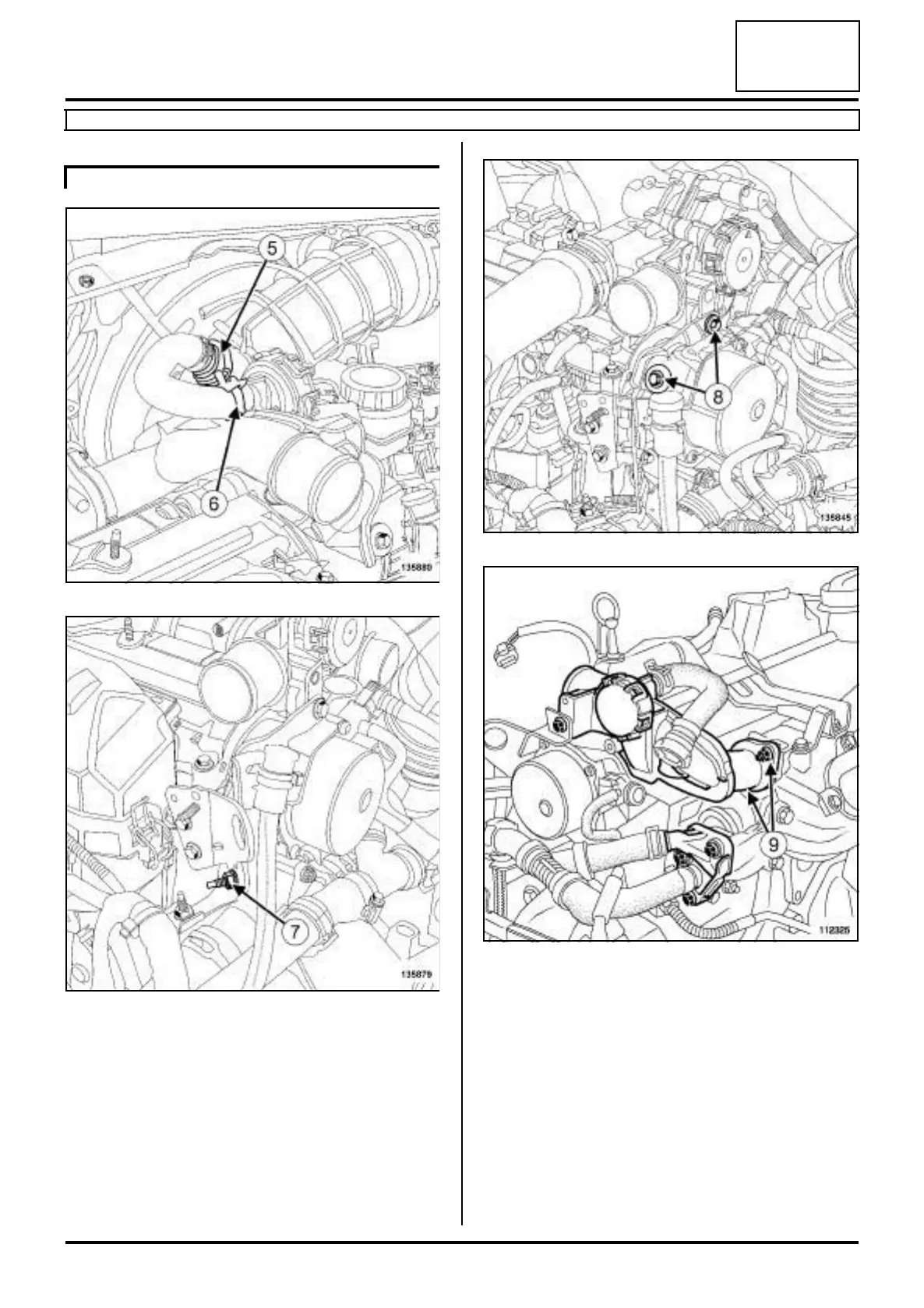

a Disconnect the oil vapour rebreathing pipe from the
air filter unit air outlet pipe at (5) .
a Separate the clip (6) of the oil vapour rebreathing
pipe on the oil vapour rebreathing valve.
a Disconnect the oil vapour rebreathing pipe from the
oil vapour rebreathing valve.
a Remove the nut (7) of the gearbox breather pipe
mounting.
a Move aside the gearbox breather pipe mounting.
a Remove:
- the bolts (8) of the oil vapour rebreathing valve
K9K, and 830
135880
135879
135845
112325
