Renault F9Q - Right-Hand Suspended Engine Mounting: Removal - Refitting

19D-18
ENGINE MOUNTING
Right-hand suspended engine mounting: Removal - Refitting
K4M
19D
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Remove:
-the engine cover,
-the windscreen wiper arms (see Windscreen wi-
per arm: Removal - Refitting) (85A, Wiping -
Washing),
-the scuttle panel grille (see Scuttle panel grille:
Removal - Refitting) (56A, Exterior equipment),
-the scoop under the scuttle panel grille (see Scoop
under scuttle panel grille: Removal - Refitting)
(56A, Exterior equipment).

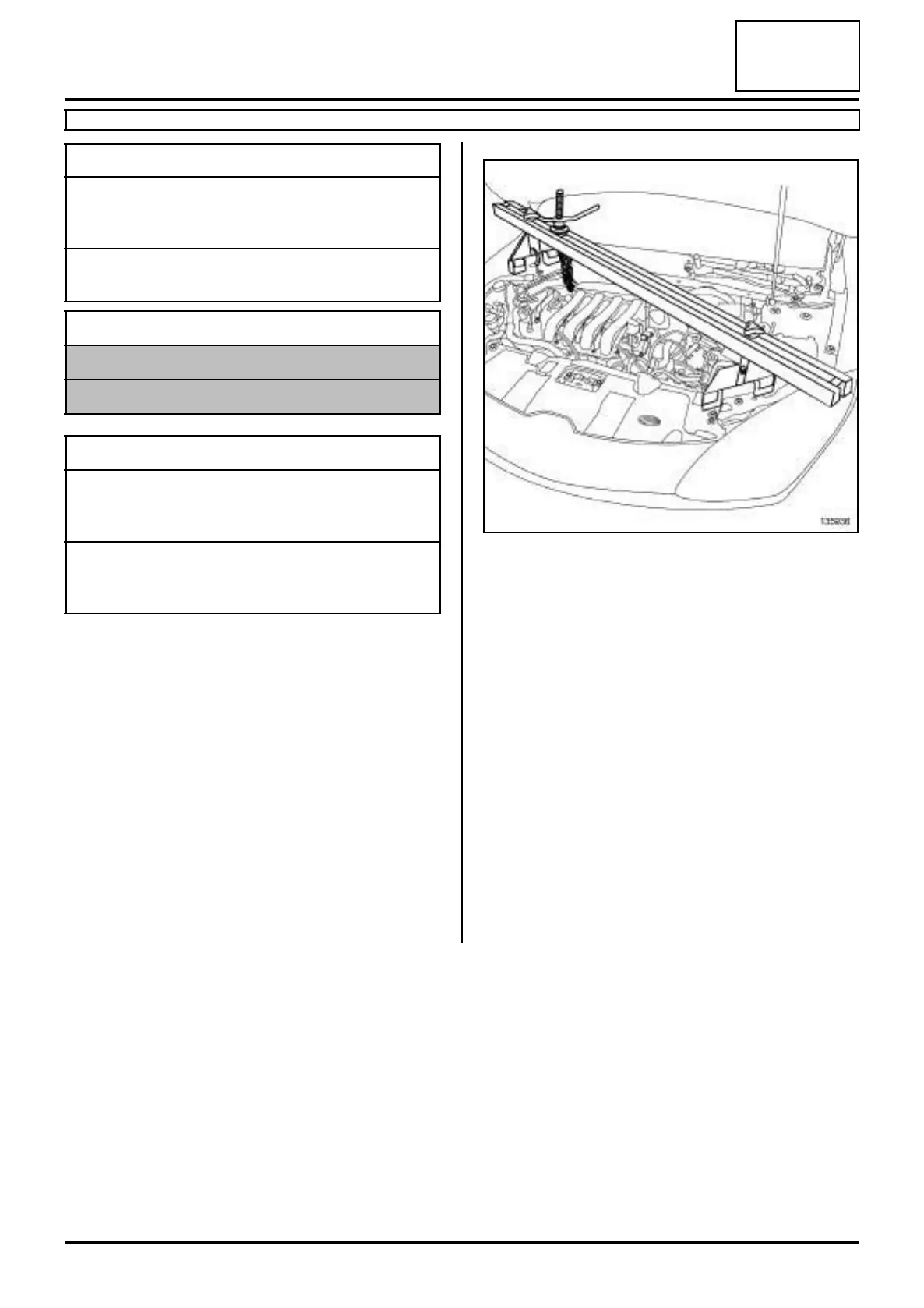

a Fit the tool (Mot. 1453) equipped with the tool (Mot.
1453-01) using the safety strap(s).
Essential special tooling
Mot. 1453 Multiple-adjusting engine
mounting support with retai-
ning straps.
Mot. 1453-01 Additional winder nut on
engine lift support Mot. 1453.
Essential equipment
safety strap(s)
indelible pencil
Tightening torquesm
bolts for the suspended
engine mounting rubber
pad
62 N.m
bolts for the right-hand
suspended engine
mounting cover
62 N.m
