Renault F9Q - Turbocharger Outlet Exhaust Gas Duct: Removal - Refitting

12B-49
TURBOCHARGING
Turbocharger outlet exhaust gas duct: Removal - Refitting
F9Q
12B
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Remove:
-the engine undertray bolts,
-the engine undertray.

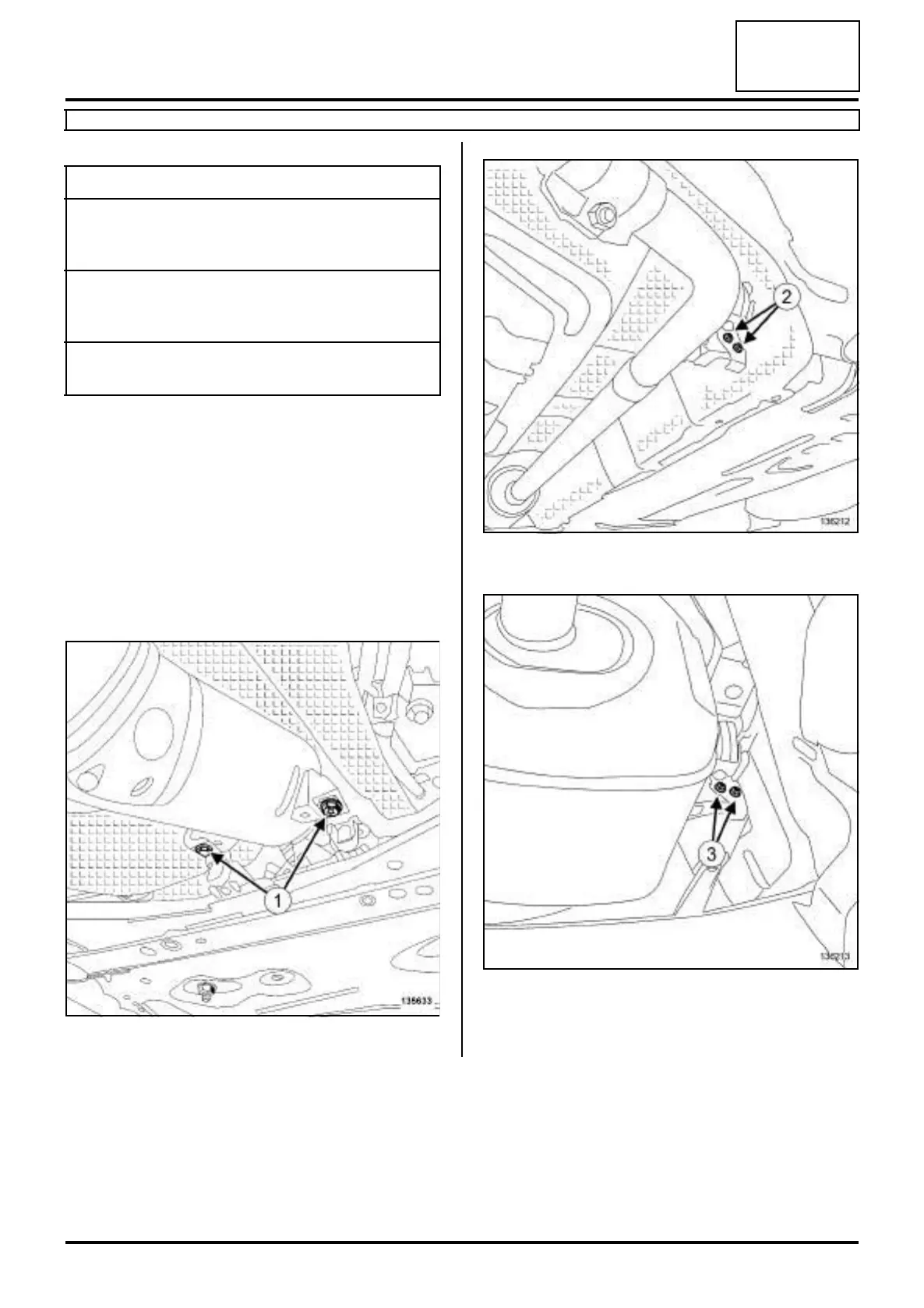

a Remove the bolts (1) from the catalytic converter.
a Remove the bolts (2) from the intermediate pipe.
a Remove the silencer bolts.
Tightening torquesm
clip of the turbocharger
outlet exhaust gas duct
(initial torque)
5 N.m
bolts on the bracket of
the turbocharger outlet
exhaust gas duct
44 N.m
clip of the turbocharger
outlet exhaust gas duct
20 N.m
135633
136212
136213
