10A-7
ENGINE AND CYLINDER BLOCK ASSEMBLY
Crankshaft seal at timing end Removal - Refitting
K9K
10A
a Remove:
-the nut,
-the cover,
-the protector,
-the spacer,
-the threaded rod.
III - FINAL OPERATION
a Refit:
-the crankshaft timing sprocket,
-the timing belt (see 11A, Top and front of engine,
Timing belt: Removal - Refitting, page 11A-29) .
a Refit the camshaft position sensor (see 13B, Diesel
injection, Camshaft position sensor: Removal -
Refitting, page 13B-19) .
a Refit:
-the right-hand suspended engine mounting (see
19D, Engine mounting, Right-hand suspended
engine mounting: Removal - Refitting, page
19D-18) ,
-the scoop under the scuttle panel grille (see Scoop
under scuttle panel grille: Removal - Refitting)
(56A, Exterior equipment),
- the scuttle panel grille (see Scuttle panel grille:
Removal - Refitting) (56A, Exterior equipment),
-the windscreen wiper arms (see Windscreen wi-
per arm: Removal - Refitting) (85A, Wiping -
Washing),
a Refit the lower engine tie-bar (see 19D, Engine
mounting, Lower engine tie-bar: Removal - Refit-
ting, page 19D-33) .
a Refit:
- the crankshaft accessories pulley (see 11A, Top
and front of engine, Crankshaft accessories
pulley: Removal - Refitting, page 11A-15) ,
- the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting,
page 11A-7) ,
- the engine undertray,
- the front section of the front right-hand wheel arch
liner (see Front wheel arch liner: Removal - Re-
fitting) (55A, Exterior protection),
-the front right-hand wheel (see Wheel: Removal -
Refitting) (35A, Wheels and tyres),
- the engine cover.
a Connect the battery (see Battery : Removal - Refit-
ting) (80A, Battery).

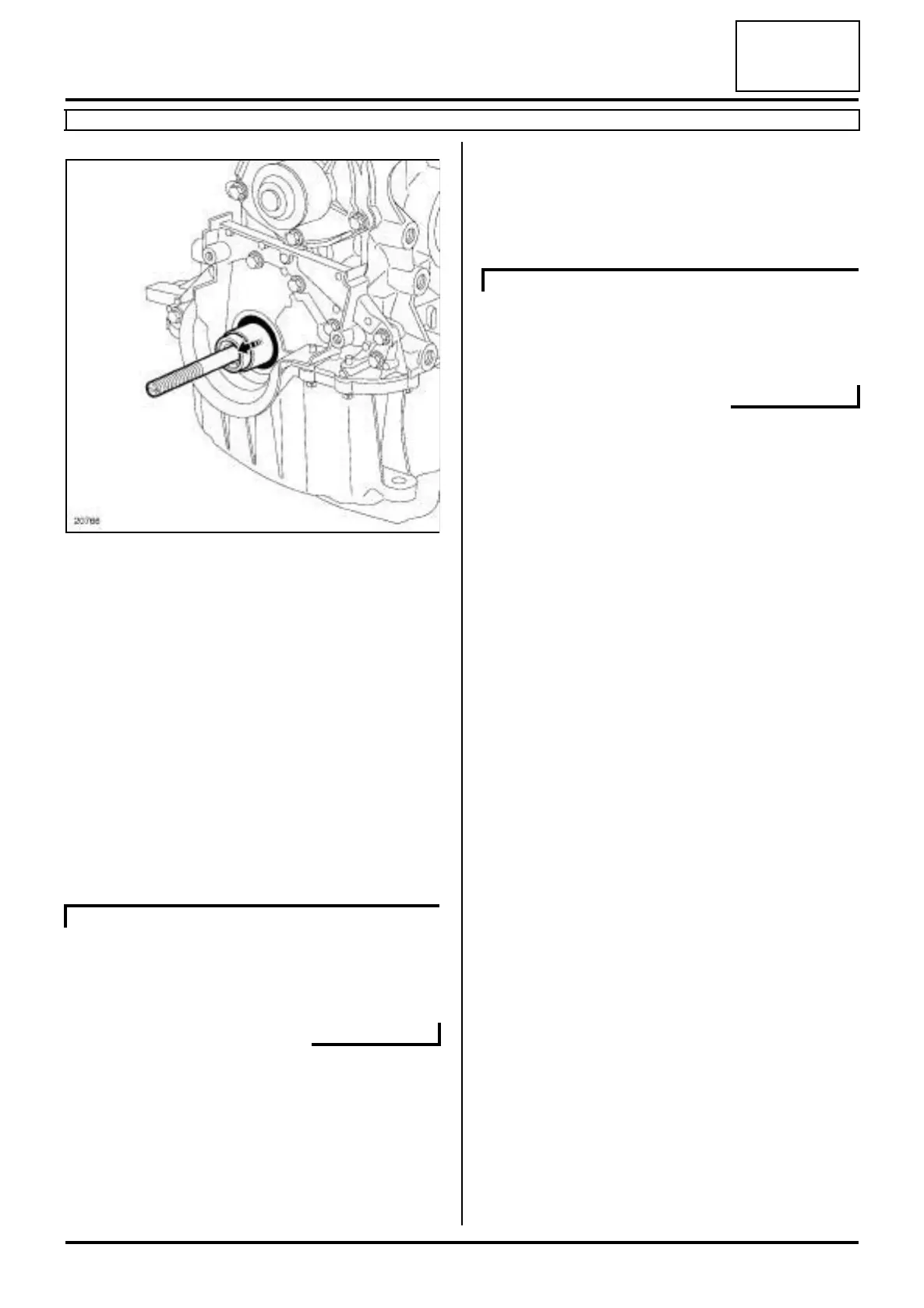

20766
K9K, and 830
K9K, and 830
