11A-15
TOP AND FRONT OF ENGINE
Crankshaft accessories pulley: Removal - Refitting
K9K
11A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Remove:
-the engine cover,
-the front right-hand wheel (see Wheel: Removal -
Refitting) (35A, Wheels and tyres),
-the front section of the front right-hand wheel arch
liner (see Front wheel arch liner: Removal - Re-
fitting) (55A, Exterior protection),
-the engine undertray bolts,
-the engine undertray,
-the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting,
page 11A-7) .
II - OPERATION FOR REMOVAL OF PART
CONCERNED

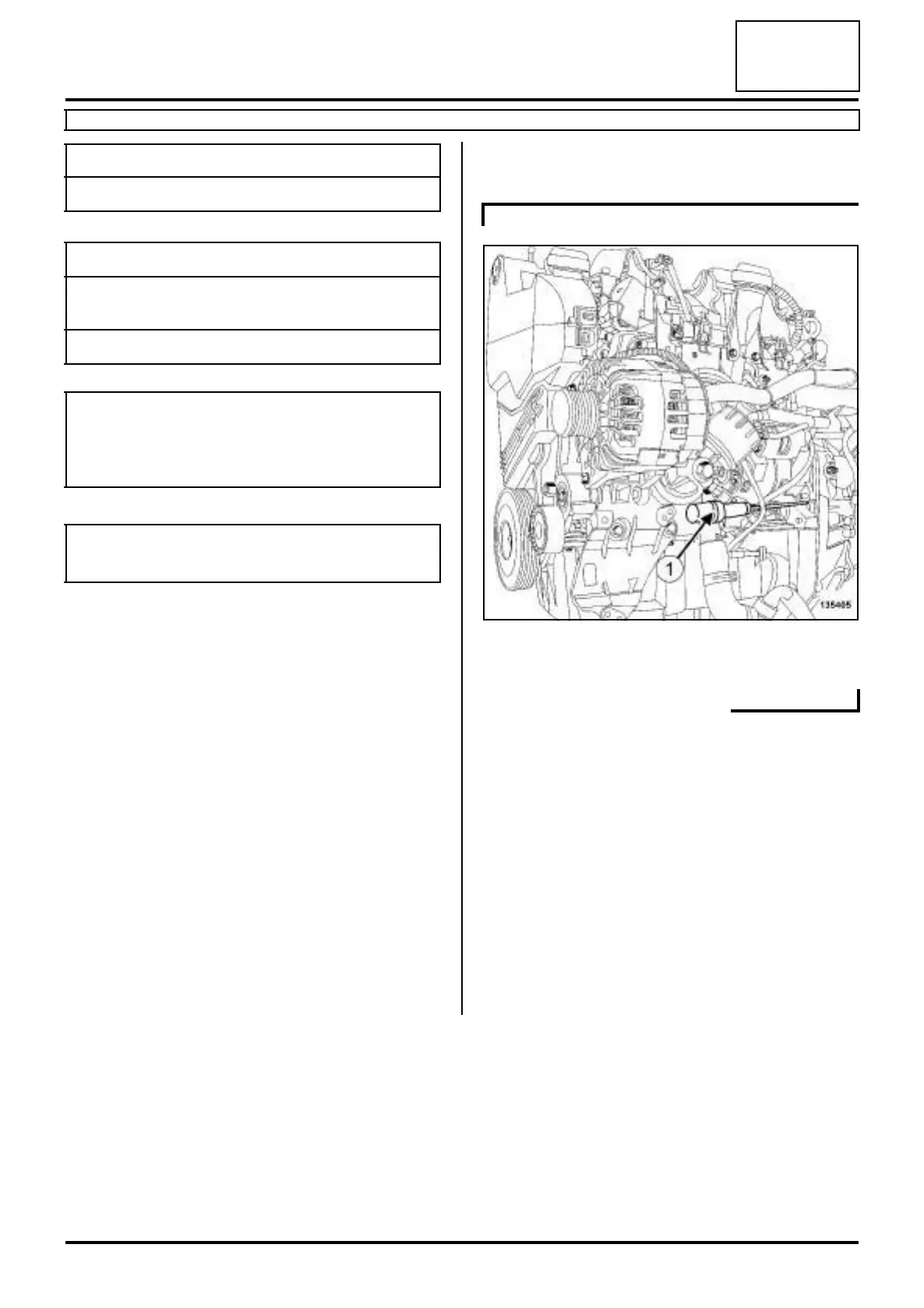

a Lock the flywheel using a screwdriver (1) .
Essential special tooling
Mot. 1489 TDC locating pin.
Tightening torquesm
crankshaft accessories
pulley bolt
120 N.m + 95˚
±±
±±
15˚
TDC pin plug 23 N.m
WARNING
Do not run the engine without the accessories belt
to avoid damaging the crankshaft accessories pul-
ley.
IMPORTANT
Wear protective gloves during the operation.
K9K, and 832
135405
