10A-23
ENGINE AND CYLINDER BLOCK ASSEMBLY
Crankshaft seal at gearbox end : Removal - Refitting
F4R
10A
II - OPERATION FOR REMOVAL OF PART
CONCERNED

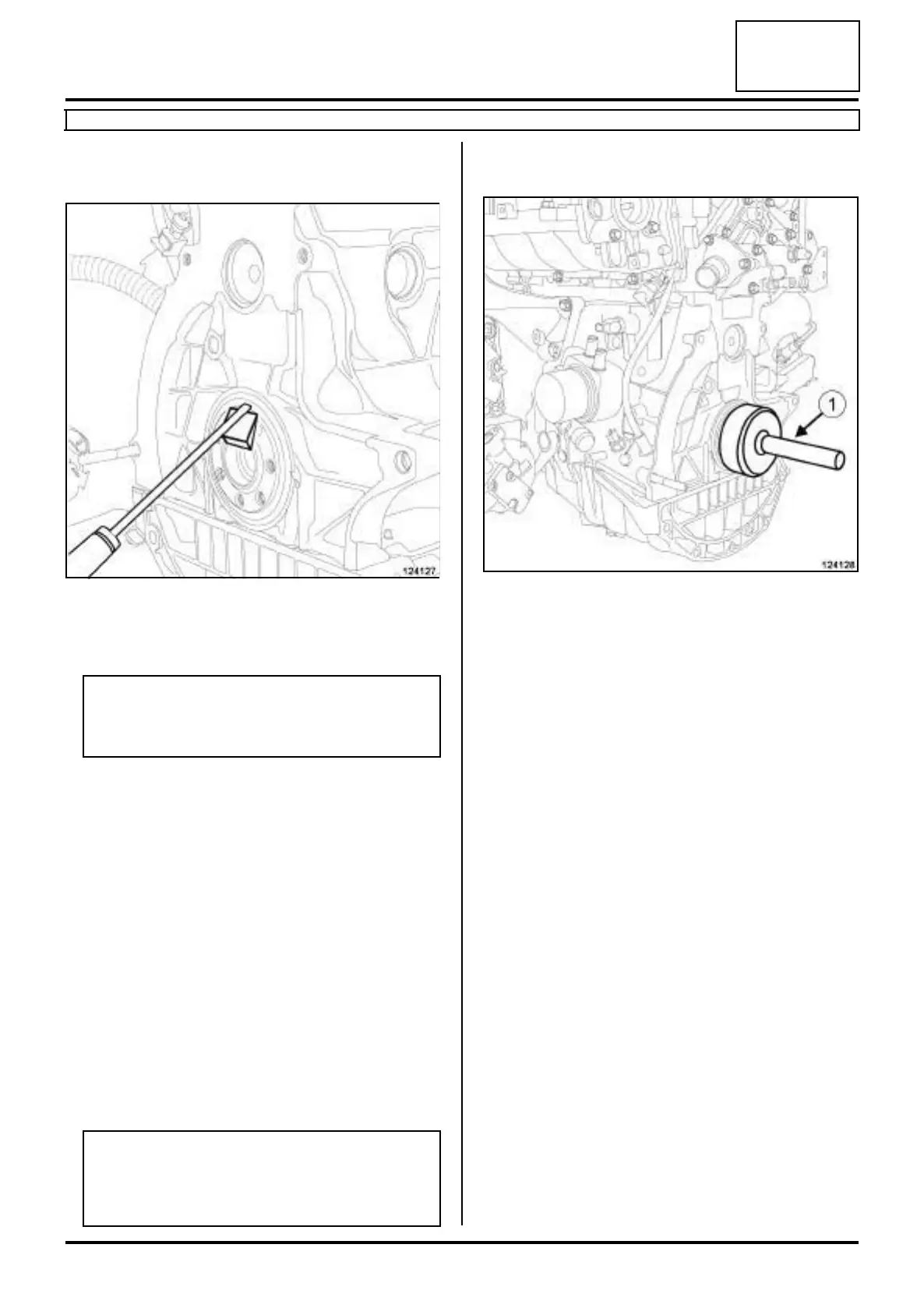

a Remove the crankshaft seal on the gearbox side
using a screwdriver and a wooden block.
REFITTING
I - REFITTING PREPARATION OPERATION
a parts always to be replaced: Crankshaft seal on
gearbox end (10,03,03,05).
a Use SURFACE CLEANER (see Vehicle: Parts
and ingredients for the repairwork) (04B, Consu-
mables - Products) to clean and degrease:
-the mating face of the crankshaft seal on the
crankshaft at the gearbox end,
-the housing of the crankshaft seal on the cylinder
block at the gearbox end.
II - REFITTING OPERATION FOR PART
CONCERNED
a Refit a new crankshaft seal at the gearbox end,
using the tool (Mot. 991-01) (1) .
III - FINAL OPERATION
a Refit:
- the flywheel (see 10A, Engine and cylinder block
assembly, Flywheel: Removal - Refitting, page
10A-157) ,
- the « clutch pressure plate - disc » assembly (see
Mechanism / Disk: Removal - Refitting) (20A,
Clutch),
- the manual gearbox (see Manual gearbox: Remo-
val - Refitting) (21A, Manual gearbox),
- the left-hand suspended engine mounting (see
19D, Engine mounting, Left-hand suspended
engine mounting: Removal - Refitting, page
19D-1) ,
- the scoop under the scuttle panel grille (see Scoop
under scuttle panel grille: Removal - Refitting)
(56A, Exterior equipment),
- the scuttle panel grille (see Scuttle panel grille:
Removal - Refitting) (56A, Exterior equipment),
-the windscreen wiper arms (see Windscreen wi-
per arm: Removal - Refitting) (85A, Wiping -
Washing),
- the front axle subframe (see Front axle sub-fra-
me: Removal - Refitting) (31A, Front axle compo-
nents),
124127
Note:
Ta ke care not to damage the crankshaft mating
face.
WARNING
To ensure proper sealing, the gasket surfaces
must be clean, dry and not greasy (avoid any fin-
ger marks).
124128
