12A-45
FUEL MIXTURE
Exhaust manifold: Removal - Refitting
F4R
12A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Disconnect the battery (see Battery : Removal -
Refitting) (80A, Battery).
a Remove:
-the engine cover,
-the engine undertray bolts,
-the engine undertray,
-the connecting hose (see 19B, Exhaust, Connec-
ting hose: Removal - Refitting, page 19B-60) ,
-the windscreen wiper arms (see Windscreen wi-
per arm: Removal - Refitting) (85A, Wiping -
Washing),
-the scuttle panel grille (see Scuttle panel grille:
Removal - Refitting) (56A, Exterior equipment),
-the scoop under the scuttle panel grille (see Scoop
under scuttle panel grille: Removal - Refitting)
(56A, Exterior equipment),
-the front right-hand wheel (see Wheel: Removal -
Refitting) (35A, Wheels and tyres),
-the front section of the front right-hand wheel arch
liner (see Front wheel arch liner: Removal - Re-
fitting) (55A, Exterior protection).
a Drain the manual gearbox (see Manual gearbox
oil: Draining - Refilling) (21A, Manual gearbox).
a Remove:
-the front right-hand wheel driveshaft (see Front ri-
ght-hand wheel driveshaft: Removal - Refitting)
(29A, Driveshafts),
-the right-hand differential output seal (see Diffe-
rential output seal: Removal - Refitting) (21A,
Manual gearbox),
-the lower engine tie-bar (see 19D, Engine moun-
ting, Lower engine tie-bar: Removal - Refitting,
page 19D-33) ,
-the connecting hose (see 19B, Exhaust, Connec-
ting hose: Removal - Refitting, page 19B-60) ,
- the catalytic converter (see 19B, Exhaust, Cataly-
tic converter: Removal - Refitting, page 19B-17)
.
a Remove:

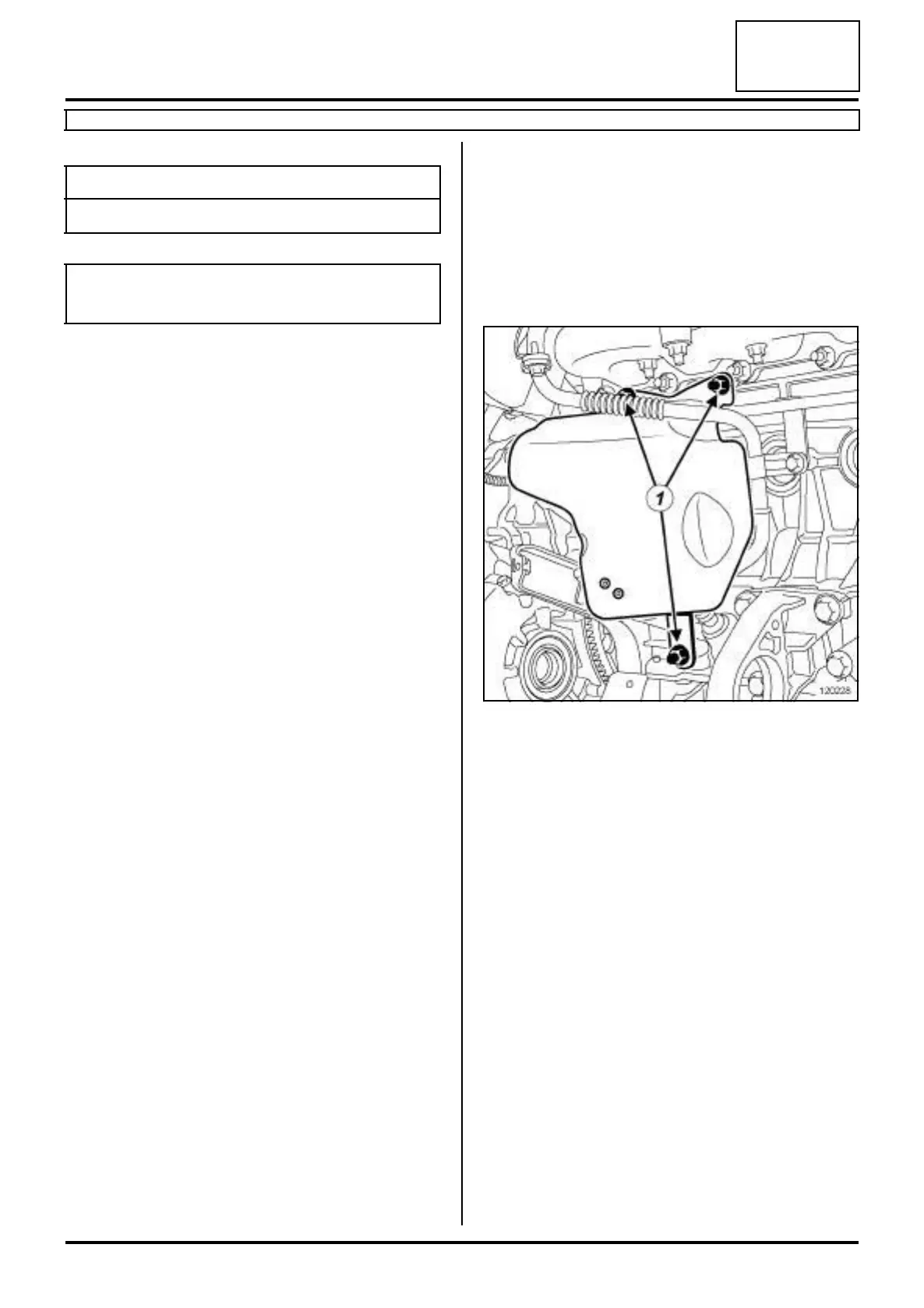

- the heat shield bolts (1) from the starter,
- the heat shield from the starter,
- the turbocharger (see 12B, Turbocharging, Tur-
bocharger: Removal - Refitting, page 12B-8) .
Tightening torquesm
exhaust manifold nuts 25 N.m
IMPORTANT
Wear heat protective gloves during the operation.
120228
