10A-41
ENGINE AND CYLINDER BLOCK ASSEMBLY
Engine oil: Draining - Refilling
K9K
10A

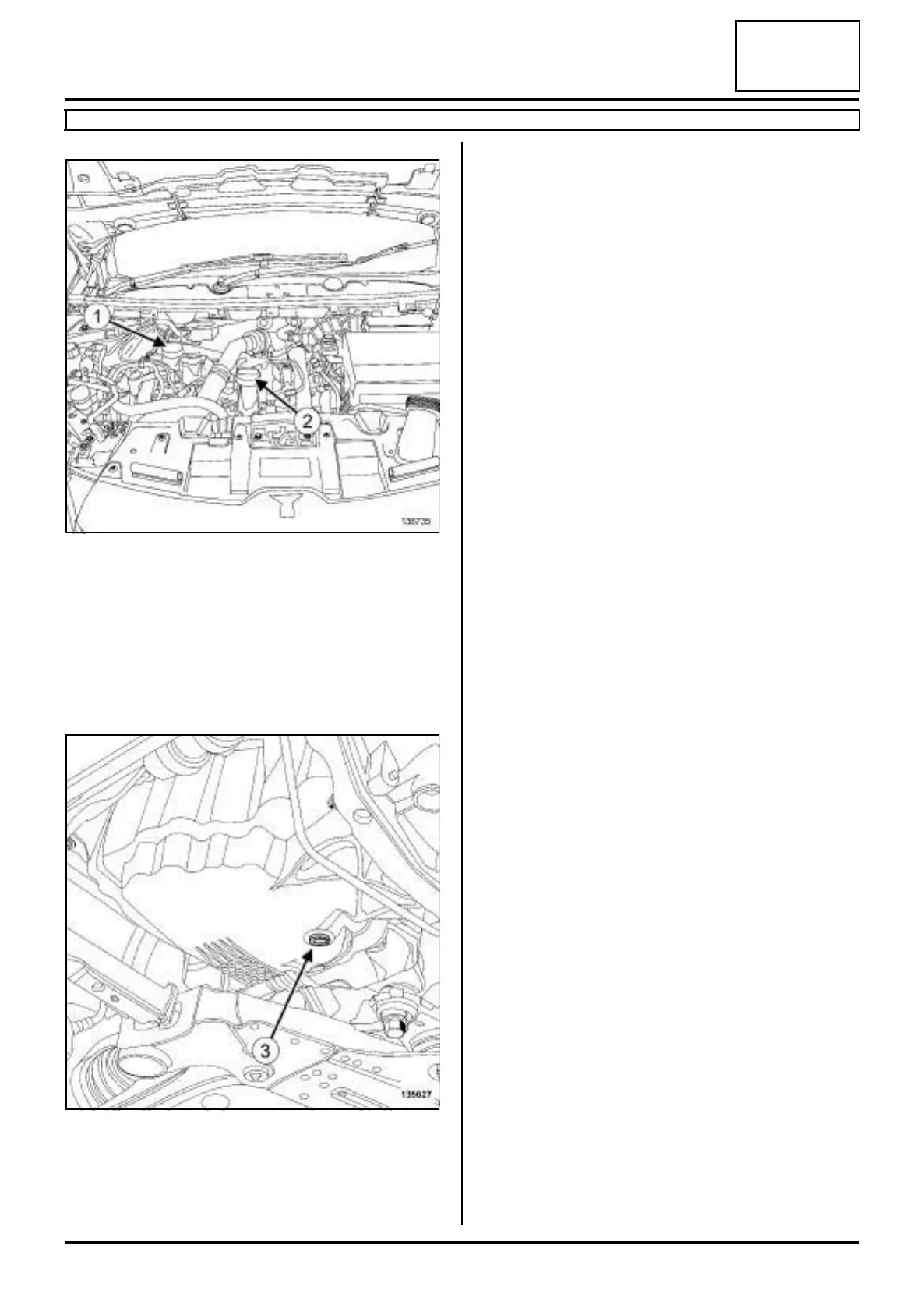

a Remove:
-the engine oil filler cap (1) ,
-the dipstick (2) ,
-the engine undertray bolts,
-the engine undertray.
a Place the oil recovery container under the engine.
a Remove the drain plug (3) from the engine oil sump
using the tool (Mot. 1018) or a oil draining wrench.
a Let the engine oil flow out.
a Remove the drain plug seal.
a Refit a new seal on the drain plug.
a Screw the drain plug onto the engine oil sump.
a Torque tighten the drain plug (20 N.m) using a tor-
que wrench and a 8 mm square drain plug soc-
ket.
a Use a cloth to wipe away any oil drips on the engine
oil sump.
a Remove the oil recovery container.
a Refit the engine undertray.
IV - FILLING
a Position the vehicle back on the ground.
a Fill with engine oil, observing the type of engine oil
recommended by the manufacturer (see Engine oil:
Specifications) (Technical Note 6013A, 04A, Lubri-
cants).
a Wait at least 10 minutes.
a Check the oil level using the dipstick.
a Top up the engine oil level if necessary.
a Refit:
- the engine oil filler cap,
- the dipstick.
136735
135627
