13C-8
PREHEATING
Heater plugs Removal - Refitting
K9K, and 830
13C
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Remove:
-the engine cover,
-the turbocharger air outlet pipe (see 12B, Turbo-
charging, Intercooler air inlet pipe: Removal -
Refitting, page 12B-41) .

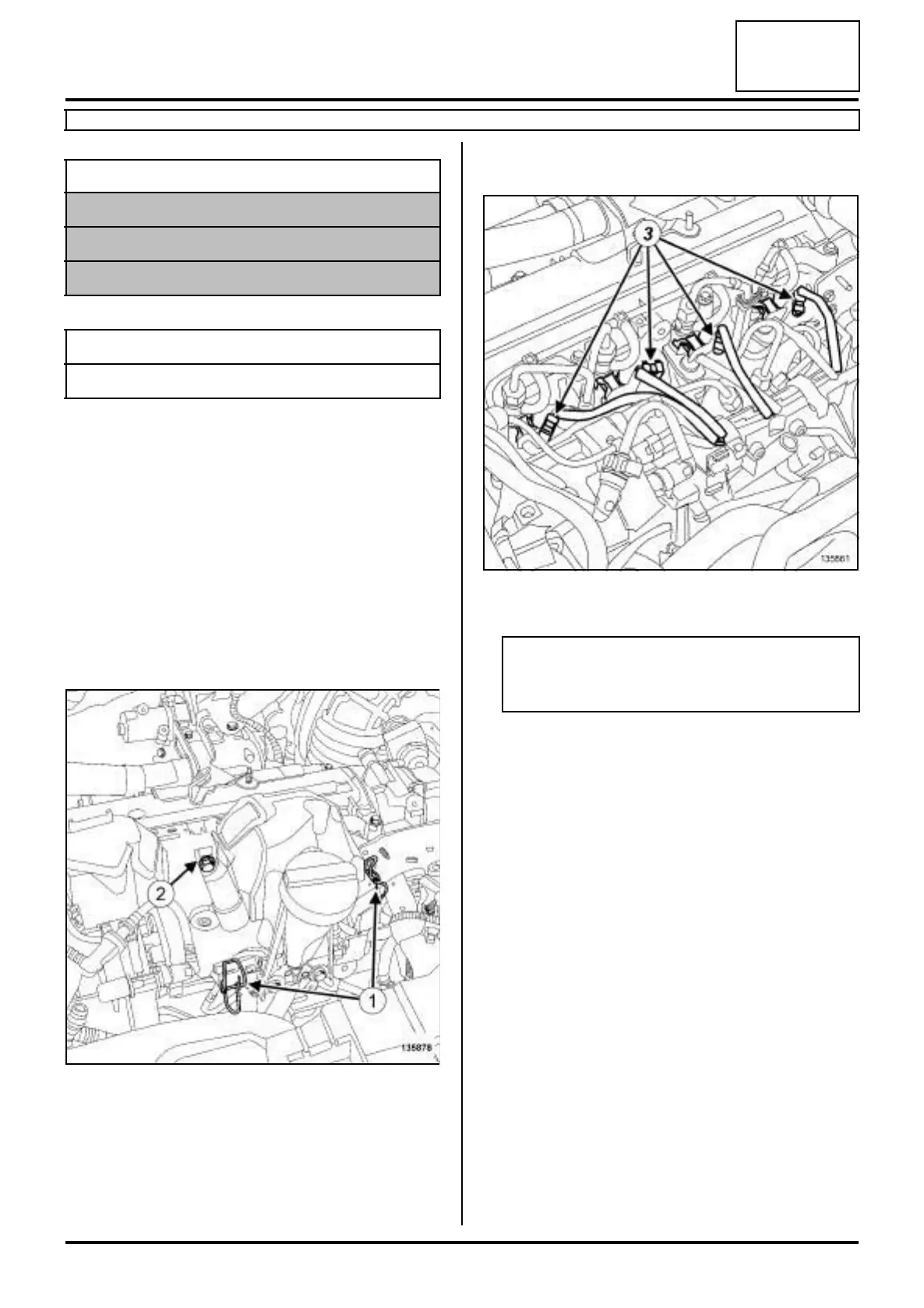

a Unclip the injector rail protector cover at (1) .
a Remove:
-the injector rail protector cover bolt (2) ,
-the injector rail protector cover,
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Disconnect the connector (3) from each heater plug.
a Clean around the outside of the heater plugs with a
compressed air nozzle to prevent any impurities
from entering the cylinders.
Essential equipment
compressed air nozzle
tool for removing heater plugs
hinged wrench for heater plug
Tightening torquesm
heater plugs 15 N.m
135878
135861
IMPORTANT
Wear goggles with side protectors for this opera-
tion.
