10A-74
ENGINE AND CYLINDER BLOCK ASSEMBLY
Oil level sensor: Removal - Refitting
F9Q
10A

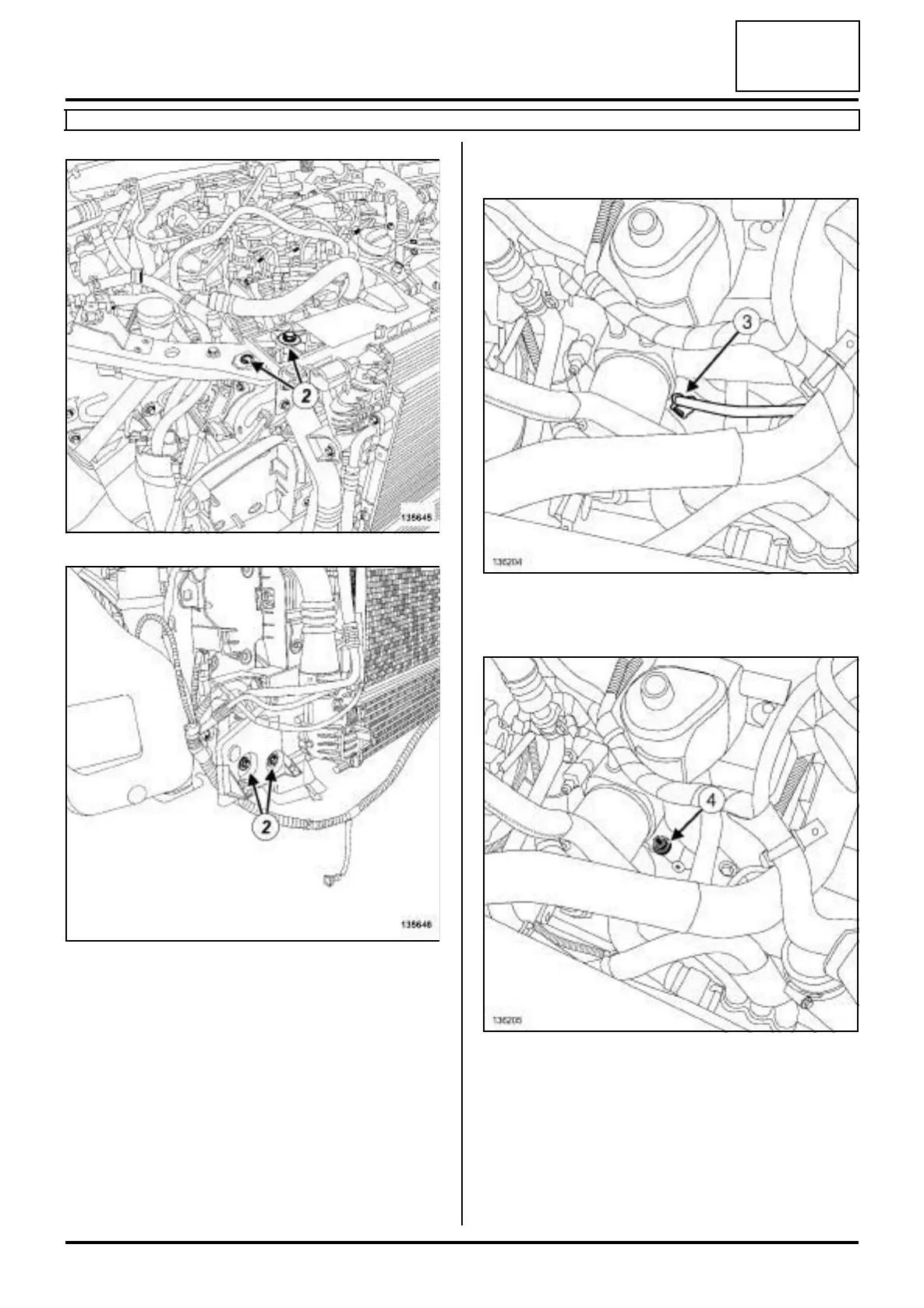

a Remove the front end panel bolts (2) .
a Tilt the front end panel.
a Remove the intercooler air outlet pipe (see 12B,
Turbocharging, Intercooler air outlet pipe: Re-
moval - Refitting, page 12B-56) .
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Disconnect the connector (3) from the oil level sen-
sor.
a Remove the oil level sensor (4) .
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
a Refit the oil level sensor.
135645
135646
136204
136205
