10A-92
ENGINE AND CYLINDER BLOCK ASSEMBLY
Multifunction support: Removal - Refitting
F4R
10A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Drain the refrigerant circuit using a refrigerant char-
ging station (see Coolant circuit Draining - Refil-
ling) .
a Disconnect the battery (see Battery : Removal -
Refitting) (80A, Battery).
a Remove:
-the engine cover,
-the engine undertray bolts,
-the engine undertray,
-the front wheels (see Wheel: Removal - Refitting)
(35A, Wheels and tyres),
-the front section of the front wheel arch liners (see
Front wheel arch liner: Removal - Refitting)
(55A, Exterior protection),
-the front bumper (see Front bumper: Removal -
Refitting) (55A, Exterior protection),
-the upper air deflector,
-the side air deflectors,
-the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting,
page 11A-7) ,
-the headlights (see Front headlight: Removal -
Refitting) (80B, Headlights),
-the front bumper supports (see Front bumper
support: Removal - Refitting) (42A, Front upper
structure),
-the audible warning (see Horn: Removal - Refit-
ting) (82B, Horn),
-the front impact cross member (see Front impact
cross member: Removal - Refitting) (41A, Front
lower structure),
-the bonnet catch (see Bonnet latch: Removal -
Refitting) (52A, Non-side opening element mecha-
nisms).

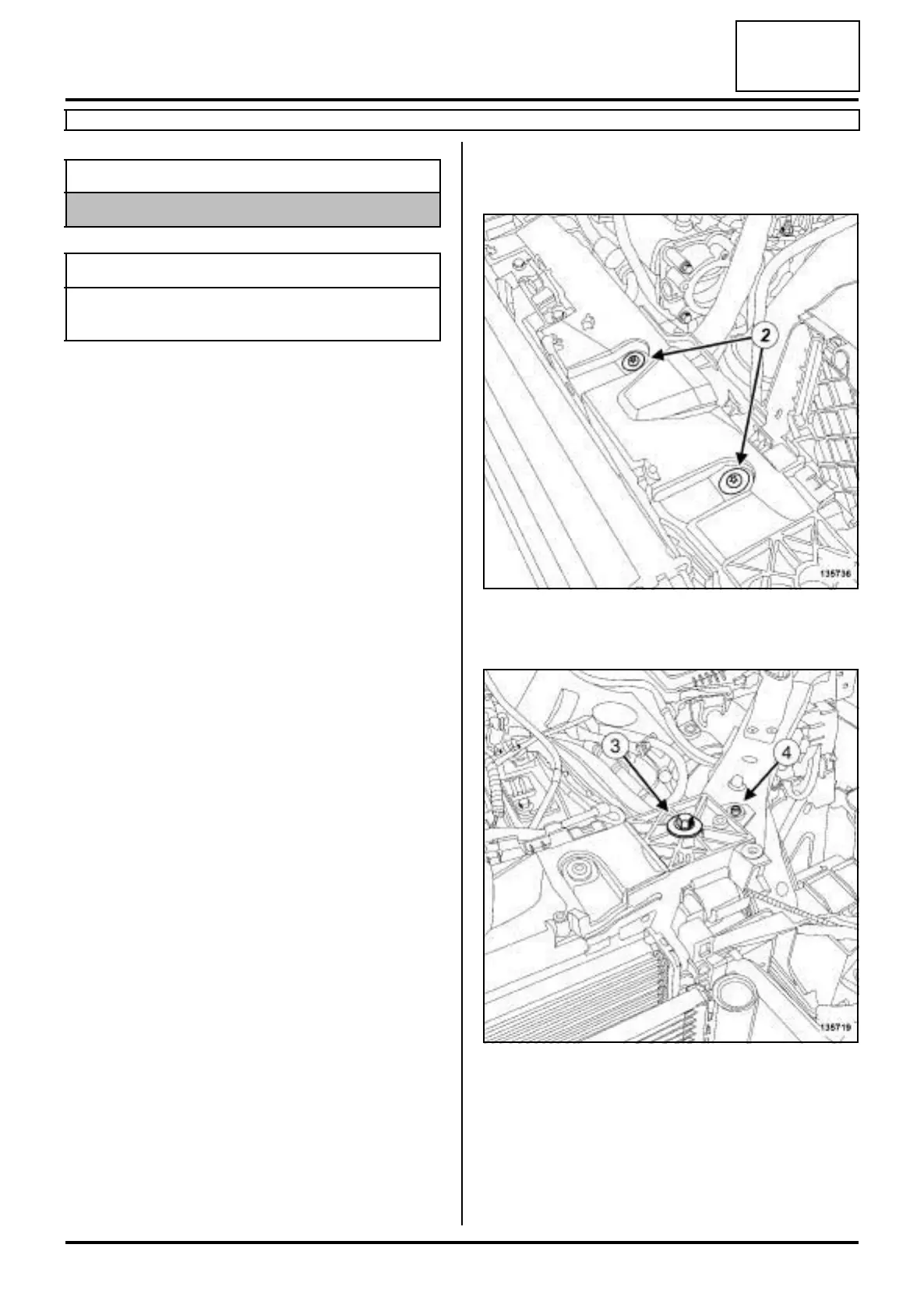

a Remove the bolts (2) from the wiring channel of the
engine cooling fan assembly.
a Remove:
- the upper bolts (4) from the front end panel,
- the front end panel clips (3) .
Essential equipment
refrigerant charging station
Tightening torquesm
multifunction support
bolts
44 N.m
135736
135719
