PARKING AIDS
3
Driving - 273

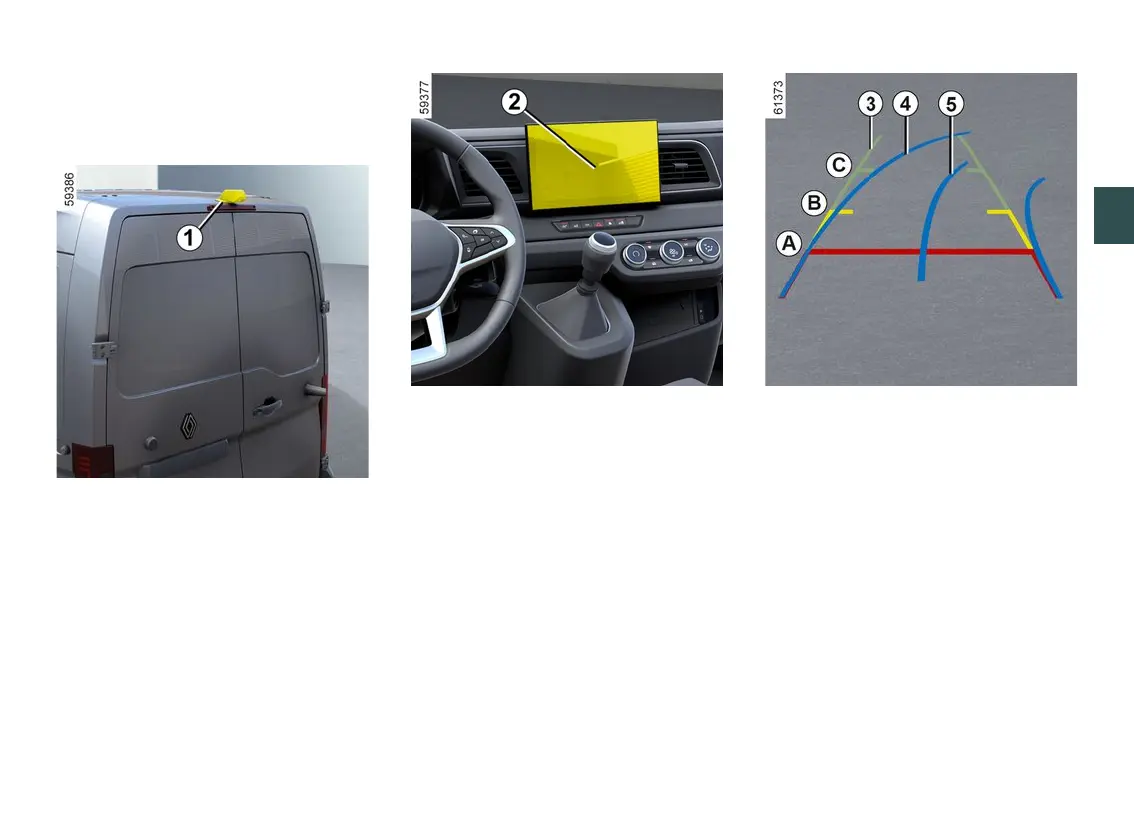

Reversing camera
Operation
When reverse gear is engaged, the
camera
1
locatedattherearoftheve
hicletransmitsaviewoftheareabe
hindthevehicletothemultimediadis
play
2
accompanied, depending on
the vehicle, by three guide lines
3
,
4
or
5
(fixed, moving and trailer guide
lines).
This system uses several guidelines
for its operation (mobile for trajectory
and fixed for distance). When the red
zoneisreached,usethebumperim
age to stop accurately.
Fixed guide lines
3
The fixed gauge includes coloured
markers
A
,
B
and
C
indicating the
distance behind the vehicle:
–
A
(red)atapproximately30cen
timetres from the vehicle;
–
B
(yellow)atapproximately70cen
timetres from the vehicle;
–
C
(green) at approximately 150
centimetres from the vehicle.
Thisgaugeremainsfixedandindi
cates the vehicle trajectory if the
wheels are in line with the vehicle.
Moving guide lines
4
Thisisshowninblueonthemultime
dia screen
2
. It indicates the vehicle
trajectory according to the position of
the steering wheel.
Trailer guide lines
5
Thisisshowninblueonthemultime
dia screen
2
.Thisindicatesthetrajec
tory of the trailer towbar according to
the steering wheel position. It allows
the driver to position the towbar as
close as possible to the trailer's towing
head.
"Trailer view"
Inforwardgear,ifatrailerisconnect
ed,pressthe"Camera"menuinthe
"Vehicle" World on your multimedia
screen
2
to enable the camera
1
to
transmit a view of the surrounding area
during approximately 30 seconds.
