Renesas RA6 Series User Manual

Renesas RA Family MCK-RA6T2 User's Manual
R12UZ0091EJ0100 Rev 1.00 Page 8 of 38
August 3, 2021

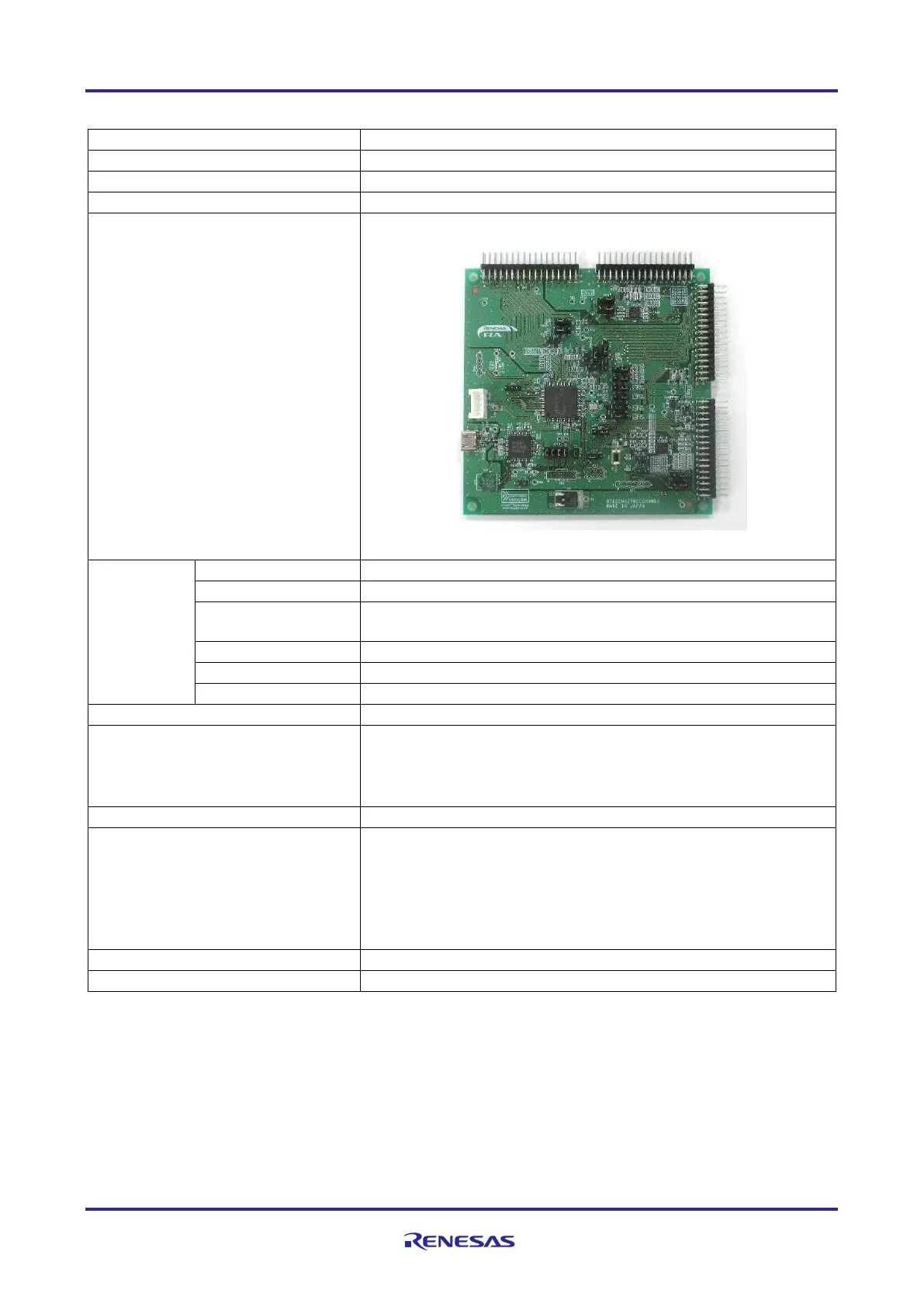

Table 4-3 MCK-RA6T2 specification (3/4)
item
Specification
Product name
CPU Board
Board part No.
RTK0EMA270C00000BJ
Compatible inverter board
RTK0EM0000B12020BJ
External view
Note: The actual product may differ from this photo.
Mounted MCU
Product group
RA6T2 group
Product No.
R7FA6T2BD3CFP
CPU maximum
operating frequency
240MHz
Bit count
32 bit
Package / Pin number
LFQFP / 100 pin
RAM
64K byte
MCU input clock
10MHz (Generate with external crystal oscillator)
Power supply
DC 5V
Select one way automatically from the below
 Power is supplied from compatible inverter board
 Power is supplied from USB connector
Debugger
J-Link-OB (Onboard debugger circuit)
Connector
 Inverter board connector (2 sets)
 USB connector for J-Link OB
 SCI connector for Renesas Motor Workbench communication
 Through hole for CAN communication
 Through hole for SPI communication
 20 pin through hole for Arm debugger
Switch
MCU reset switch
LED
User-controllable LED x6, Power LED x1
