Renesas RA Family MCK-RA6T2 User's Manual
R12UZ0091EJ0100 Rev 1.00 Page 9 of 38
August 3, 2021

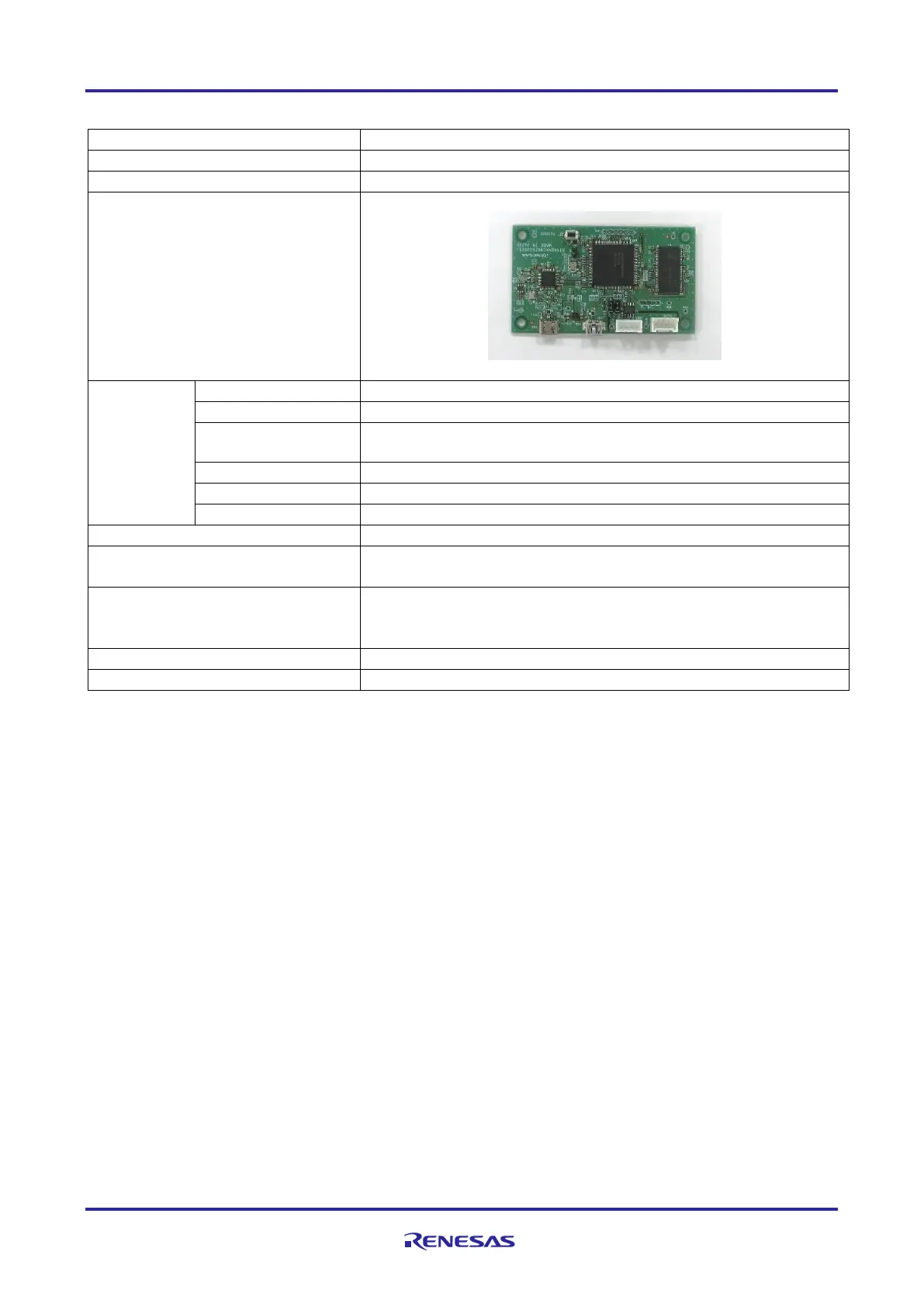

Table 4-4 MCK-RA6T2 specification (4/4)
item
Specification
Product name
Communication Board
Board part No.
RTK0EMXC90Z00000BJ
External view
Note: The actual product may differ from this photo.
Mounted MCU
Product group
RX72N group
Product No.
R5F572NNDDFB
CPU maximum
operating frequency
240MHz
Bit count
32 bit
Package / Pin number
LFQFP / 144 pin
RAM
1M byte
MCU input clock
20MHz (Generate with external crystal oscillator)
Power supply
DC 5V
Power is supplied from USB connector
Connector
USB Type-C connector for PC
SCI connector for CPU board
USB miniB connector (not available for users)
Isolation
Between SCI connector and MCU
Switch
MCU external reset switch
