2.10 Audio Interface
RTK79210XXB00000BE is equipped with a Cirrus audio CODEC WM8978 × 1 for audio interface. The WM8978
register control is performed on the channel 0 of the RZ/A2M on-chip Renesas serial peripheral interface (RSPI), and the
input/output control for audio data is performed on the channel 0 of the RZ/A2M on-chip serial sound interface (SSIF-2).
Figure 2.10.1 shows the audio interface block diagram, and Table 2.10.1 shows the function setting table of DIP
switches SW6-1 and SW6-2 for system setting.

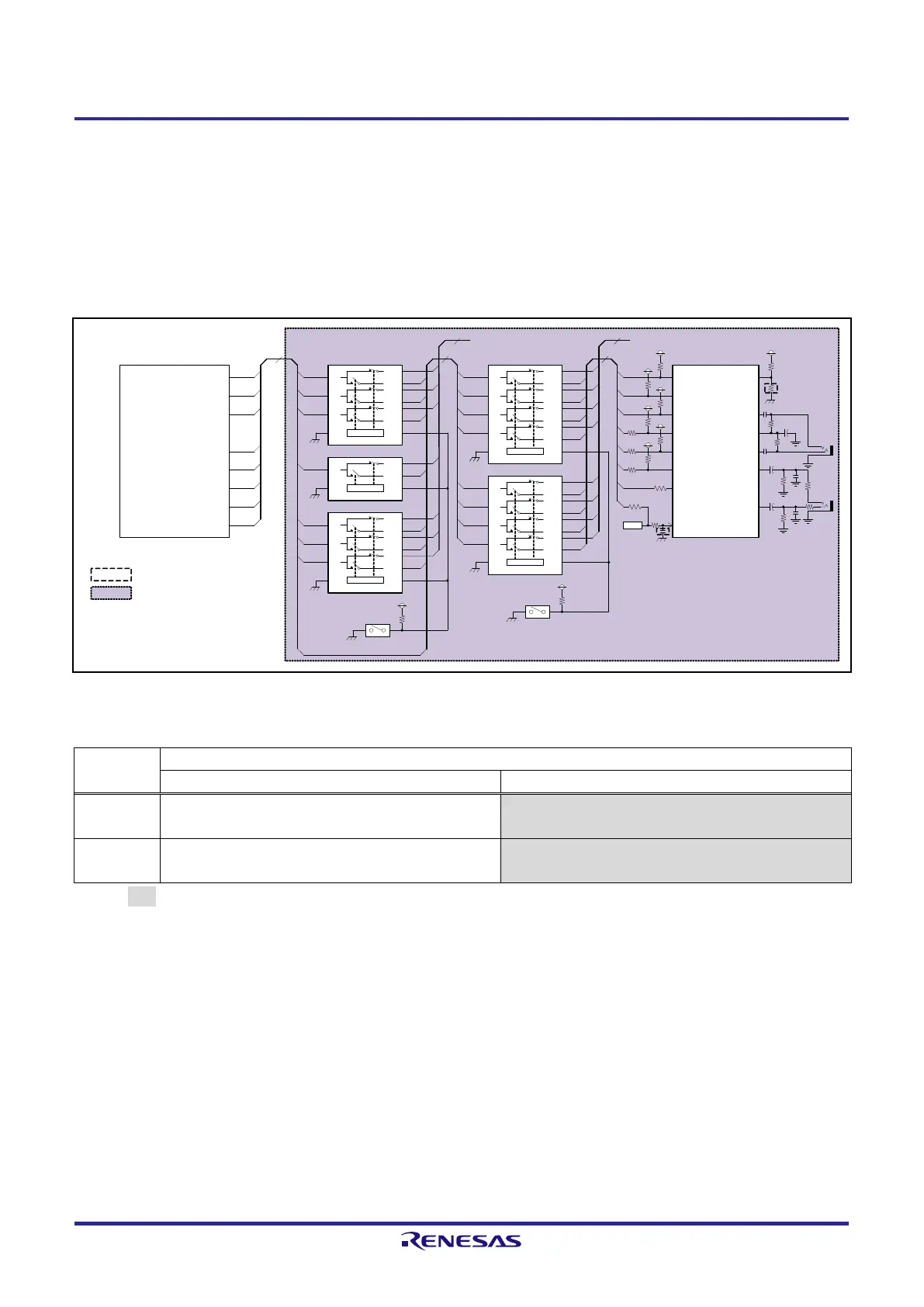

Figure 2.10.1 Audio Interface Block Diagram
Table 2.10.1 Function Setting Table of DIP Switches SW6-1 and SW6-2 for System Setting
DIP
switch
Function
ON
OFF
SW6-1
P8_4 and P8_[7 :6], P9_[6 :3] are used as SDRAM
control pins.
P8_4 and P8_[7 :6], P9_[6 :3] are used as audio
interface pins (default settings).
SW6-2
P8_4 and P8_[7 :6], P6_4, P9_[6 :3] are used as
DRP pins.
P8_4 and P8_[7 :6], P6_4, P9_[6 :3] used as audio
interface pins (default settings).
[Note] indicates setting functions.
