Renesas RZ/A Series - LVDS Interface

RZ/A2M SUB Board RTK79210XXB00000BE 2. Function specifications
R20UT4398EJ0100 Rev.1.00 2-41
2018.10.11
2.16 LVDS Interface
RTK79210XXB00000BE is equipped with a 1.25mm pitch 20 pin connector, which allows connection with the
RZ/A2M LVDS interface. There is also a connector for the LVDS backlight.

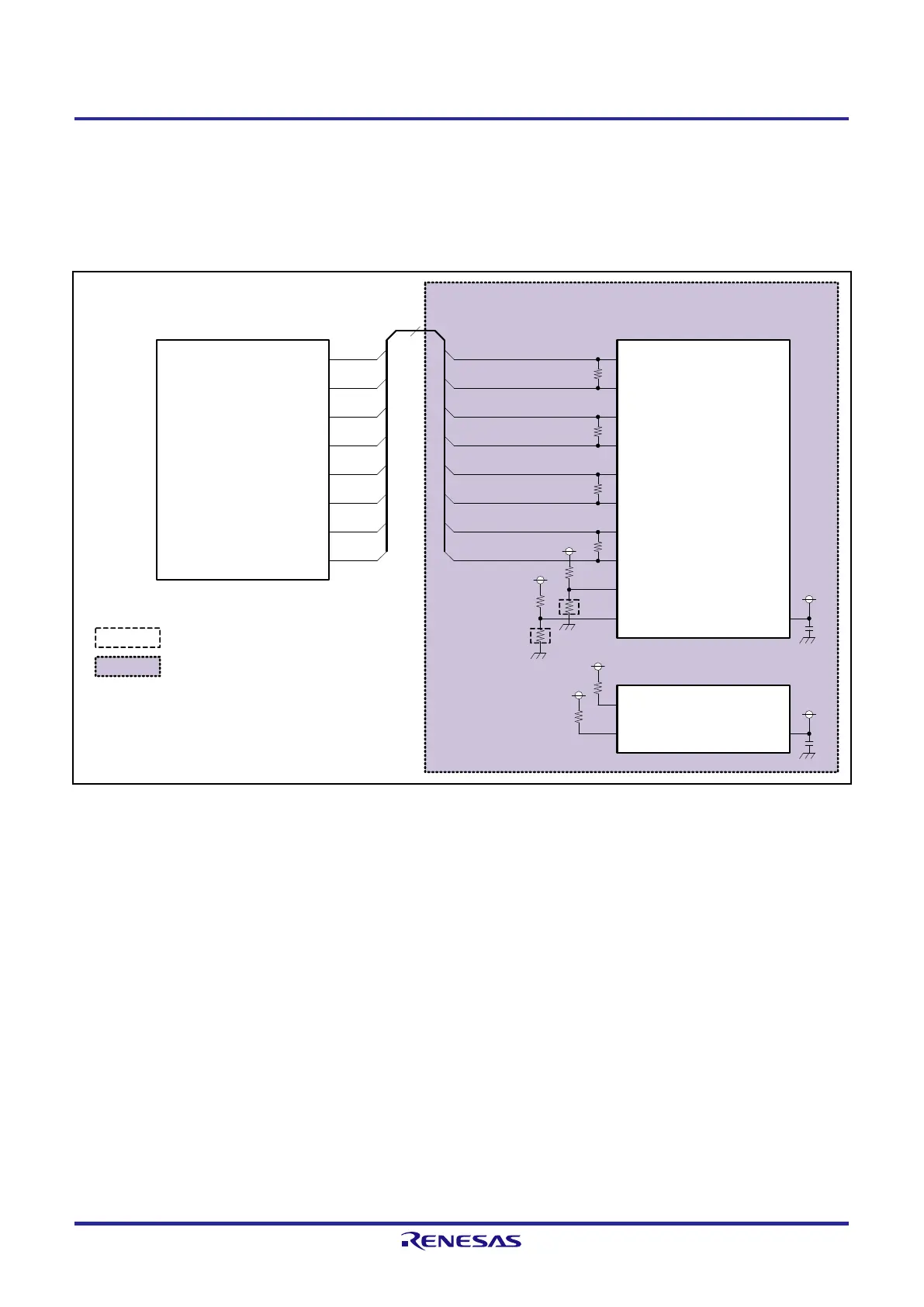

Figure 2.16.1 shows the LVDS interface block diagram.
Figure 2.16.1 LVDS Interface Block Diagram
CLKM
RZ/A2M (U1)
P4_0 / TXOUT0P
8
TX0P
P4_1 / TXOUT0M
P4_2 / TXOUT1P
P4_3 / TXOUT1M
P4_4 / TXOUT2P
P4_5 / TXOUT2M
TX0M
TX1P
TX1M
TX2P
TX2M
P4_6 / TXCLKOUTP
P4_7 / TXCLKOUTM
CLKP
CLKM
TX0P
TX0M
TX1P
TX1M
TX2P
TX2M
CLKP
3.3V
3.3V
3.3V
5V
3.3V
3.3V
Back light connector（CN16）
DIMMER
ENABLE VLED
0=Dark, 1=Bright
0=Disable, 1=Enable
LVDS connector（CN14）
RX0+
CLK+
CLK-
VCC
RX0-
RX1+
RX1-
RX2+
RX2-
L/R or RX3-
U/D or RX3+
Note: Red text indicates a function used .
：Indicates a function not implemented .
：Indicates a SUB board.
