Renesas RZ/A Series - MIC-In Pin Jack (CN3)

RZ/A2M SUB Board RTK79210XXB00000BE 3. Operating specifications
R20UT4398EJ0100 Rev.1.00 3-9
2018.10.11
3.1.3 Mic-in Pin Jack (CN3)
RTK79210XXB00000BE is equipped with the mic-in pin jack (CN3).
Figure 3.1.5 shows the mic pin jack layout diagram, and Table 3.1.5 shows the mic-in pin jack layout table.

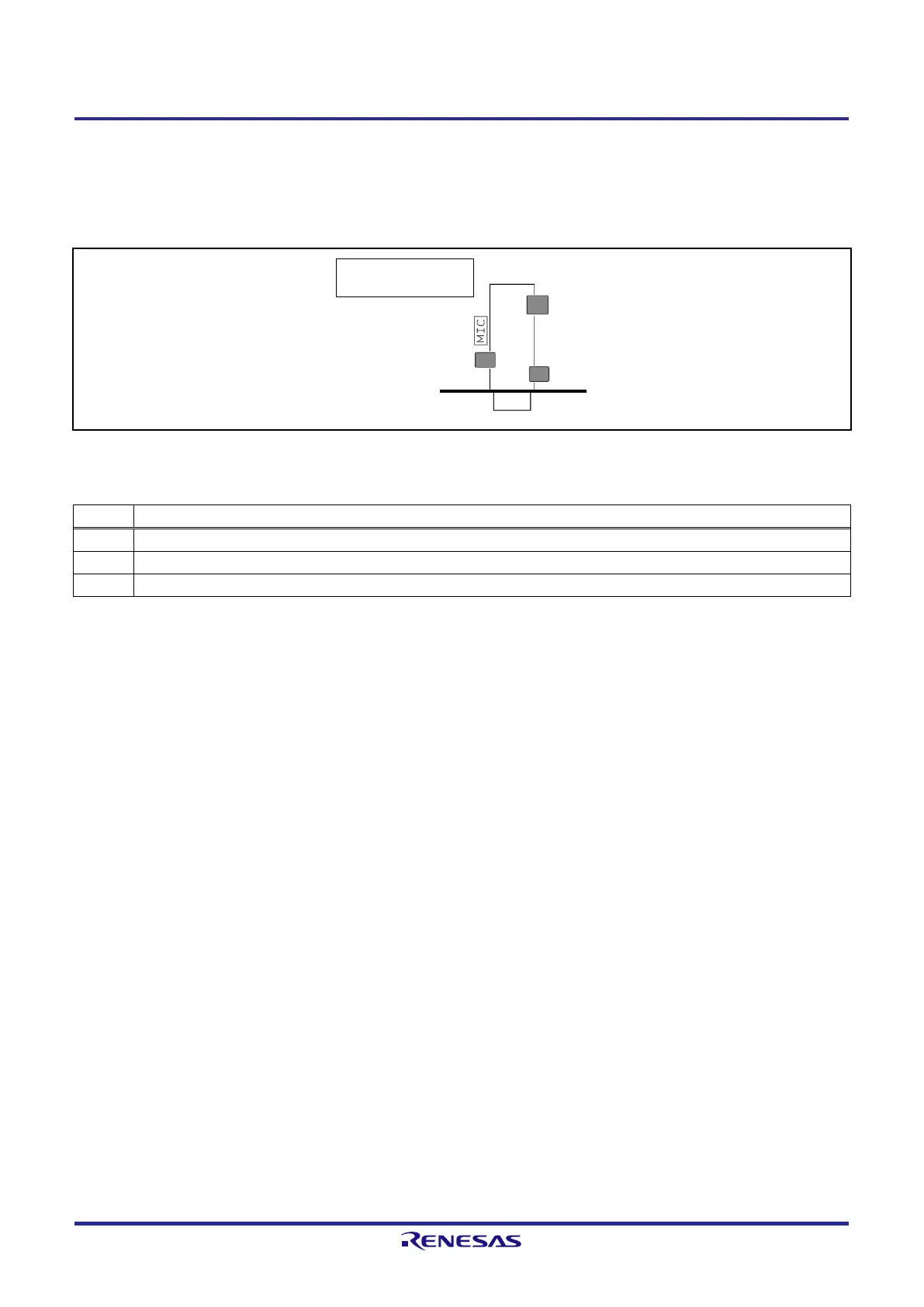

Figure 3.1.5 Mic-in Pin Jack (CN3) Layout Diagram
Table 3.1.5 Mic-in Pin Jack (CN3) Layout Table
Pin
Signal name
1
GND (AVss)
2
L2 (audio CODEC Lch analog input pin)
3
R2 (audio CODEC Rch analog input pin)
1
2
3
CN3
C side top view
