3.3 External Dimensions

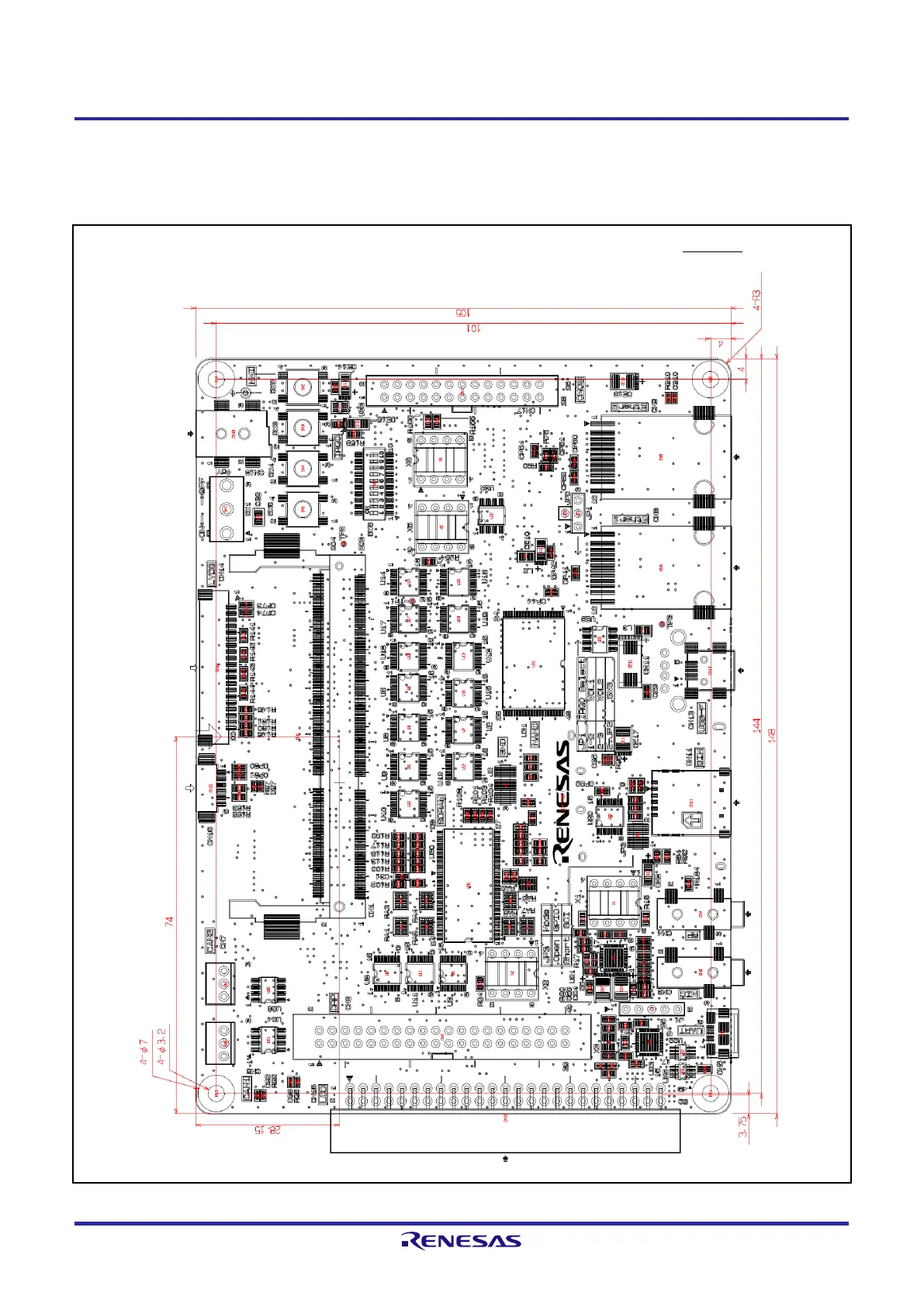

Figure 3.3.1 shows the external dimensions of the RTK79210XXB00000BE C side top view.
＜C side top view＞ unit: mm
Figure 3.3.1 RTK79210XXB00000BE External Dimensions Diagram
