3.1.9 LVDS Connector (CN14, CN16)
RTK79210XXB00000BE is equipped with the LVDS connector (CN14) and the back light connector (CN16) for
power supply.
Figure 3.1.12 shows the LVDS connector and LVDS backlight connector pin layout diagram, Table 3.1.12 shows the
LVDS connector pin layout table, and Table 3.1.13 shows the LVDS back light connector pin layout table.

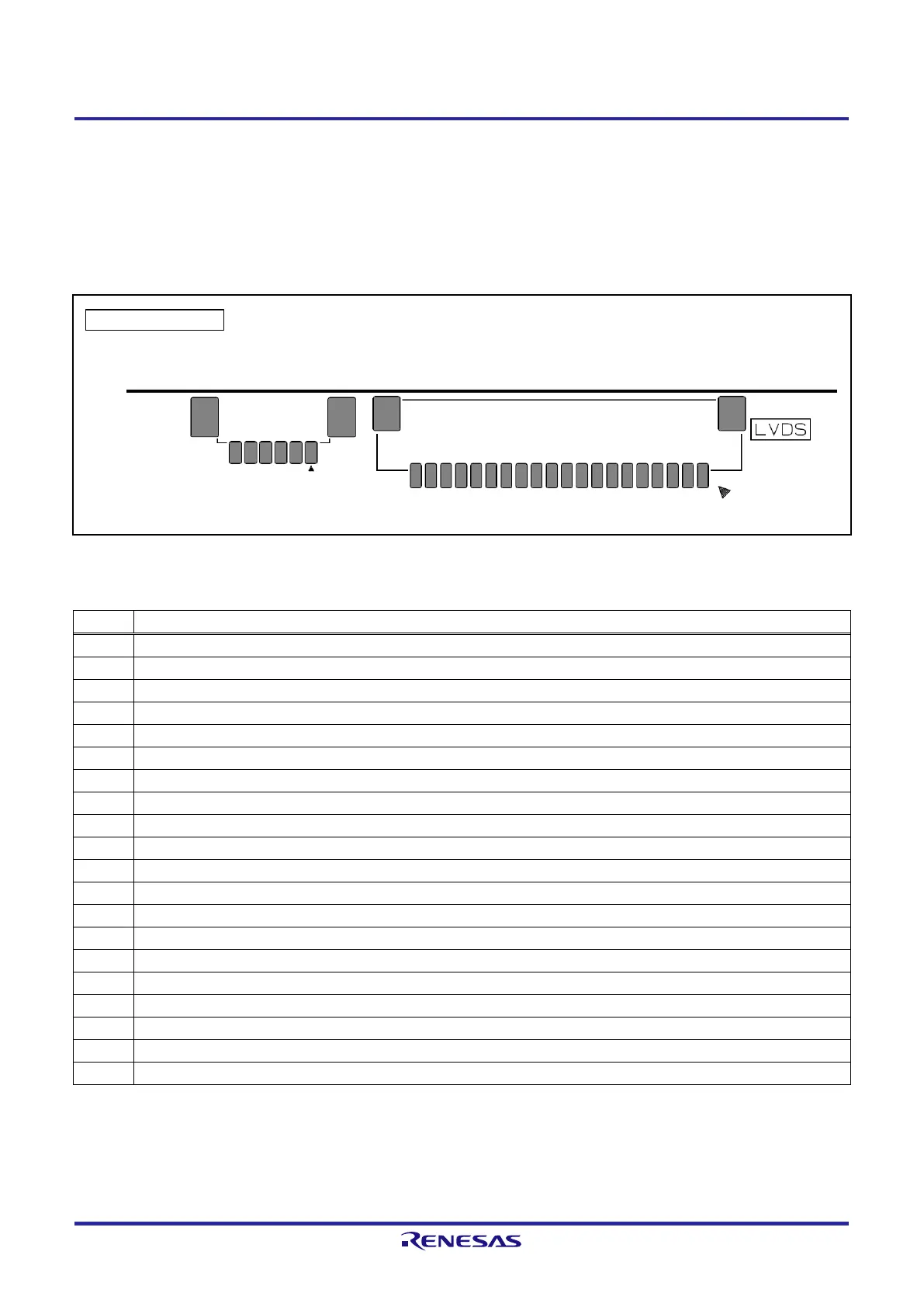

Figure 3.1.12 LVDS Connector (CN14, CN15) Pin Layout Diagram
Table 3.1.12 LVDS Connector (CN14) Pin Layout Table
Pin
Signal name
1
Vcc (+3.3V)
2
Vcc (+3.3V)
3
GND (Vss)
4
GND (Vss)
5
RX0- (P4_1 / TXOUT0M)
6
RX0+ (P4_0 / TXOUT0P)
7
GND (Vss)
8
RX1- (P4_3 / TXOUT1M)
9
RX1+ (P4_2 / TXOUT1P)
10
GND (Vss)
11
RX2- (P4_5 / TXOUT2M)
12
RX2+ (P4_4 / TXOUT2P)
13
GND (Vss)
14
CLK- (P4_7 / TXCLKOUTM)
15
CLK+ (P4_6 / TXCLKOUTP)
16
GND (Vss)
17
L/R or RX3- (connects to +3.3V via 680Ω resistor)
18
U/D or RX3+ (connects to +3.3V via 680Ω resistor)
19
GND (Vss)
20
GND (Vss)
[Note] Red characters indicate functions in use.
120
1
6
CN14
CN16
C side top view
