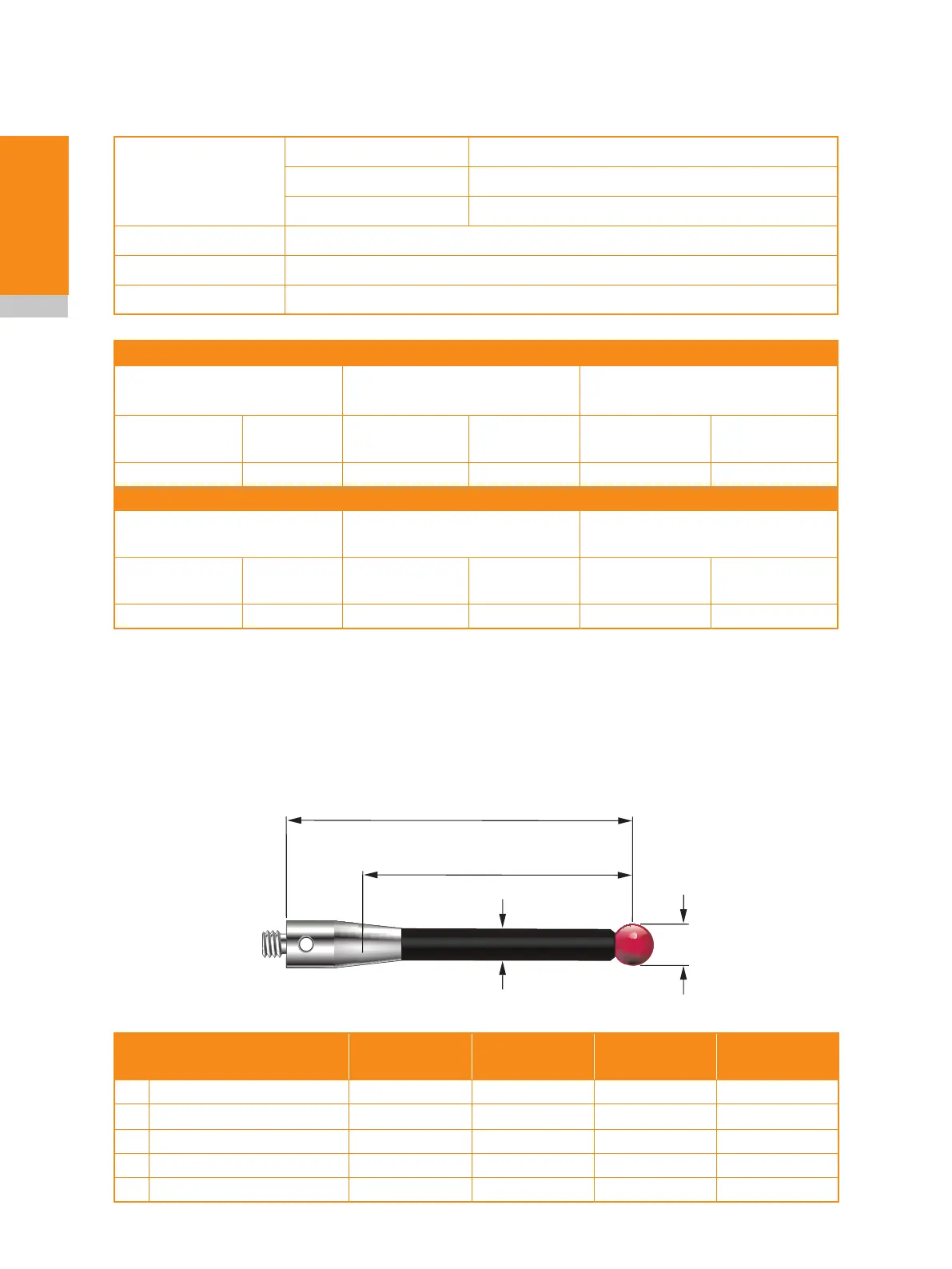

OMP400 basics
A
D
C
B
Recommended styli
High modulus carbon fibre styli are designed to minimise pre-travel and improve accuracy, as the
stem material is extremely stiff. This inherent stiffness makes the following styli most suitable for strain
gauge applications.
Part number A-5003-7306
Carbon fibre
A-5003-6510
Carbon fibre
A-5003-6511
Carbon fibre
A-5003-6512
Carbon fibre
A Ball diameter mm (inch) 6.0 (0.24) 6.0 (0.24) 6.0 (0.24) 6.0 (0.24)
B Length mm (inch) 50.0 (1.97) 100.0 (3.94) 150.0 (5.91) 200.0 (7.88)
C Stem diameter mm (inch) 4.5 (0.18) 4.5 (0.18) 4.5 (0.18) 4.5 (0.18)
D EWL mm (inch) 38.5 (1.52) 88.5 (3.48) 138.5 (5.45) 188.5 (7.42)
Mass (grammes) 4.1 6.2 7.5 8.7
LEGACY optical transmission mode
Stand-by life
(typical)
5% usage = 72 minutes/day
(days-typical)
Continuous use
(hours-typical)
Standard power
mode
Low power
mode
Standard power
mode
Low power
mode
Standard power
mode
Low power
mode
One year One year 75 90 95 110
MODULATED optical transmission mode
Stand-by life
(typical)
5% usage = 72 minutes/day
(days-typical)
Continuous use
(hours-typical)
Standard power
mode
Low power
mode
Standard power
mode
Low power
mode
Standard power
mode
Low power
mode
One year One year 70 85 85 105
Environment IP rating IPX8, BS EN 60529:1992+A2:2013
Storage temperature −10 °C to +70 °C (+14 °F to +158 °F)
Operating temperature +5 °C to +50 °C (+41 °F to +122 °F)
Battery types 2 x 1/2 AA (3.6 V) Lithium Thionyl Chloride
Battery reserve life Approximately one week after a low battery warning is first given.
Typical battery life See table below.
