Renishaw OMP400 - Trigger Logic; Reviewing Probe Settings

4.1

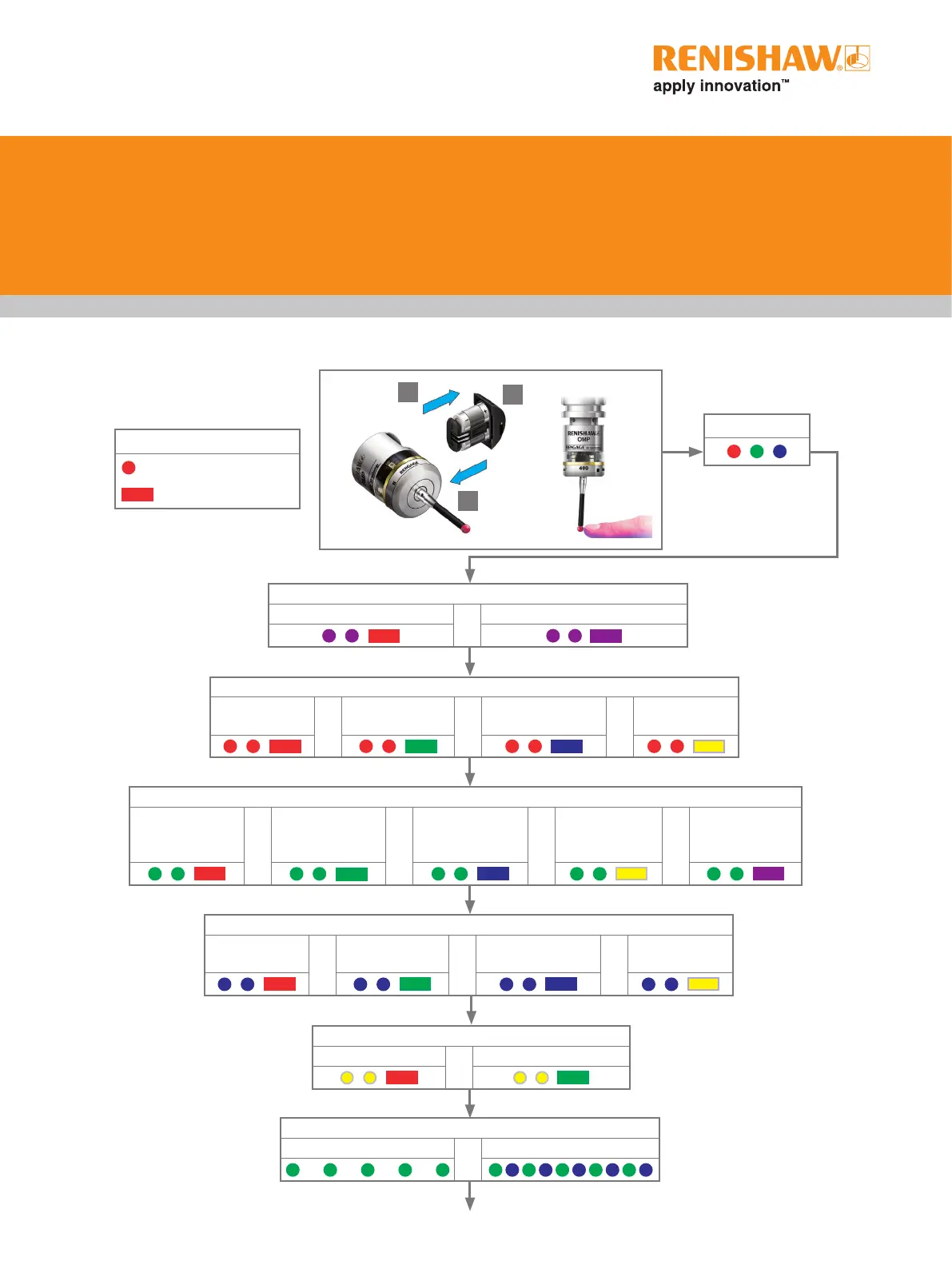

Trigger Logic™
> 5 s
1
2
3
Key to the symbols
LED short flash
LED long flash
Switch on method
Optical on (standard)
or
Optical on (3 second delay)
Switch off method
Optical off
or
Short timeout
12 s
or
Medium timeout
33 s
or
Long timeout
134 s
LED check
Probe in standby mode
Enhanced trigger filter setting and auto-reset facility
Auto-reset off
filter on
8 ms
or
Auto-reset off
filter on
16 ms
or
Auto-reset on
filter on
8 ms
or
Auto-reset on
filter on
16 ms
or
Auto-reset off
filter off
Battery status
Battery good
or
Battery low
Reviewing the current probe settings
Optical transmission method
Legacy
Start filter off
or
Legacy
Start filter on
or
Modulated
PROBE 1
or
Modulated
PROBE 2
Optical power
Low
or
Standard
X
