4.3
Trigger Logic™
X
> 5 s
1
2
3
Key to the symbols
LED short ash
LED long ash
Deect the stylus for less than
4 seconds to move to the next
menu option.
Deect the stylus for more
than 4 seconds to move to the
next menu.
To exit, leave the stylus
untouched for more than 20
seconds.
LED check
Battery status
Battery good
or
Battery low

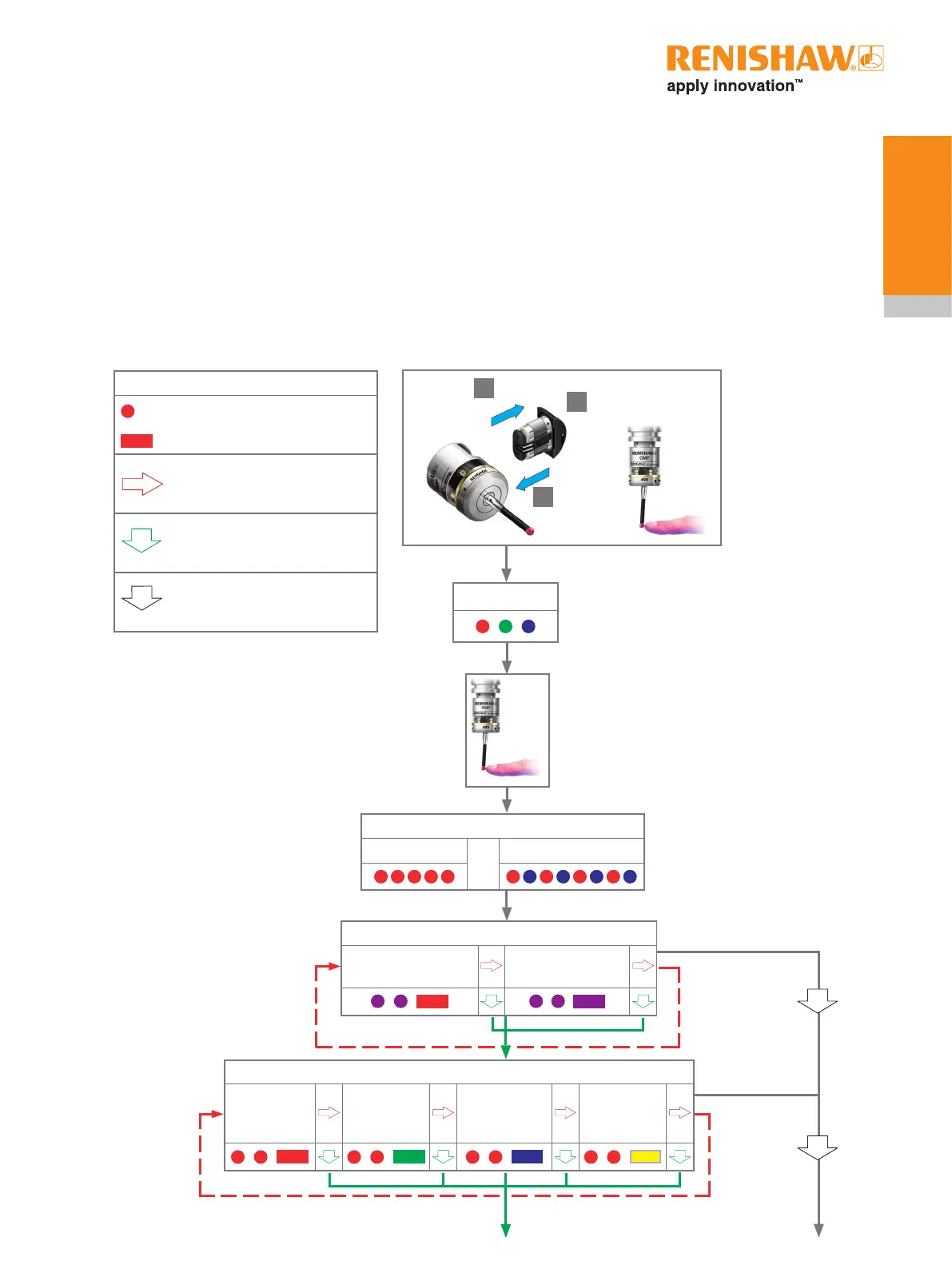

Changing the probe settings
Insert the batteries or, if they have already been installed, remove them for five seconds and then refit them.
Following the LED check, immediately deflect the stylus and hold it deflected until five red flashes have
been observed (if the battery power is low then each of the five red flashes will be followed by a blue flash).
Keep the stylus deflected until the "Switch on method" setting is displayed, then release the stylus.
The probe is now in configuration mode and Trigger Logic™ is activated.
Switch off method
Optical off Short
timeout
12 s
Medium
timeout
33 s
Long
timeout
134 s
Switch on method
Optical on
(standard)
Optical on
(3 second delay)
