Renishaw PH10 Series User Manual

17

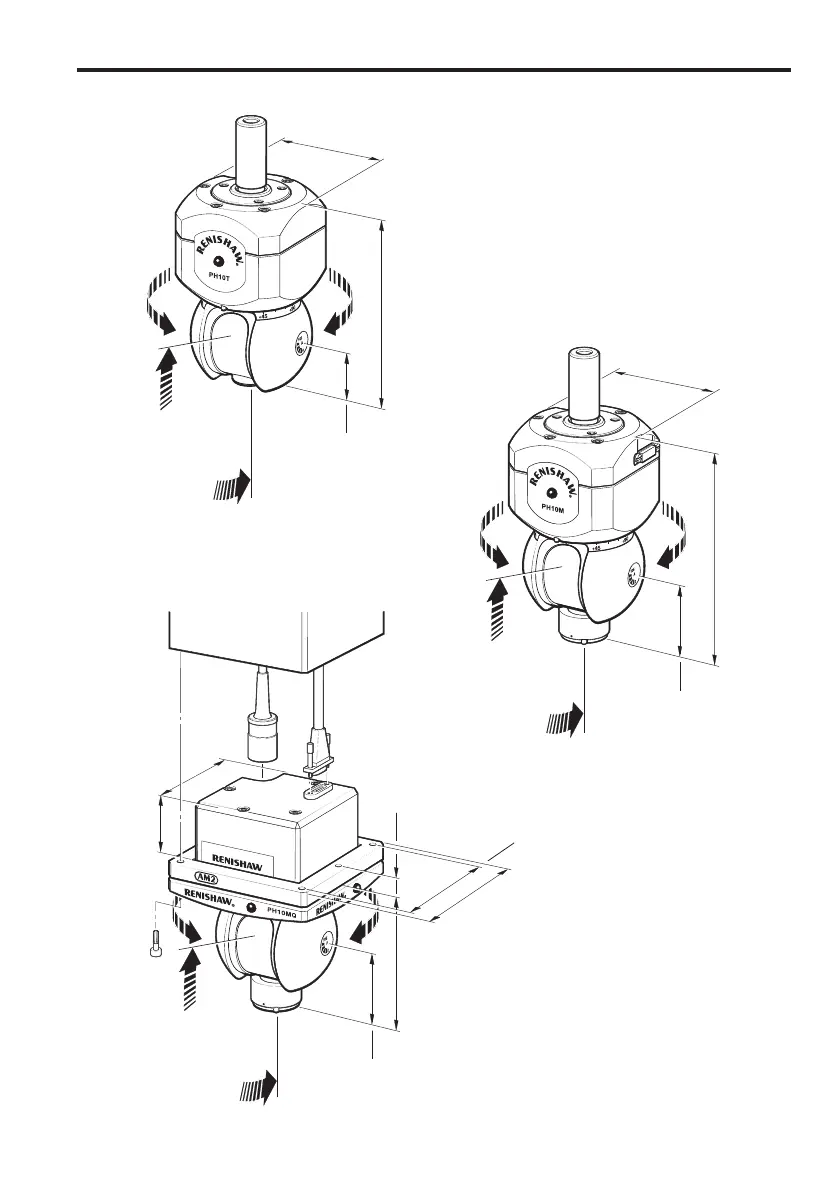

System description
62 mm (2.44 in)
117 mm
(4.6 in)
38 mm
(1.5 in)
A axis
B axis
PH10M
62 mm (2.44 in)
102 mm
(4.0 in)
25 mm
(0.98 in)
A axis
B axis
PH10T
A axis
B axis
73 mm
(2.87 in)
80 mm
(3.12 in)
square
38 mm
(1.5 in)
60 mm
(2.36 in)
square
34 mm
(1.34 in)
10 mm
(0.39 in)
70.5 mm
(2.78 in)
square
PH10MQ
