3.2 Trigger force gauge (gram gauge)
Probe trigger force is critical to ensure accuracy and reliable operation, this can be
easily measured and set using the gram gauge as shown in figure 15.
It is strongly recommended that the gram gauge is used when adjustments are to be
made to probe trigger force.
For further information on the trigger force gauge, please refer to the trigger force
gauge guide (Renishaw part number H-1000-4054).
NOTE: To convert mass in grams to trigger force in Newtons the following equation is
used:
Trigger force in Newtons = Mass in grams
100
For example:
8 grams = 0.08 N
100

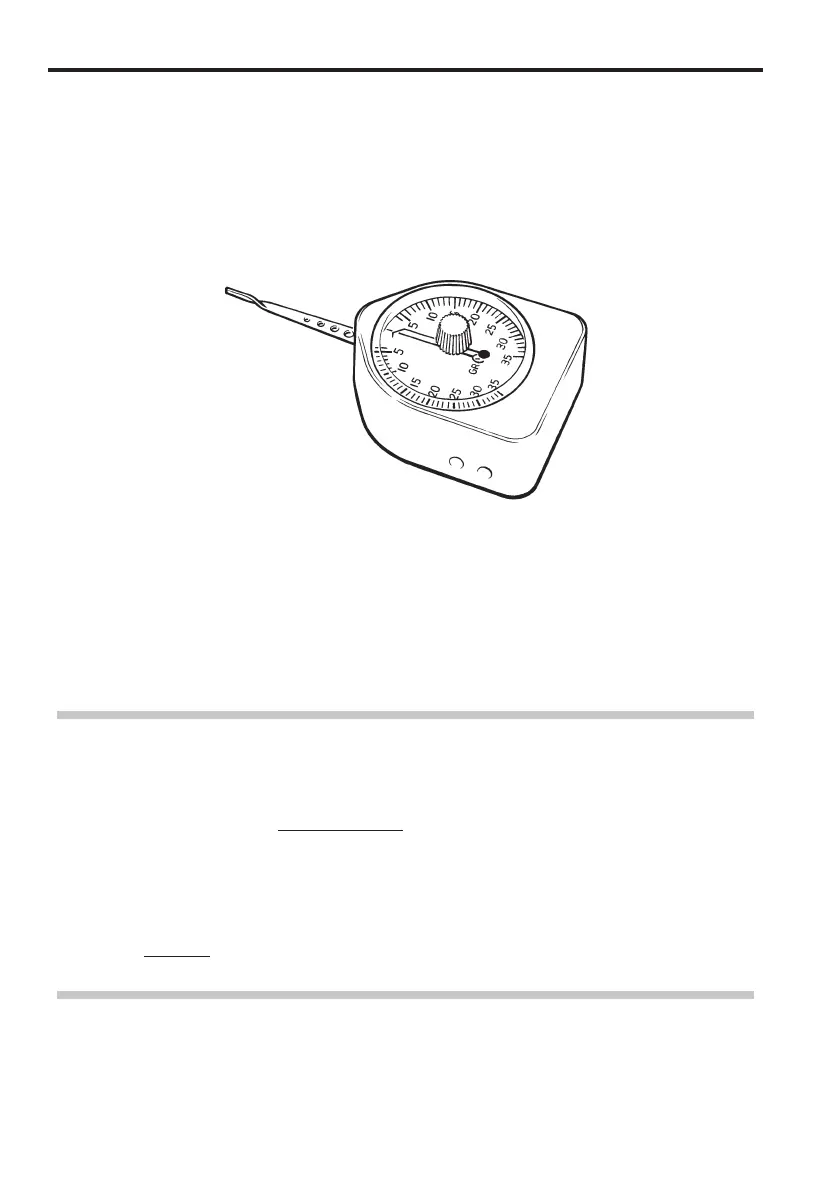

Figure 15 - Trigger force gauge
