Renishaw PH10 Series User Manual

33
Accessories
3.3 Machine checking gauge
The Renishaw machine checking gauge shown in figure 16 enables rapid and effective
interim checking of CMM performance as recommended by many standards for CMM
volumetric performance assessment.
Please contact your Renishaw representative to arrange a demonstration, or refer to
the machine checking gauge user’s guide (Renishaw part number H-1000-5080).

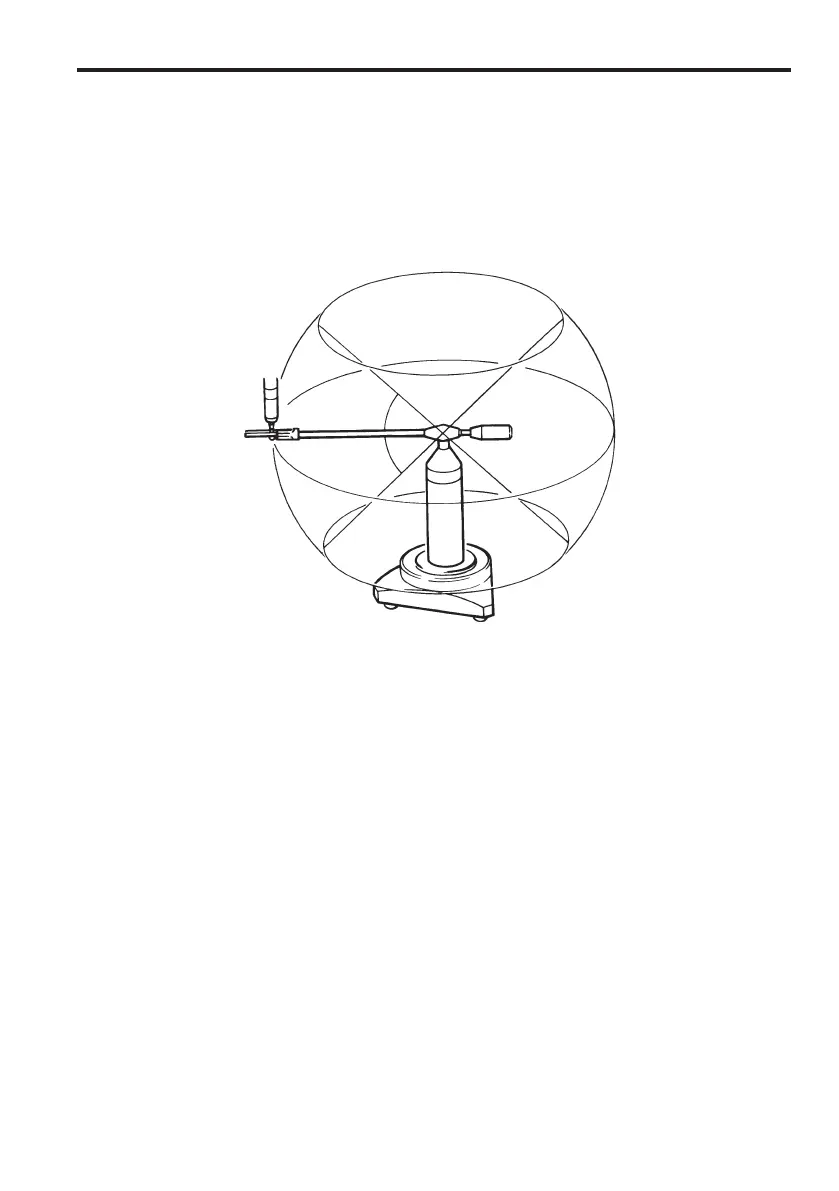

Figure 16 - Machine checking gauge
+45°
-45°
