System operation
4 System operation
4.1 Introduction

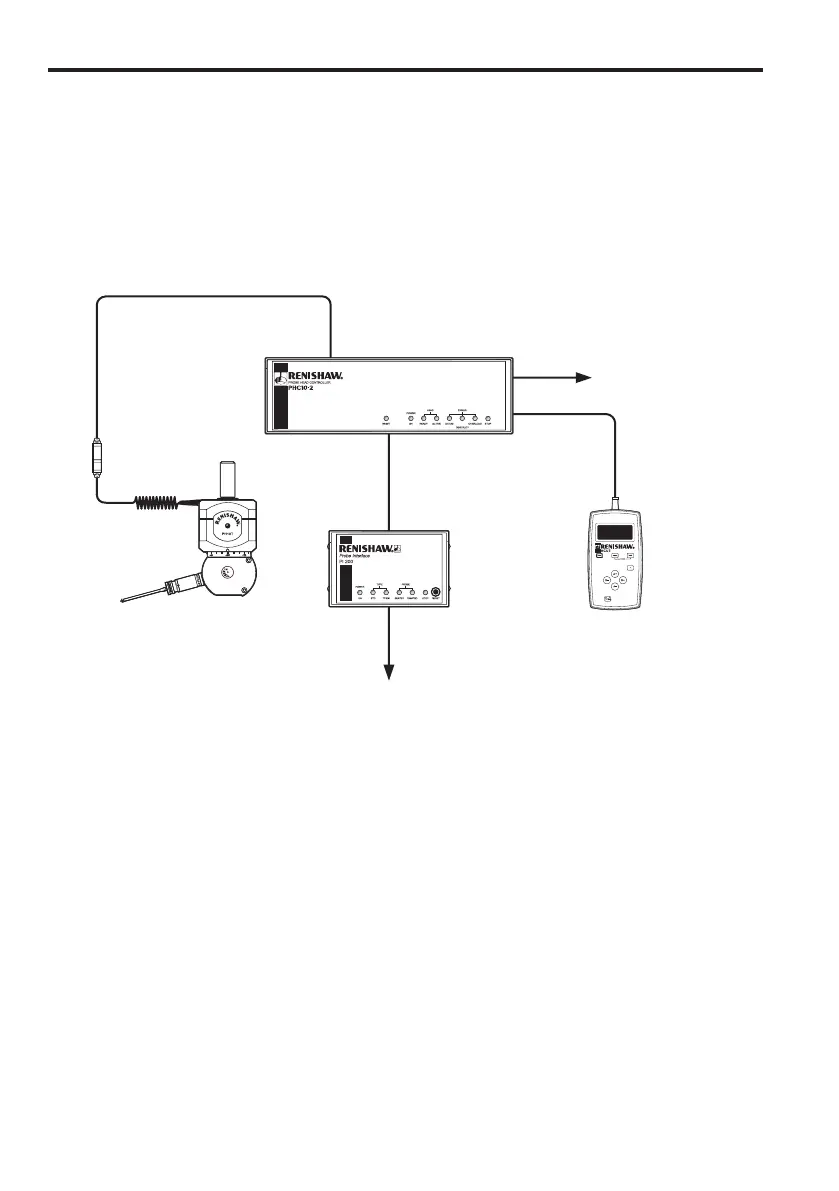

Figure 19 shows the basic installation configuration for the PH10 system.
Machine cable
Head cable
connects head to
machine cable
PHC10-2 head
controller
Communications
connection to
CMM computer
PICS product
interconnection cable
Probe interface
(PI 200)
Trigger output
to CMM
HCU1 hand
control unit
(optional)
Figure 20 - System configuration
4.2 Operating modes
The PH10 system can operate in one of two modes:
• Manualmode
• Automaticmode
