35
Accessories

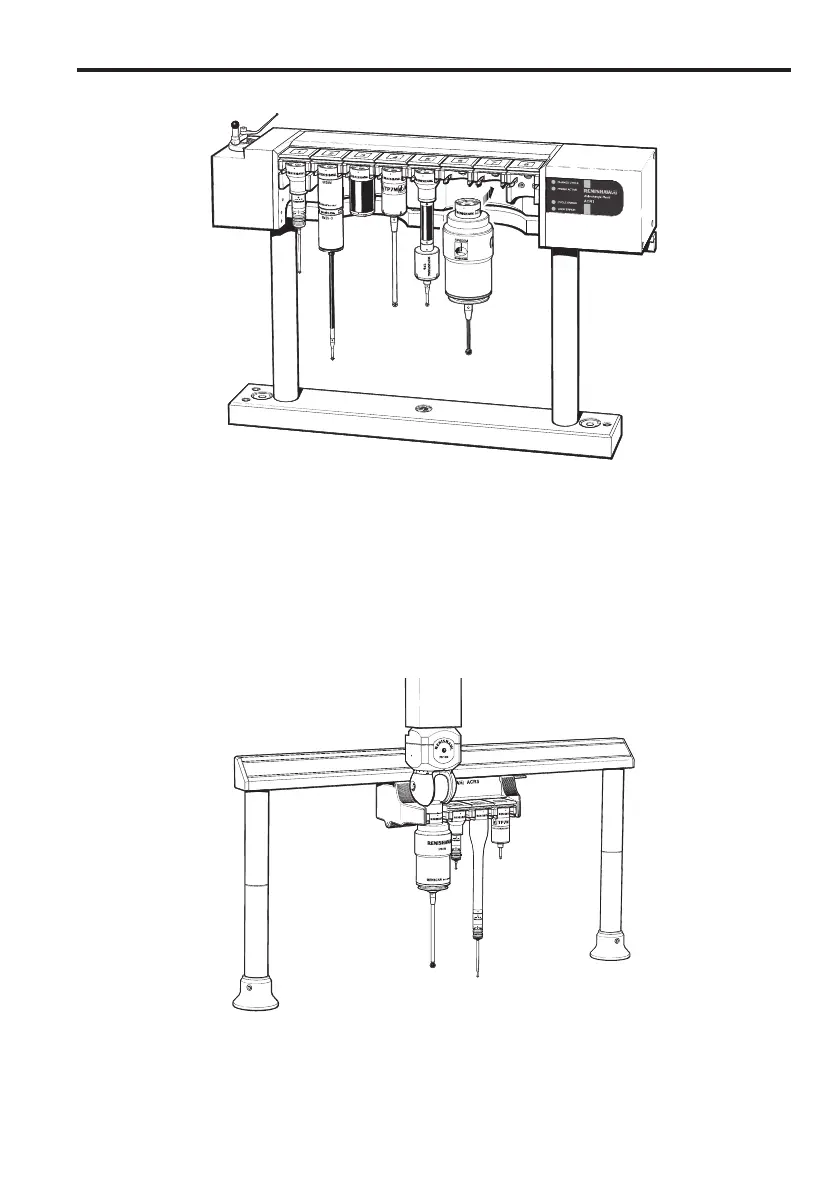

Figure 18 - ACR1 autochange rack
Fast ‘probing to probing’ cycles are achieved by the head docking one probe and
selecting another. Once calibrated the highly repeatable autojoint removes the need to
requalify after each exchange.
ACR1 is a fully integrated autochange system with eight ports. The ACR1 can be
mounted vertically and has the ability to change probes from the end of extension bars.
ACR3 is a passive modular autochange rack with four ports and is driven by the motion
of the CMM. Two ACR3s can be linked to provide an eight port system. The ACR3 is
mounted on the horizontal Renishaw MRS (modular rail system).
Figure 19 - ACR3 autochange rack
