21
System description
2.9 HCU1 hand control unit
The HCU1 hand control unit shown in figure 7 is an optional control which enables
the system to be used in manual mode or in a teach cycle. A LCD dot matrix display
provides information on system status.

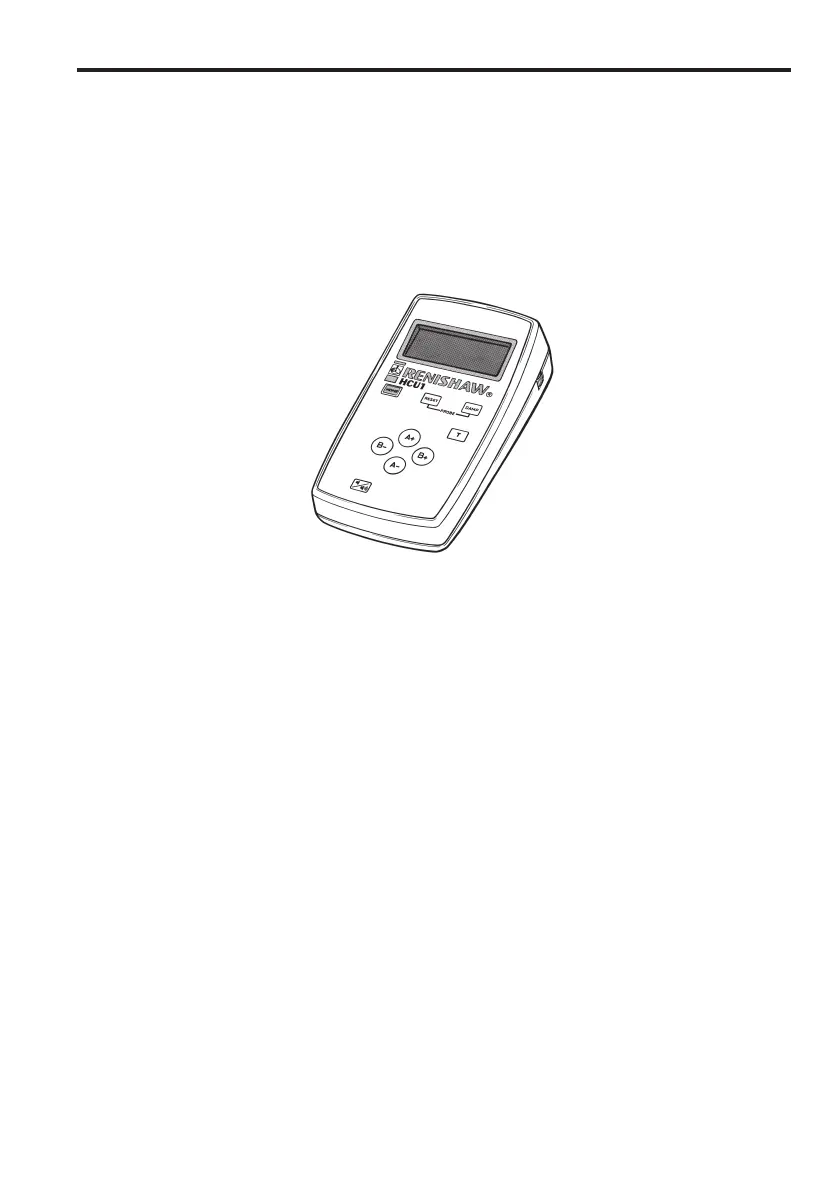

Figure 7 - HCU1
