System description

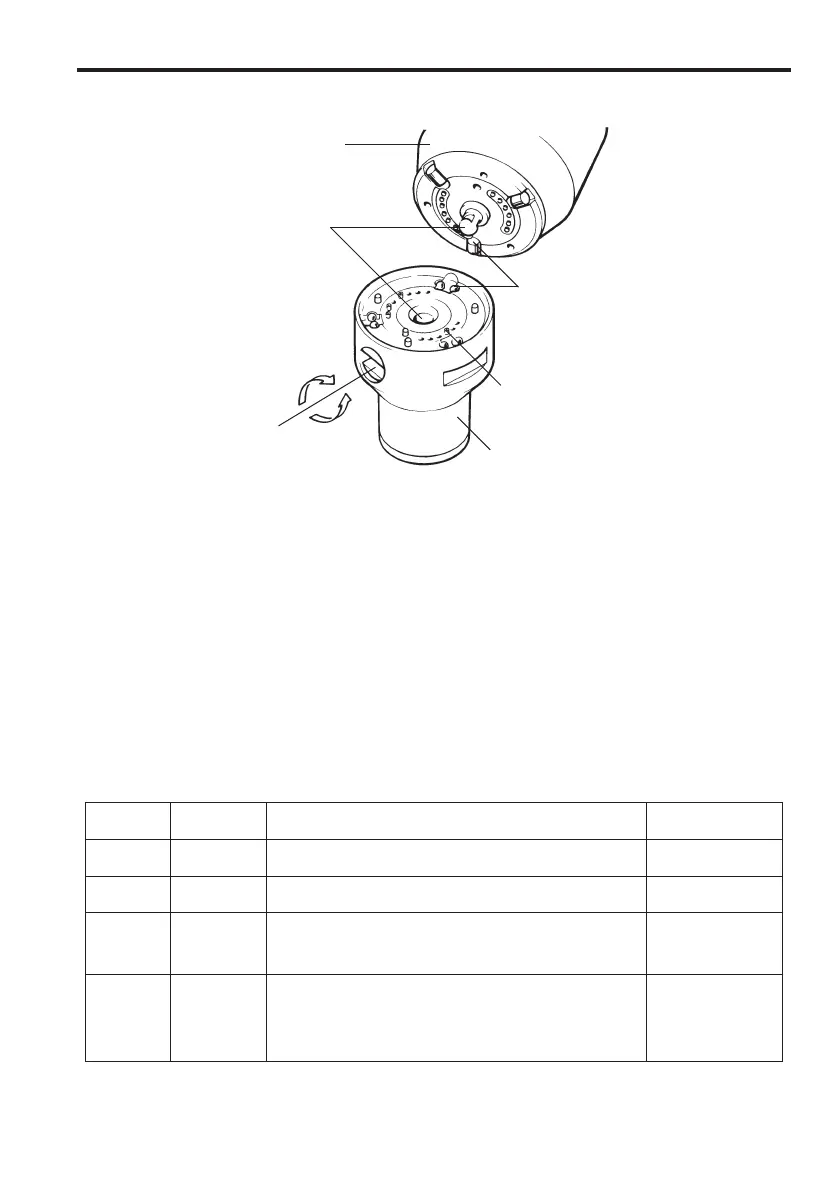

Figure 11 - Autojoint connection
Head or
extension bar
Clamping
mechanism
Lock/unlock
screw
PAA1 adaptor
Electrical contacts
Kinematic location
2.12 Probes
2.12.1 M8 touch-trigger probes
This range of probes (see table 4) utilises the M8 bush as a mounting for the head.
These can be fitted directly onto the PH10T head, but when used with the PH10M or
PH10MQ heads, one of the autojoint to M8 bush extension bars or the PAA1 adaptor
must be used (see figure 8 and 9).
Table 4 - M8 touch trigger probes
Probe Diameter Application User’s guide
TP2-5W 13 mm Universal probe for DCC and manual CMMs H-1000-5021
TP6* 25 mm Universal probe for DCC and manual CMMs H-1000-5021
TP20 13.2 mm Universal probe for DCC and manual CMMs
with module changing
H-1000-5008
TP200 13.2 mm Universal probe with strain gauges for
DCC CMMs. Up to 100 mm stylus carrying
capability
H-1000-5014
* Anautojointversion(TP6A)isalsoavailable.
