Accessories
The AM2 adjustment module shown in figure 14 is designed for use with the PH10MQ.
Both modules enable adjustment in pitch, roll and yaw and allow accurate alignment
with machine quill or workpiece.
The AM1 offers a quick release mechanism for rapid head exchange, and features
inbuilt overtravel protection.
For further information on the AM1, please refer to the AM1 user’s guide (Renishaw
part number H-1000-4010). For further information on the AM2, please refer to the
AM2 product information sheet (Renishaw part number H-1000-2051).
Ya w
Pitch
Roll

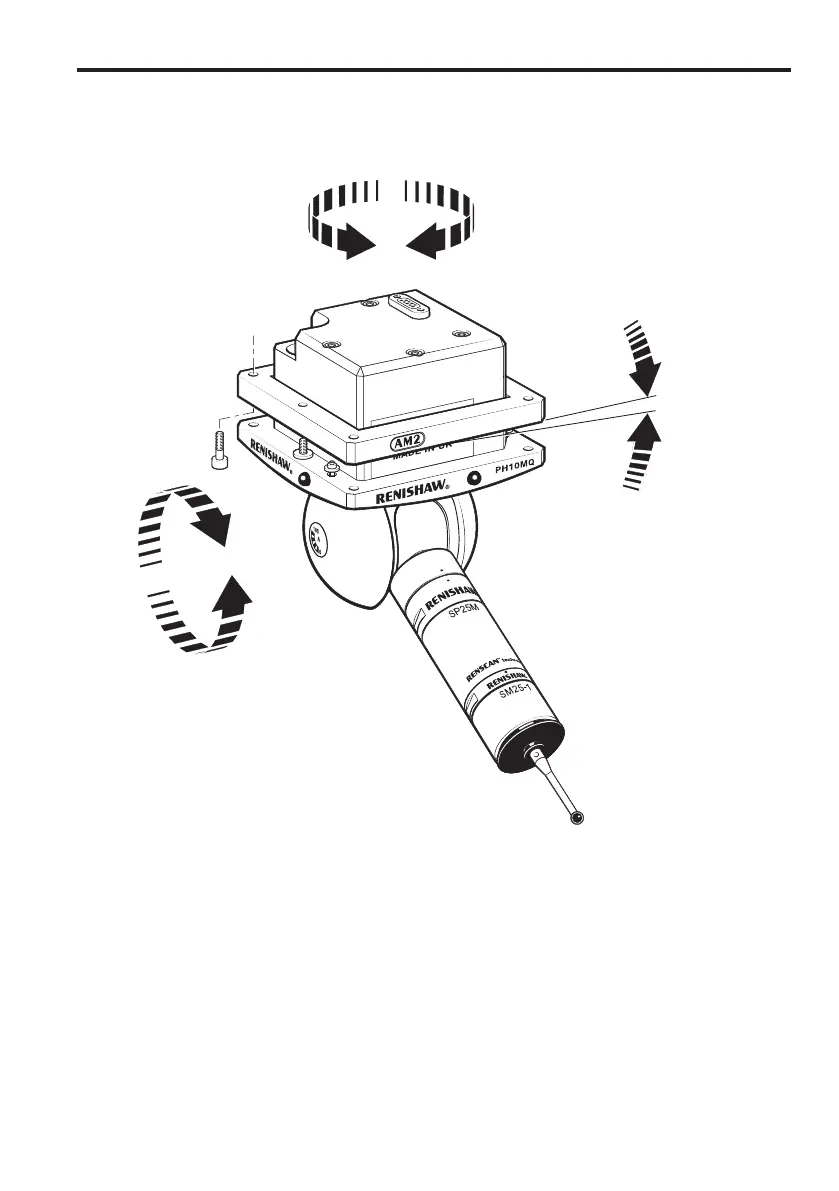

Figure 14 - AM2 adjustment module
