Renishaw PH10 Series User Manual

23
System description
Figure 9 shows the range of extensions, probes and styli which can be used in
conjunction with the PH10M and PH10MQ heads.
* WhenusingaPH10MQwithSP600MaPEM25extensionbarisrequiredtoachieve
A = 97.5° or A = 105° in all B-axis positions.
** TP20,TP200andSP25Mareonlyshownwithonemodule.Othermodulesare
also available. For further details refer to the necessary user’s guides, H-1000-5008,
H-1000-5014 and H-1000-5104 respectively.

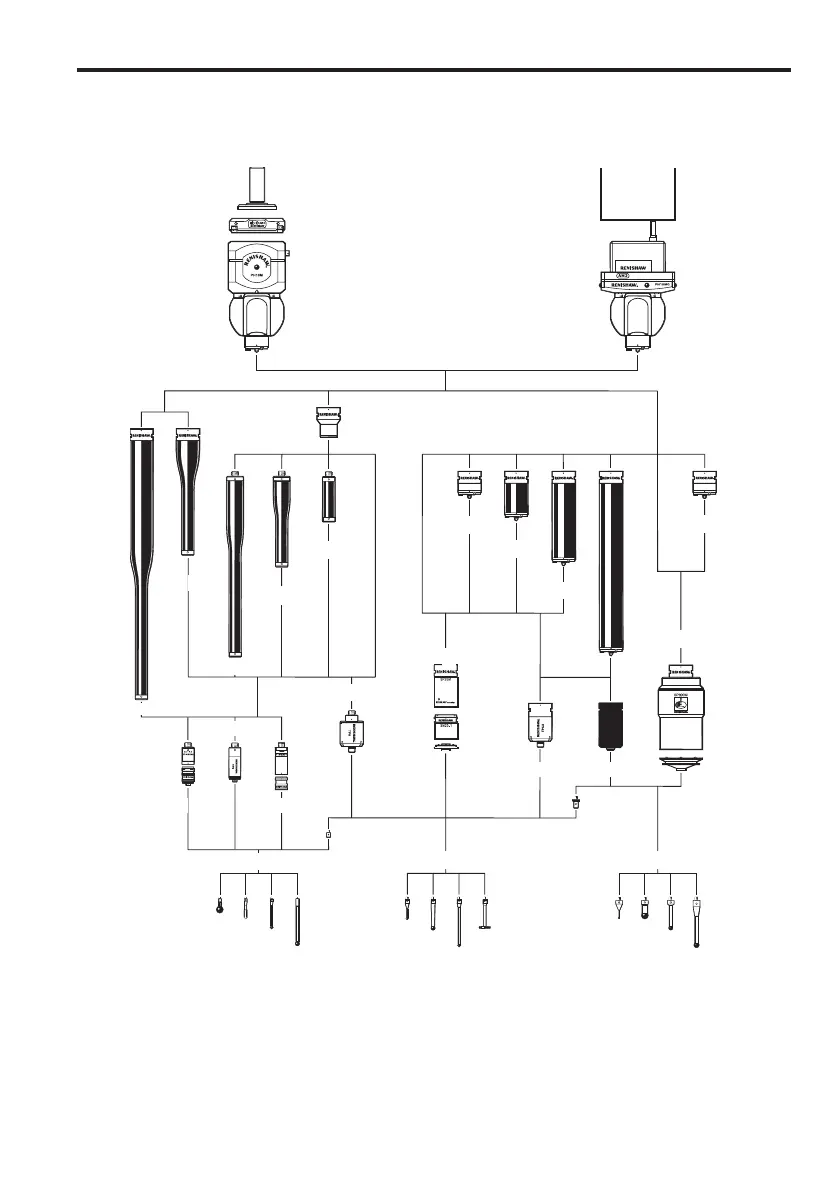

Figure 9 - Extensions, probes and styli
Shank
Quill
PH10M
AM2
PH10MQ
AM1
PAA1
PEL3
PEL1
PEL2
PAA3
PAA2
PEM25*
PEM1
PEM2
PEM3
PEM25
TP20**
TP2-5W
TP200**
TP6
SP25M**
TP6A TP7M
SP600M*
M4 thread styli
M3 thread styli
M2 thread styli
