Renogy REGO Quick Guide

— 9 —

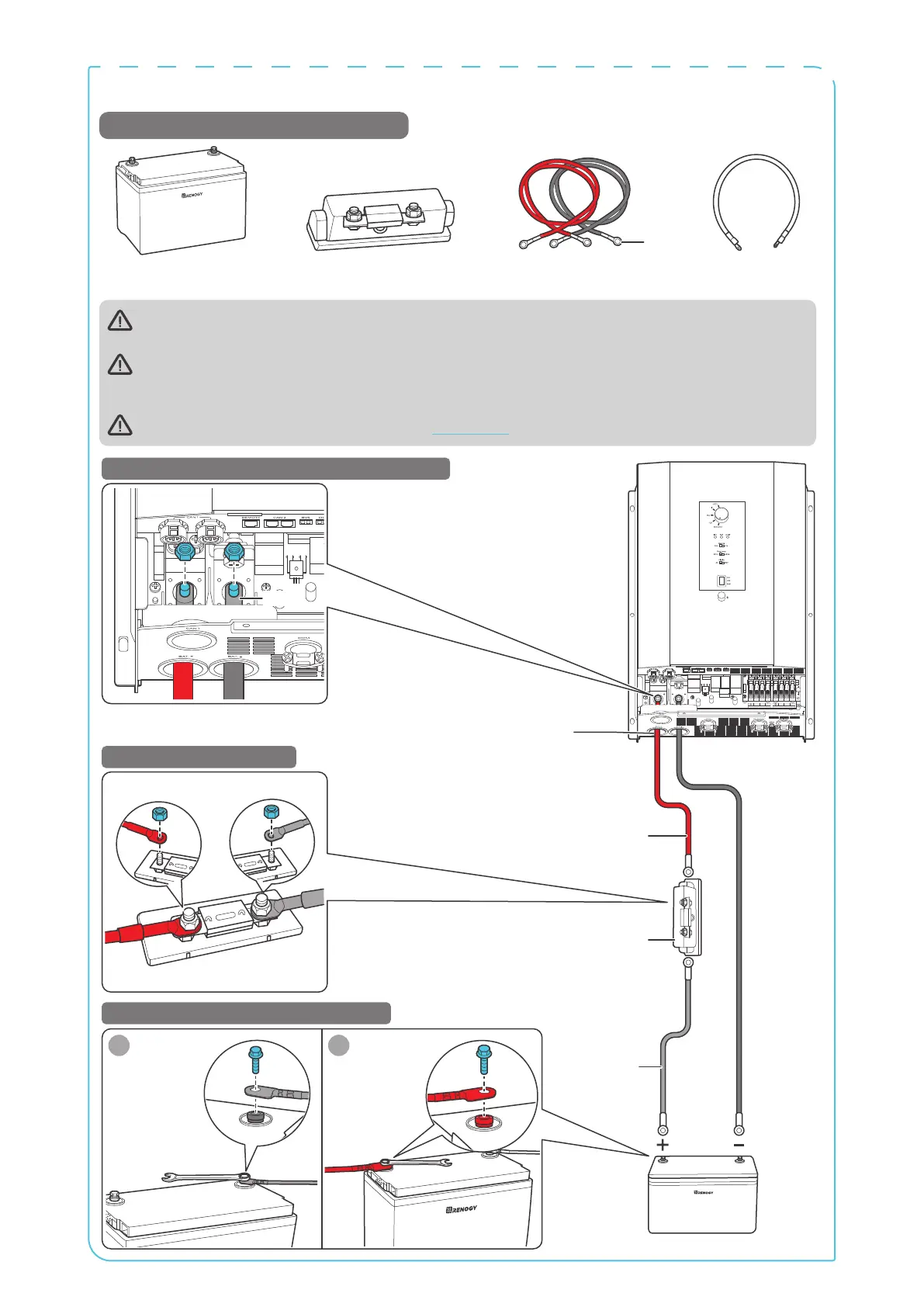

Battery Scenario B: Normal Battery Kit
Recommended Components & Accessories
+
-
*ANL Fuse (400A)
Fuse Cable
(4/0 AWG)
*12V Battery
Battery Adapter Cables
(4/0 AWG) × 2
M8
For details on how to connect the inverter charger to the battery, read the user manual of the specific
battery.
The inverter charger can only be connected to deep-cycle gel-sealed lead-acid batteries (GEL),
flooded lead-acid batteries (FLD), sealed lead-acid batteries (SLD/AGM) or lithium iron phosphate
batteries (LI).
Accessories marked with “*” are available on renogy.com.
N L2
AC OUT
L1 N L2
AC IN
L1
BAT-
BAT+
STEP-1 Install the Cables on the Inverter Charger
STEP-2 Install an ANL Fuse
+
-
12V Battery
Through the grommet of the
Battery Positive Port and Battery Negative Port
Battery
Adapter
Cables
Fuse
Cable
ANL
Fuse
(400A)
-
+
1
2
12
+
-
+
-
1 2
STEP-3 Install the Cables on the Battery
N L2
AC OUT
L1 N L2
AC IN
L1
BAT-
BAT+
M8

Renogy REGO Specifications

General

Output Voltage	12V/24V
Output Current	20A
Charging Algorithm	Multi-stage (Bulk, Absorption, Float)
Battery Compatibility	Flooded, Lithium
Operating Temperature	-20°C to 50°C
Protection	Over-voltage, Short-circuit, Reverse polarity
Communication	Bluetooth
Cooling Method	Fan
