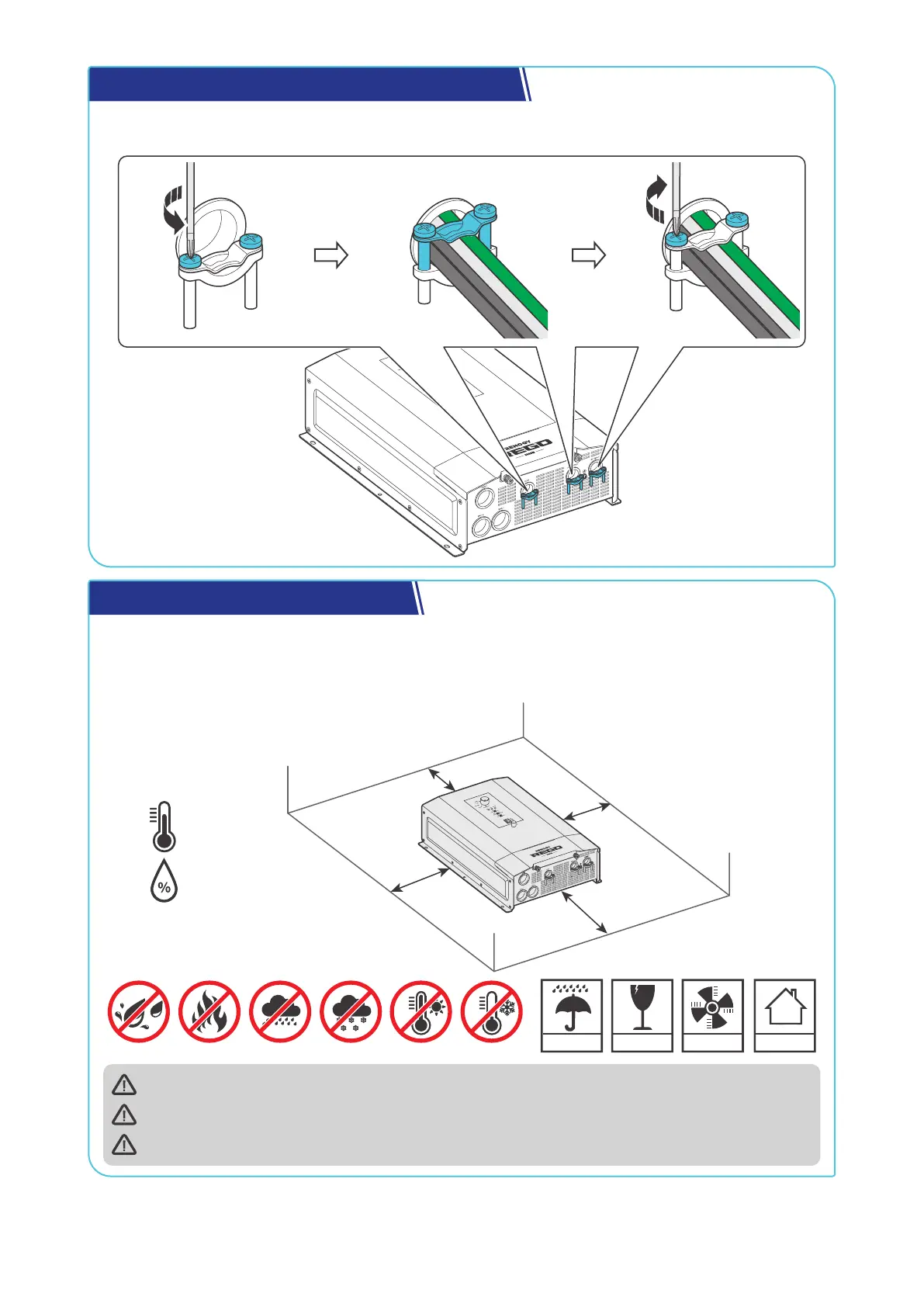

How to Properly Install Cable Clamps?
The AC Input Port, AC Output Port, and COM Port are equipped with cable clamps to ensure that the wiring
connections remain secure and do not come loose due to vibrations.
Step 1. Plan a Mounting Site
The inverter charger requires adequate clearance for installation, wiring and ventilation. The minimum
clearance is provided below. Ventilation is highly recommended if it is mounted in an enclosure. Select a proper
mounting site to ensure the inverter charger can be safely connected to the battery, and grid/AC generator
with the relevant cables.
KEEP DRY FRAGILE
VENTILATION
-4°F to 140°F
-20°C to 60°C
0% to 95%
INDOOR
7 in
[178 mm]
7 in
[178 mm]
10 in
[254 mm]
10 in
[254 mm]
The inverter charger should be installed on a vertical surface protected from direct sunlight.
The inverter charger cannot operate at full load in ambient temperatures above 113°F (45°C).
The inverter charger can be mounted either on a floor or on a wall.
