Renogy REGO Quick Guide

— 2 —
Get to Know REGO 12V 3000W HF Inverter Charger
█

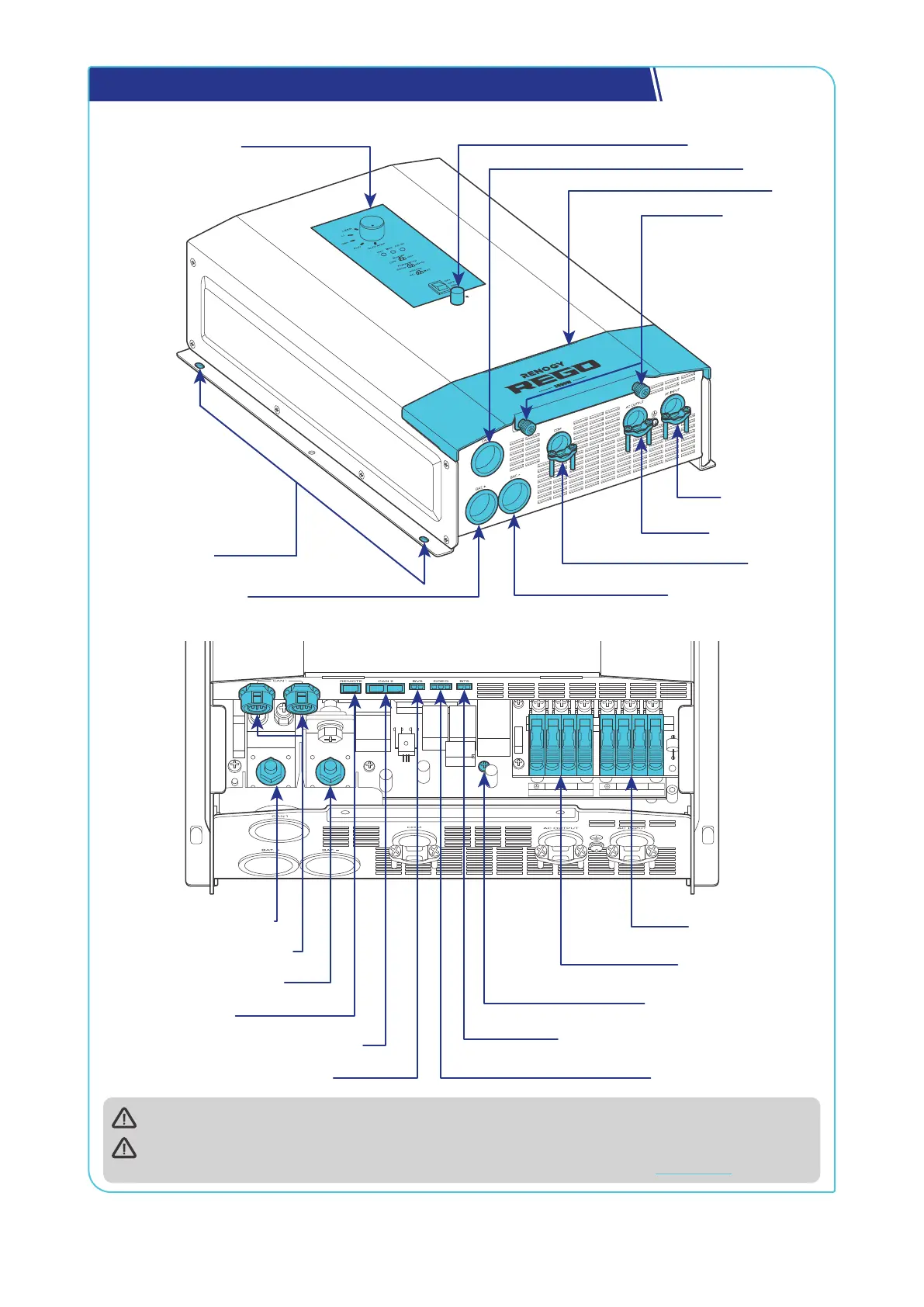

Exterior
Bluetooth Antenna
Configuration Panel
Cover
AC Input Port
AC Output Port
COM Port
Cover Screws
Mounting Holes
Battery Positive Port
Battery Negative Port
CAN1 Port
█
Interior (with the cover removed)
N L2
AC OUT
L1 N L2
AC IN
L1
Battery Positive Terminal
Battery Negative Terminal
Wired Remote Port
AC Input Terminals
AC Output Terminals
Battery Temperature Sensor (BTS) Port
Dry Contact Port (DRED)
N-G Bonding Relay Screw
CAN1 Communication Ports
CAN2 Communication Ports (reserved)
Battery Voltage Sensor (BVS) Port
The BTS port can only be used with lead-acid batteries.
To Dry Contact Port (DRED) enables the inverter to automatically initiate and stop the AC generator as
needed. For detailed instructions, please refer to the user manual available on renogy.com.

Renogy REGO Specifications

General

Output Voltage	12V/24V
Output Current	20A
Charging Algorithm	Multi-stage (Bulk, Absorption, Float)
Battery Compatibility	Flooded, Lithium
Operating Temperature	-20°C to 50°C
Protection	Over-voltage, Short-circuit, Reverse polarity
Communication	Bluetooth
Cooling Method	Fan
