Response Alarms SA3 - Jamming Detection Configuration; Signalling Relay Contacts; Zone Operating Modes

25
JAMMING DETECTION
This allows the Control Panel’s anti-jamming detection
facility to be switched ON or OFF as required. If
enabled, the system will continuously scan for radio
jamming signals on the system’s operating frequency
and trigger an alarm if jamming is detected.
Default setting: OFF (disabled)

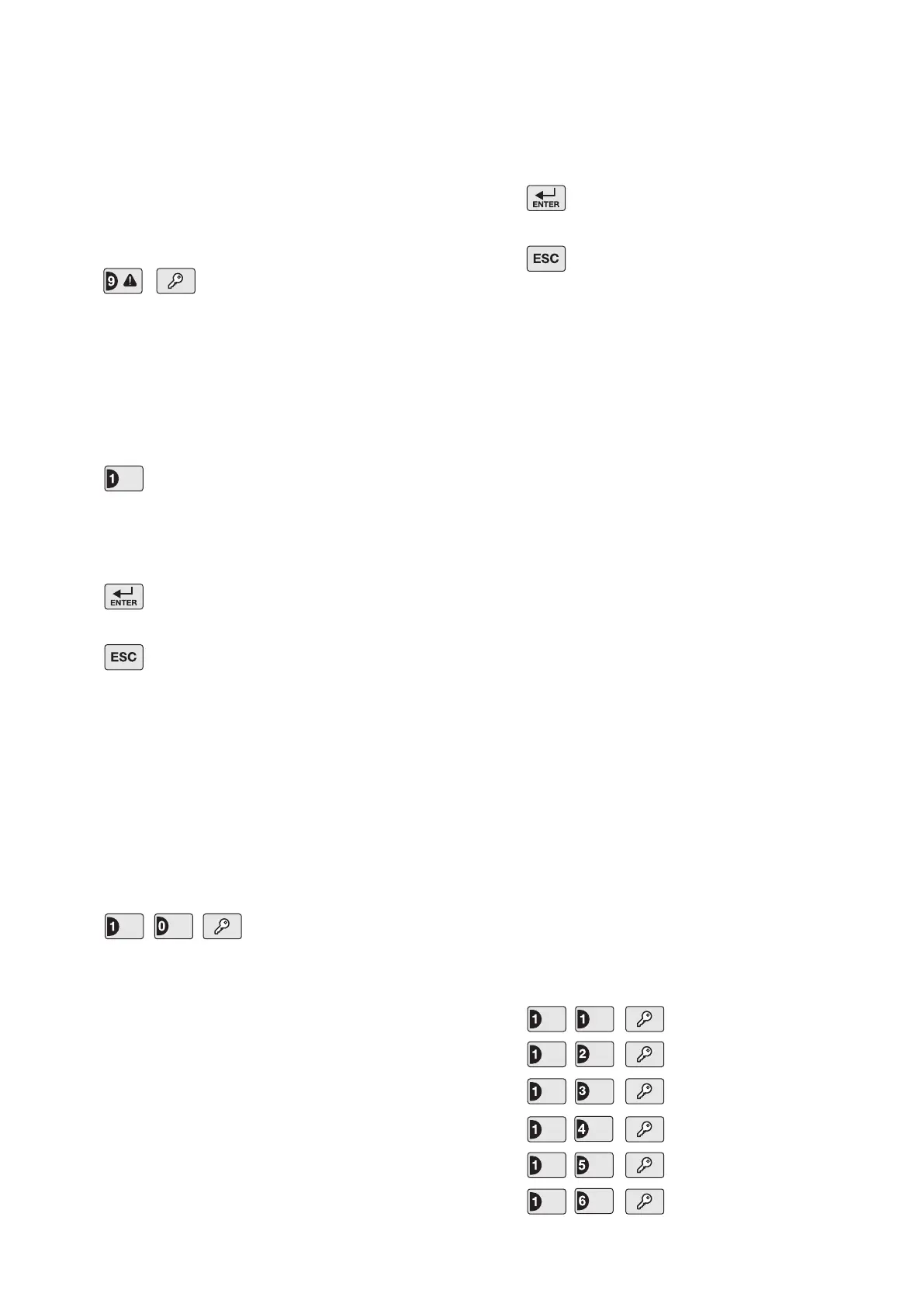

Press ,
The zone 1 LED will illuminate to indicate the current
Jamming Detector status.
LED ON Jamming Detection enabled
LED OFF Jamming Detection disabled
To change the setting:
Press .
The jamming detection status will switch to the
opposite state (enabled/disabled) each time the button
is pressed.
Press to save the new setting and exit to
program mode, or
Press to exit without saving.
Note: The jamming detection program setting will only
control the jamming detection feature in the Control
Panel. The jamming detection function incorporated in
the Siren operates independently.
SIGNALLING RELAY CONTACTS
This setting controls the operation period of the
Switching Relay Contacts following an alarm.
Default setting: equal to Alarm Duration
Press ,
The zone LED corresponding to the current setting will
illuminate.
1 2 seconds
2 30 seconds
3 1 minute
4 3 minutes
5 5 minutes
6 equal to Alarm Duration Period
To change the setting:
Press the key corresponding to the required activation
period, the corresponding zone LED will illuminate as
the setting is changed.
Press to save the new setting and exit to
program mode, or
Press to exit without saving.
ZONE OPERATING MODES
Each alarm zone may be programmed to operate in
one of ve different modes dependant upon the type of
alarm function it is required to perform.
Personal Attack - used to provide 24 hour monitoring
of any Personal Attack (PA) switches tted to the
system. Activation of any PA switch will immediately
trigger an Alarm.
Intruder - provides standard intruder monitoring with
normal Arm and Part-Arm functions.
24 Hour Intruder - used to provide 24 hour monitoring
of areas requiring continuous security protection even
while the system is Disarmed, (e.g. gun lockers).
Activation of any detector on a security zone will
immediately trigger an Alarm.
Fire - use to provide 24 hour monitoring of any Fire/
Smoke detectors tted to the system. Activation of any
detector will immediately trigger an Alarm.
Test - when the system is armed, any detector on
the zone will cause the appropriate zone LED on the
Control Panel to ash without triggering an Alarm.
Important: Personal Attack, 24 Hour Intruder and
Fire modes all operate on a 24 hour basis, (i.e. they
are able to trigger an Alarm at any time irrespective of
whether the system is Armed or Disarmed).
Default setting: all zones mode 2 (Intruder).
Press , to congure zone 1
Press , to congure zone 2
Press , to congure zone 3
Press , to congure zone 4
Press , to congure zone 5
Press , to congure zone 6
