PLANNING AND EXTENDING YOUR ALARM SYSTEM
Before attempting to install your Alarm System it is
important to study your security requirements and plan
your installation accordingly.
PIR Movement Detectors are used to protect the main
areas of the property, (e.g. lounge, study, hallway and
landing). Magnetic Contact Detectors are typically used
to protect the main access points to the property, (e.g.
front door, back door, patio doors etc). However, they
can also be used to protect other vulnerable doors/
windows or access doors to important rooms.
TYPICAL INSTALLATION

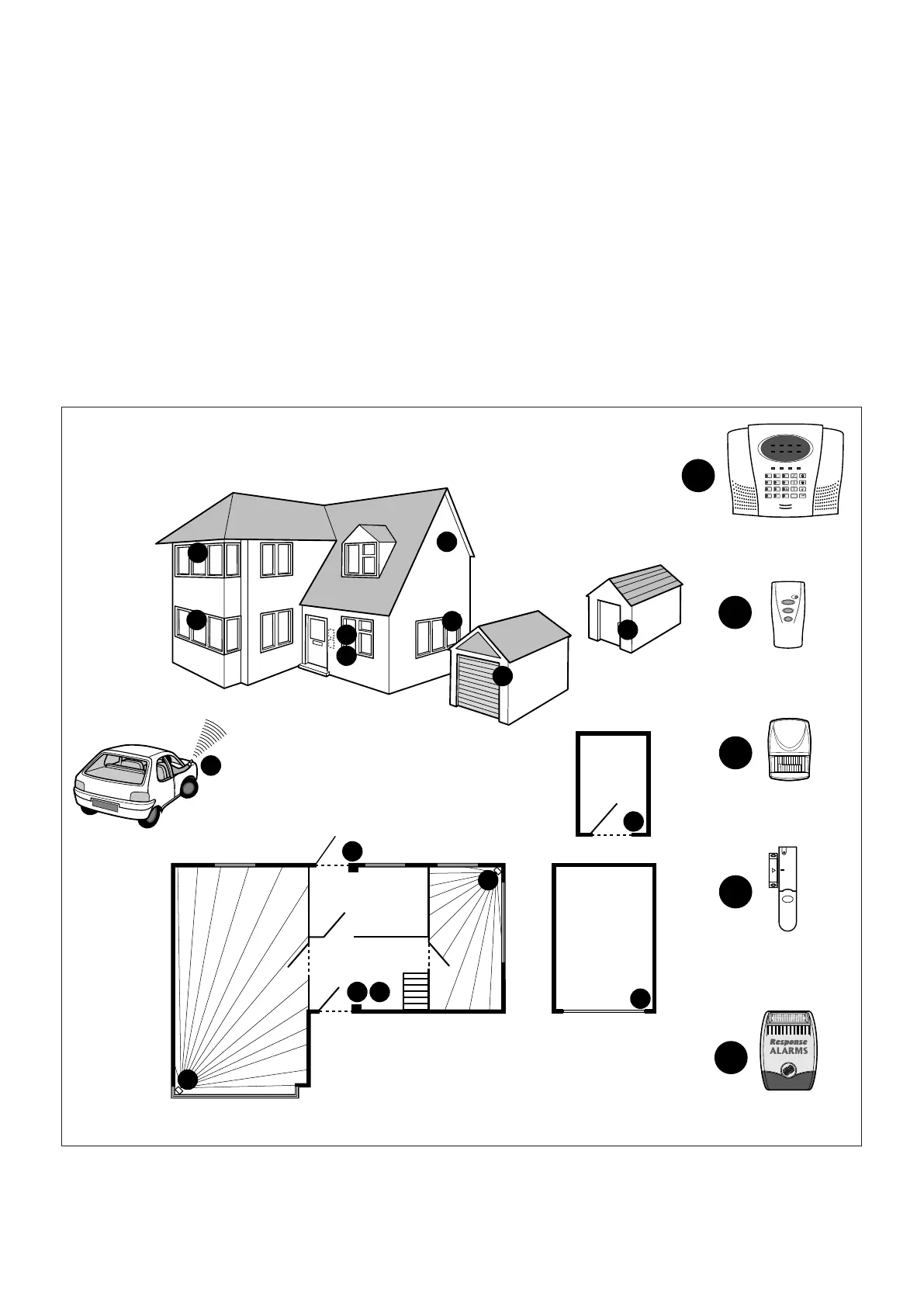

The following example below shows typical property
incorporating the suggested positions for the External
Siren, PIR and Magnetic Contact Detectors. Use this
as a guide for your installation in conjunction with the
detailed positioning requirements for each device
provided in the appropriate installation sections in this
manual for planning your intruder alarm system.
Magnetic
Contact
Detector
PIR Movement
Detector
Remote
Control
SHED
LOUNGE
GROUND FLOOR
GARAGE
KITCHEN
HALL
DINNING
ROOM
Back Door
External
Solar
Siren
LED Control Panel
To Next Page
