First Commissioning
19

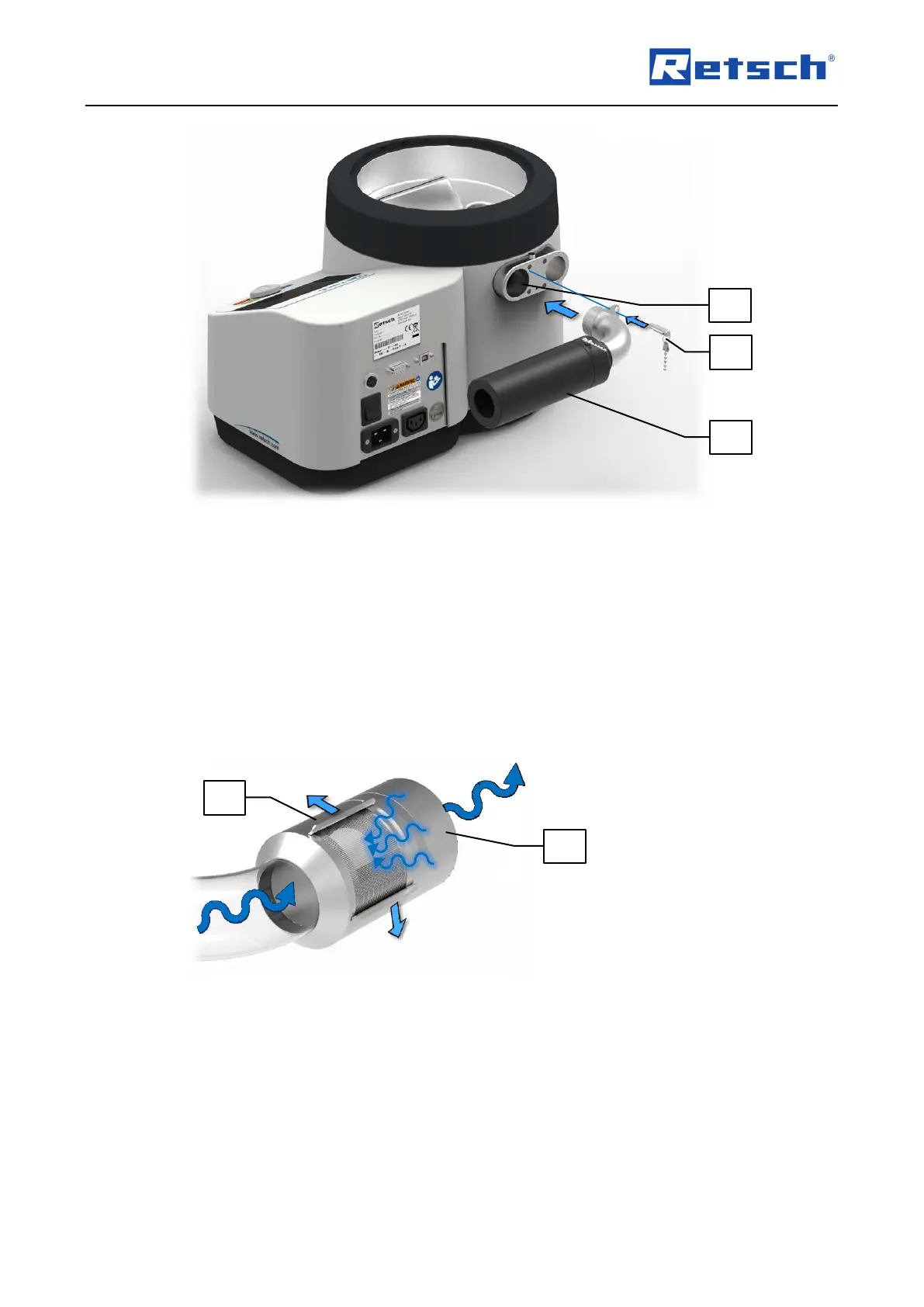

Fig. 3: Mounting the silencer
 Insert the silencer (F) into the air inlet duct (D).
 Insert the positioning pin (F1) into the upper opening to fix the silencer in a horizontal
position.
5.2 Manual Vacuum Regulation
The manual vacuum regulation (G) is contained in the scope of delivery. It allows for the
regulation of the negative pressure by means of a manually adjustable slider (G1).
Fig. 4: Functional principle of the manual vacuum regulation
D
G1
F1
G
F
